Schneider Electric NSYMM3045

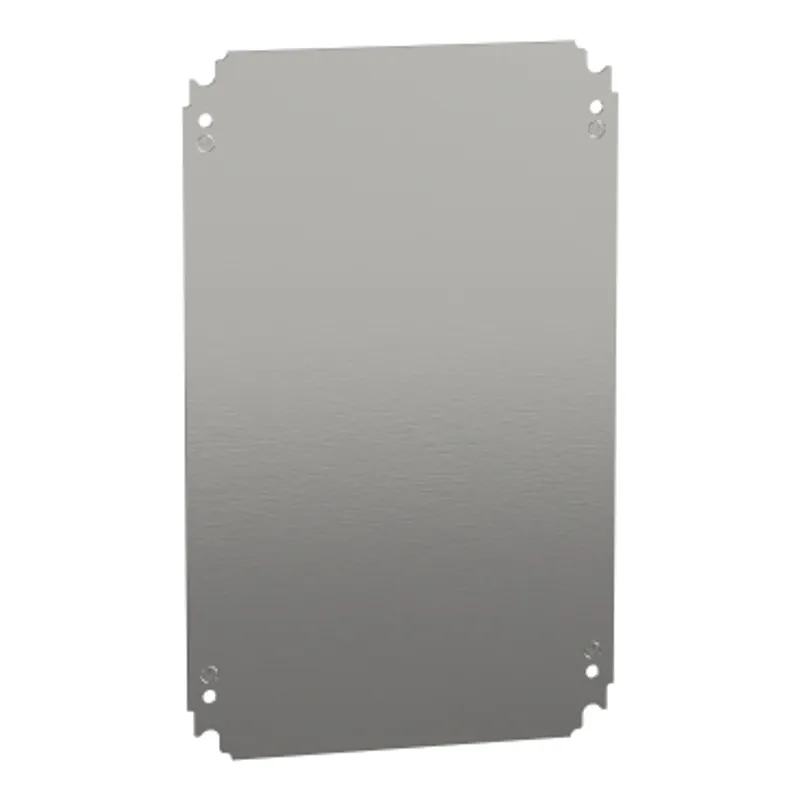

Plain mounting plate H300xW450mm made of galvanised sheet steel
- MPN
- NSYMM3045
- EAN
- 3606480183287
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMM3045?
Schneider Electric Plain mounting plate H300xW450mm made of galvanised sheet steel, manufacturer part number NSYMM3045. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 300 mm W: 450 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 60 kg |
| Height | 250 mm |
| Width | 400 mm |
| thickness | 1.8 mm |
| Net weight | 1.568 kg |
Packaging
| Package 1 | 1 PCE, 26.500 cm × 40.000 cm × 0.300 cm (L × W × H), 1.568 kg |
| Package 2 | 150 PAM, 120.000 cm × 100.000 cm × 20.000 cm (L × W × H), 248.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMM3045: frequently asked questions
When can NSYMM3045 be shipped?
NSYMM3045 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMM3045 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMM3045 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMM3045, subject to availability and destination.
