Schneider Electric NSYMM43

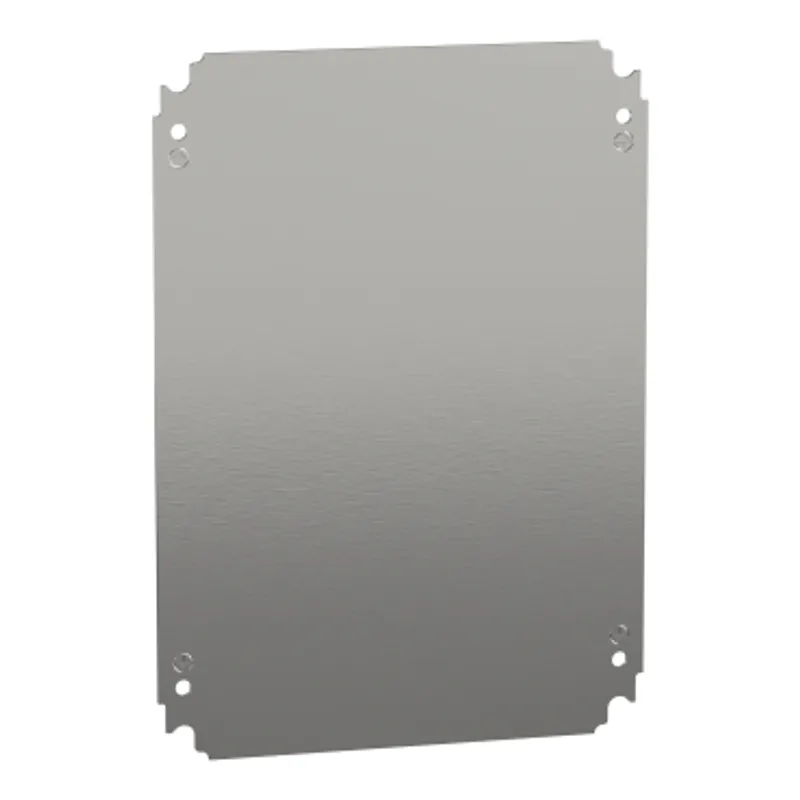

Plain mounting plate H400xW300mm made of galvanised sheet steel
- MPN
- NSYMM43
- EAN
- 3606480183331
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMM43?
Plain mounting plate for PanelSeT CRN, S3D and S3X, and PanelSeT PLM. Multi purpose accessory of dimensions 350 x 250 mm, suitable for enclosures 400 x 300 mm (height x width). Made in galvanized steel. It can withstand loads up to 250 kg/m2 in PanelSeT enclosures and 150 kg/m2 in PanelSeT PLM. Directly fixed on backstuds of the enclosure or on step slides (to be ordered separatelly). It can be installed turned 90 degrees. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 400 mm W: 300 mm, - H: 300 mm W: 400 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 60 kg |

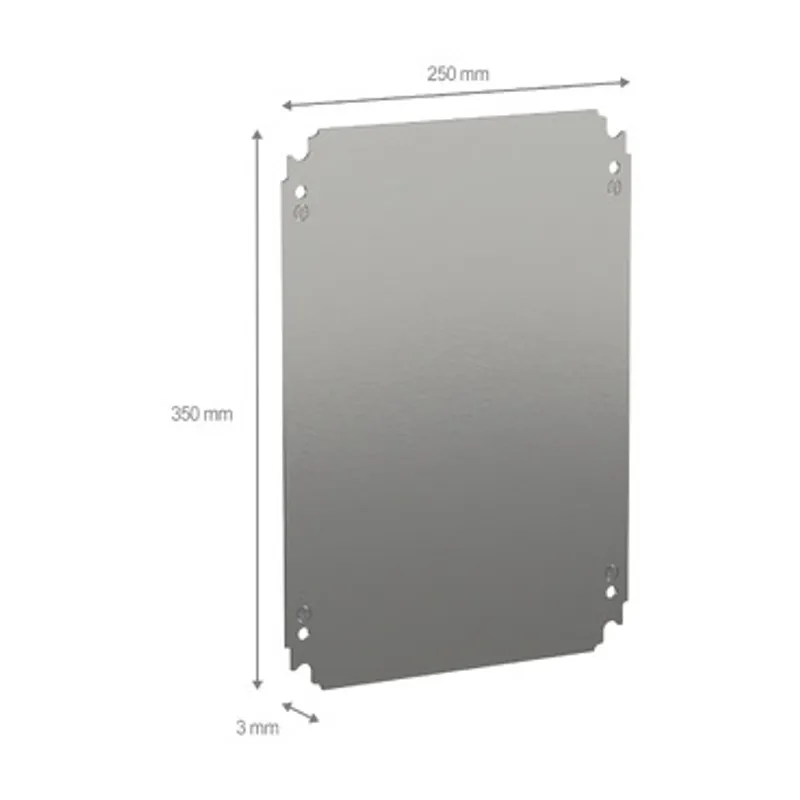

| Height | 350 mm |
| Width | 250 mm |
| thickness | 1.8 mm |
| Net weight | 1.28 kg |
| Variant particularity | Installation in enclosures with inverted dimensions |
Packaging
| Package 1 | 1 PCE, 35.000 cm × 25.000 cm × 0.400 cm (L × W × H), 1.280 kg |
| Package 2 | 280 P12, 120.000 cm × 80.000 cm × 37.000 cm (L × W × H), 383.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMM43: frequently asked questions
When can NSYMM43 be shipped?
NSYMM43 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMM43 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMM43 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMM43, subject to availability and destination.
