Schneider Electric NSYMM54

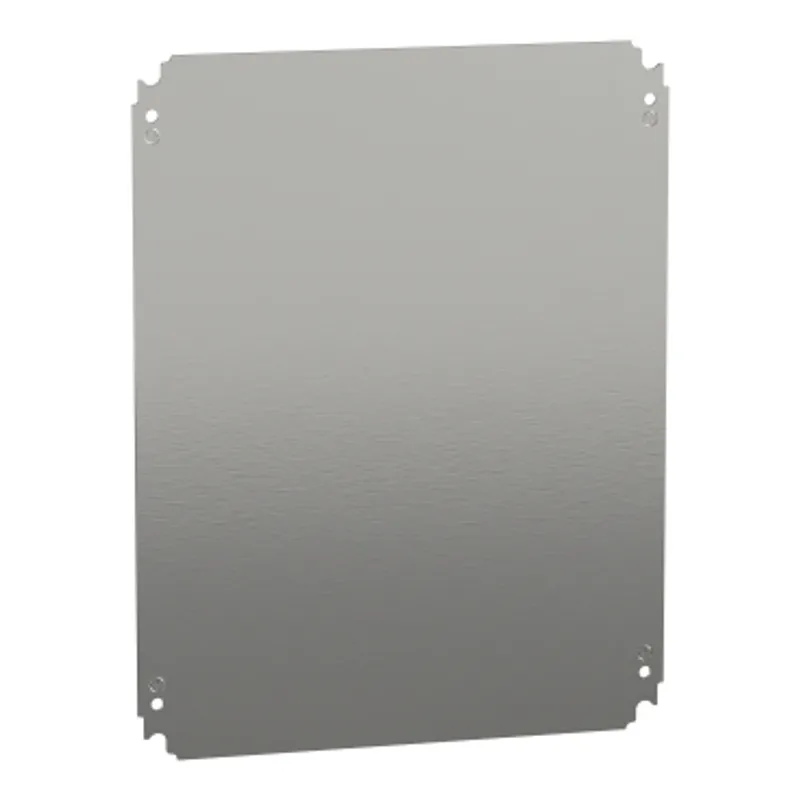

Plain mounting plate H500xW400mm made of galvanised sheet steel
- MPN
- NSYMM54
- EAN
- 3606480183362
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMM54?

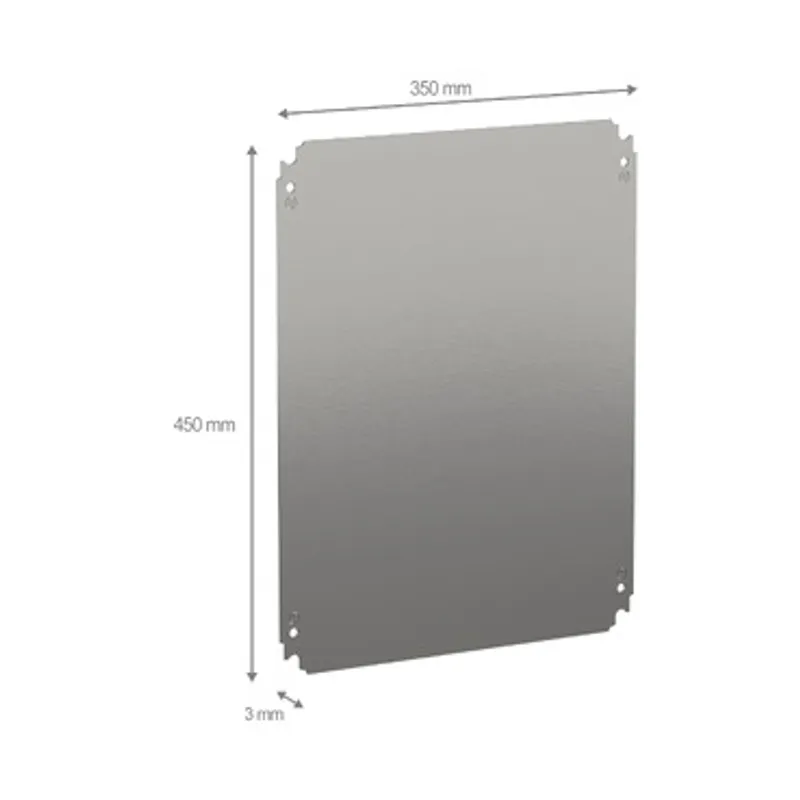

Plain mounting plate for PanelSeT CRN, S3D and S3X, and PanelSeT PLM. Multi purpose accessory of dimensions 450 x 350 mm, suitable for enclosures 500 x 400 mm (height x width). Made in galvanized steel. It can withstand loads up to 250 kg/m2 in PanelSeT enclosures and 150 kg/m2 in PanelSeT PLM. Directly fixed on backstuds of the enclosure or on step slides (to be ordered separatelly). It can be installed turned 90 degrees.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 500 mm W: 400 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 90 kg |
| Height | 450 mm |
| Width | 350 mm |
| thickness | 1.8 mm |
| Net weight | 2.27 kg |
Packaging
| Package 1 | 1 PCE, 45.500 cm × 35.000 cm × 0.200 cm (L × W × H), 2.300 kg |
| Package 2 | 140 P12, 120.000 cm × 80.000 cm × 37.000 cm (L × W × H), 345.000 kg |
