Schneider Electric NSYMM75

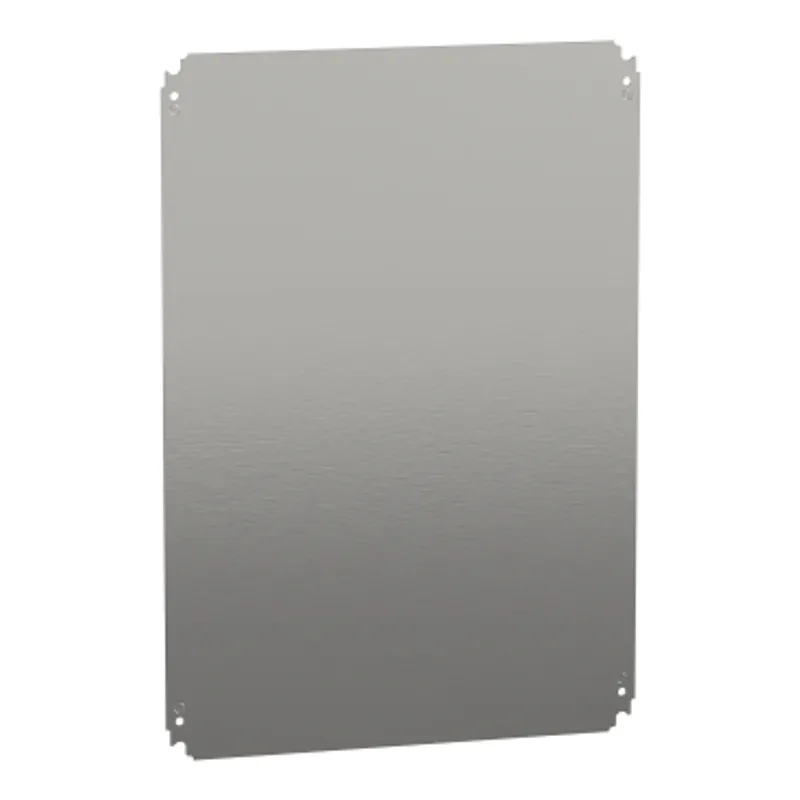

Plain mounting plate H700xW500mm made of galvanised sheet steel
- MPN
- NSYMM75
- EAN
- 3606480183416
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMM75?
Plain mounting plate for Spacial S3DC, S3DCD. For enclosures H is700 x W is500 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 135 Kg permissible load. Galvanised steel. White color. Set of 1. Only US market application.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 700 mm W: 500 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 135 kg |
| Height | 650 mm |
| Width | 450 mm |
| thickness | 1.8 mm |
| Net weight | 4.288 kg |
Packaging
| Package 1 | 1 PCE, 65.000 cm × 46.000 cm × 0.300 cm (L × W × H), 4.300 kg |
| Package 2 | 70 P12, 120.000 cm × 80.000 cm × 37.000 cm (L × W × H), 337.000 kg |
