Schneider Electric NSYMM76

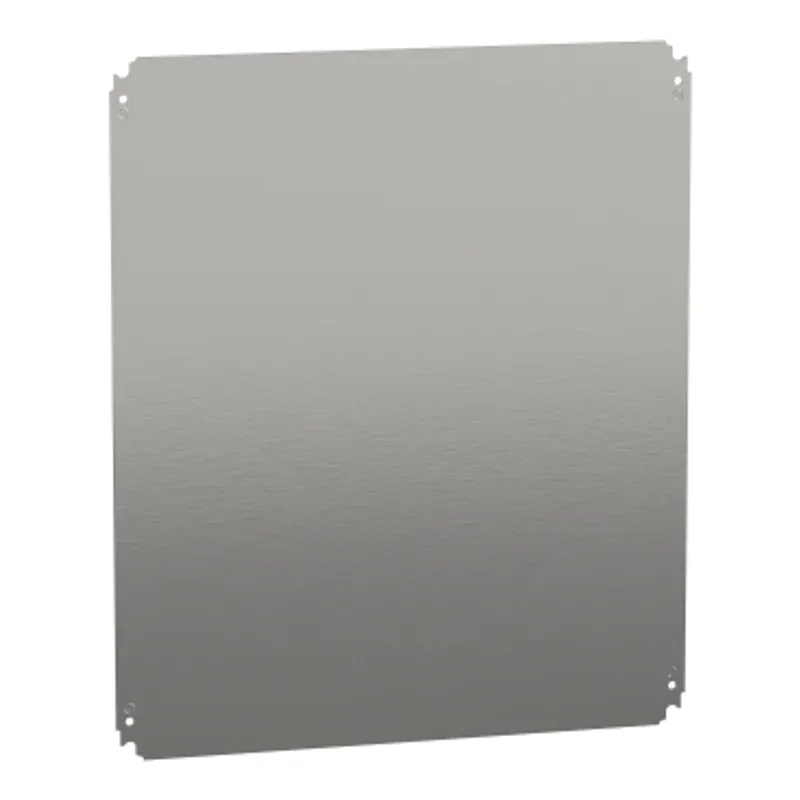

Plain mounting plate H700xW600mm made of galvanised sheet steel
- MPN
- NSYMM76
- EAN
- 3606480183423
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMM76?
Plain mounting plate for Spacial (CRN, S3D, S3X, PLM). 699 x 600 mm. Permanent permissible load 135 kg. Screwed on backstuds, screw type M8. Galvanised sheet steel.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 700 mm W: 600 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds - screw type M8, By fixing element |
| Permanent permissible load | 135 kg |

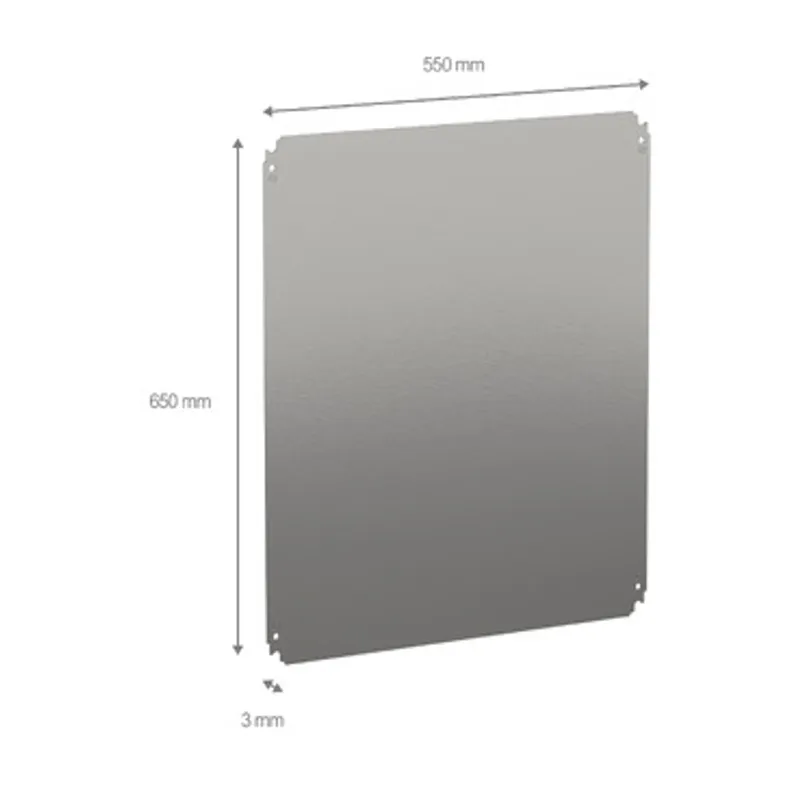

| Height | 650 mm |
| Width | 550 mm |
| thickness | 1.8 mm |
| Net weight | 5.033 kg |
Packaging
| Package 1 | 1 PCE, 56.000 cm × 65.500 cm × 0.300 cm (L × W × H), 4.904 kg |
| Package 2 | 50 PAM, 120.000 cm × 100.000 cm × 47.000 cm (L × W × H), 258.000 kg |
