Panel Receptacles Parts
Compare Panel Receptacles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Cable: Number of cores | Cable: Length | Mass |
|---|---|---|---|---|---|

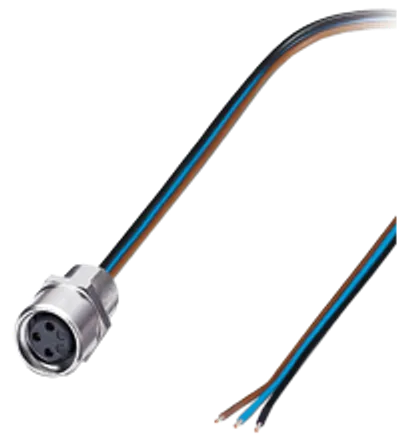

| V3-M8-1000 | 70187943 | max. 48 V AC / 60 V DC UB | 3 | 1000 mm L | 15 g |

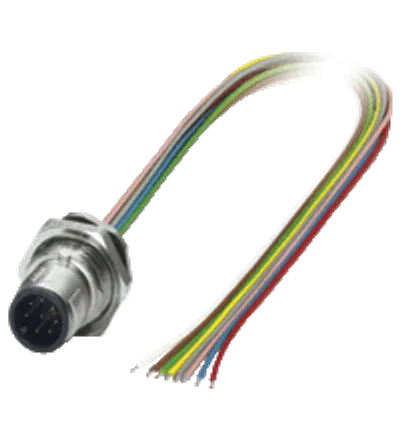

| V19S-M16-500 | 456938 | max. 30 V AC/DC UB | 8 | 500 mm L | 24 g |

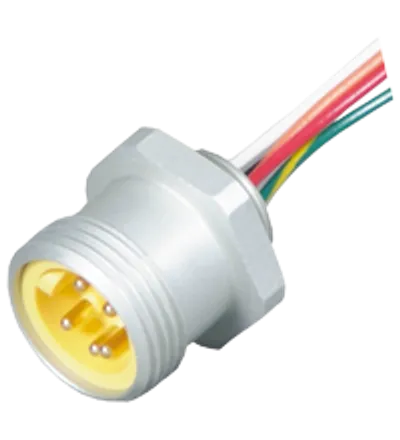

| M16-V95-G-S-.15M | 909308 | max. 300 V UB | — | 0.15 m L | — |

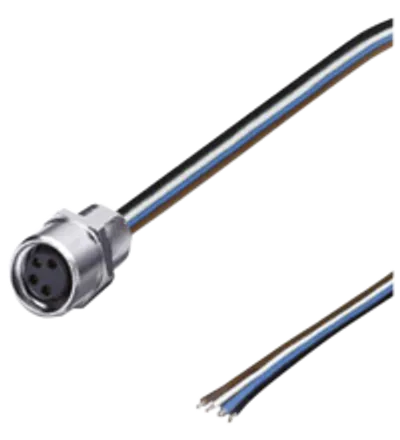

| V3-M8-500 | 226472 | max. 48 V AC / 60 V DC UB | 3 | 500 mm L | 12 g |

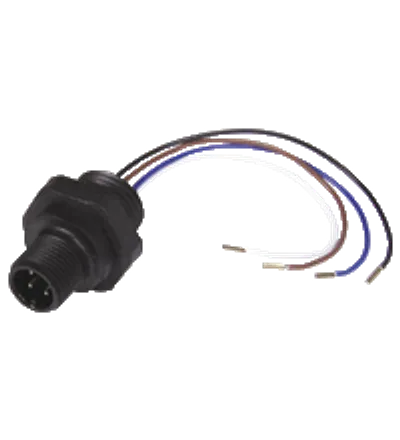

| V1S-K-PG9P-90 | 317057 | max. 250 V AC/DC UB | 4 | 80 mm L | 10.72 g |
| V1S-K-M16P-50 | 317056 | max. 250 V AC/DC UB | 4 | 50 mm L | 9.76 g |
| V19S-M16H-500 | 257472 | max. 30 V DC UB | 8 | 500 mm L | 28.9 g |

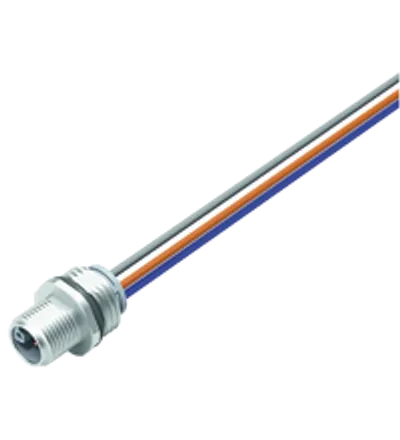

| V15SL-M16-500 | 322923 | — | 5 | 500 mm L | 54 g |

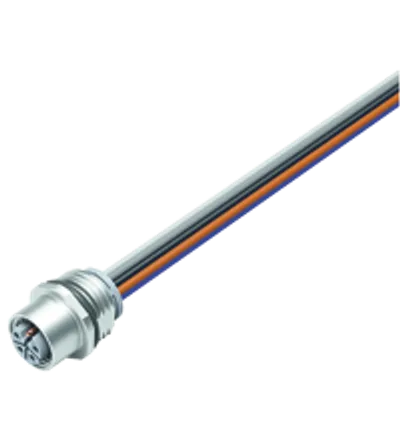

| V15L-M16-500 | 322924 | — | 5 | 500 m L | 42.76 g |

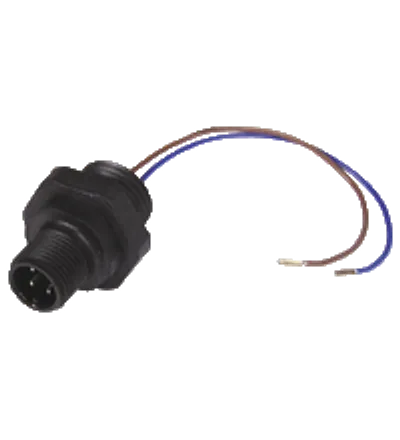

| V1S-K-PG13,5P-ASI | 70100836 | max. 240 V AC/DC UB | 2 | 250 mm L | 18.06 g |

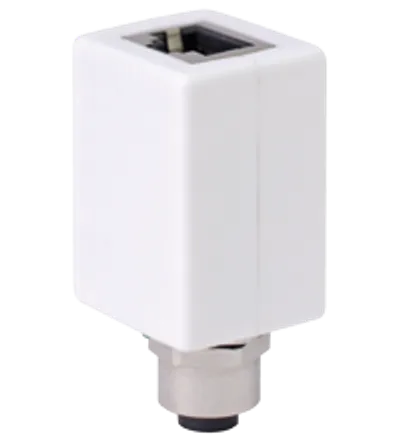

| V1D-M12H-V45-Y917140 | 917140 | max ... 42 V DC UB | — | — | 28.2 g |

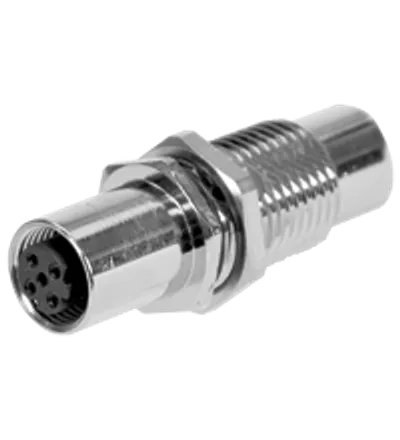

| V1D-M16-V1D | 917139 | max. ... 60 V DC UB | — | — | 41.3 g |

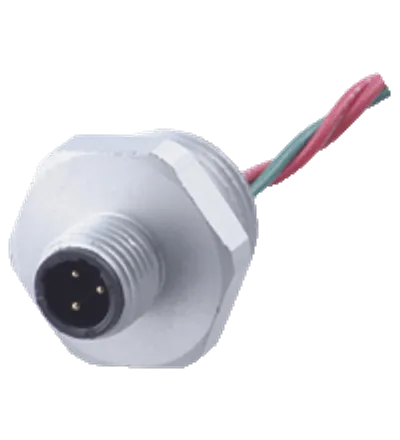

| 1/2" NPT-V12-G-S-.3M | 913289 | max. 300 V AC/DC UB | — | 0.3 m L | — |

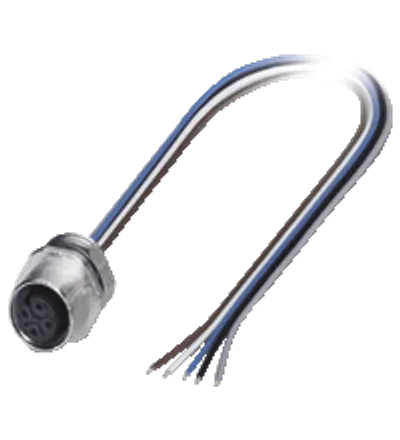

| V15-PG9-500 | 456935 | max. 60 V AC/DC UB | 5 | 500 mm L | 22.92 g |

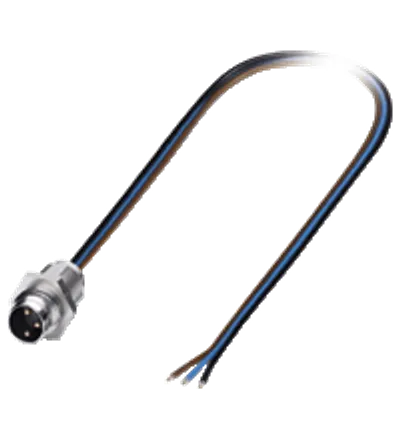

| V3S-M8-500 | 456943 | max. 48 V AC / 60 V DC UB | 3 | 500 mm L | 11.34 g |
| 1/2" NPT-V1-G-1M | 908650 | max. 300 V AC/DC UB | — | 1 m L | — |
| 1/2" NPT-V15-G-S-.15M | 904742 | max. 300 V AC/DC UB | — | 0.15 m L | — |
| 1/2" NPT-V1-G-S-1M | 913113 | max. 300 V AC/DC UB | — | 1 m L | — |
| 1/2" NPT-V1-G-.3M | 913114 | max. 300 V AC/DC UB | — | 0.3 m L | — |

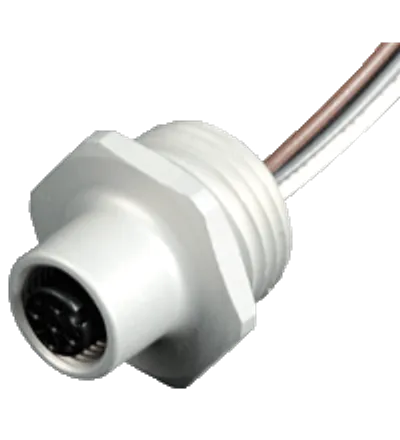

| 1/2" NPT-V15-G-.3M | 909188 | max. 300 V AC/DC UB | — | 0.3 m L | — |

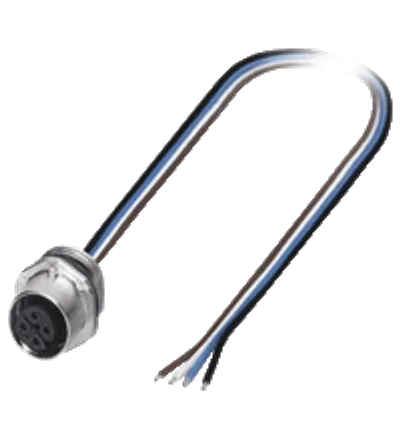

| V1-M16-500 | 226470 | max. 250 V AC/DC UB | 4 | 500 mm L | 18.11 g |
| V31-M8-500 | 456942 | max. 48 V AC / 60 V DC UB | 4 | 500 mm L | 15 g |

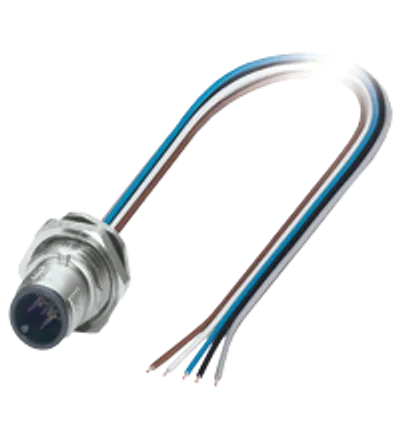

| V15S-M16H-500 | 257471 | max. 60 V DC UB | 5 | 500 mm L | 26.82 g |

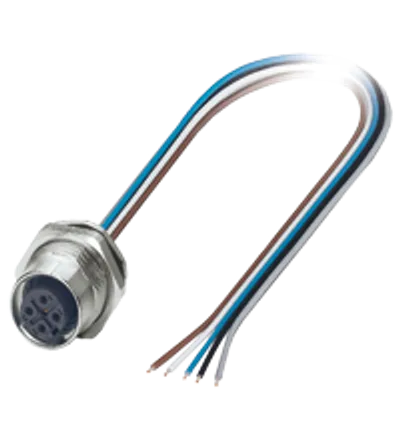

| V15-M16H-500 | 257468 | max. 60 V DC UB | 5 | 500 mm L | 25 g |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
