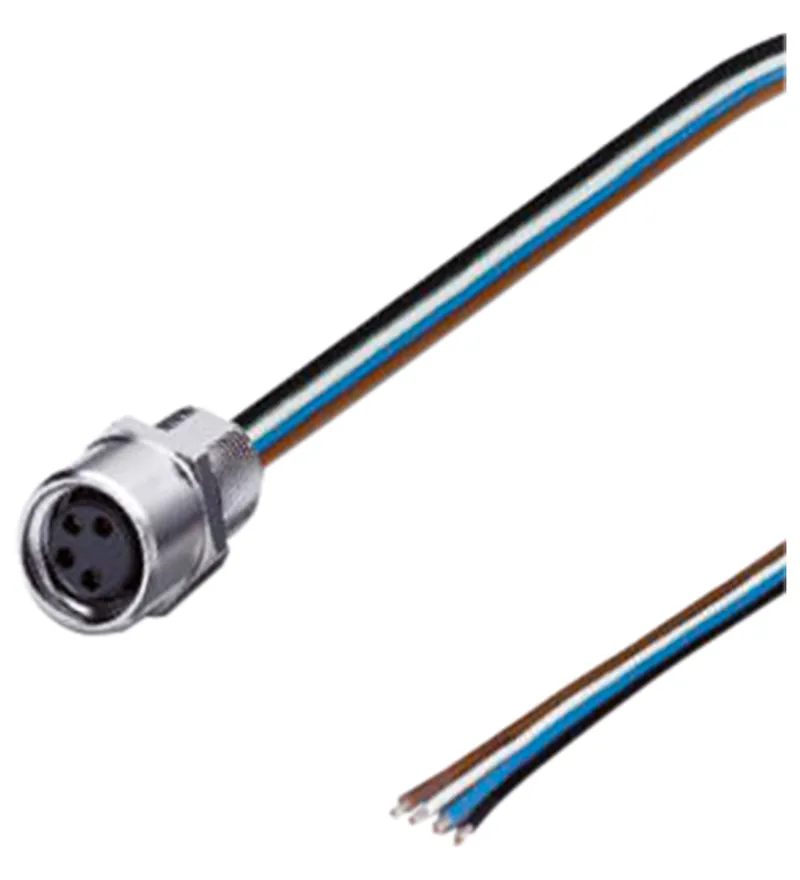

Pepperl Fuchs V3-M8-500
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Panel Receptacles |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V3-M8-500 be shipped?
V3-M8-500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V3-M8-500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V3-M8-500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V3-M8-500, subject to availability and destination.
Receptacles. 3-pin M8 receptacle. Connector 1: . ConnectionsocketConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Volume resistance: < 3 mΩ. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Flammability: IEC 60332-1-2. Halogen-free: IEC 60754-1. UL File Number: E191152. Ambient temperature: . Plug connector-25 ... 85 °C (-13 ... 185 °F)Cable, fixed installation-40 ... 105 °C (-40 ... 221 °F)Cable, flexing-10 ... 105 °C (14 ... 221 °F): . Plug connector: -25 ... 85 °C (-13 ... 185 °F). Cable, fixed installation: -40 ... 105 °C (-40 ... 221 °F). Cable, flexing: -10 ... 105 °C (14 ... 221 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Mating cycles: min. 100. Degree of protection: IP67. Connection: tinned copper single leads, ∅1.5 ±0.1 mm. Cable: . Number of cores3Core cross section0.25 mm2Cores colorCore 1: brown Core 3: blue Core 4: blackCore construction7 x 0.2 mm ∅ AWG 24LengthL500 mm: . Number of cores: 3. Core cross section: 0.25 mm2. Cores color: Core 1: brown Core 3: blue Core 4: black. Core construction: 7 x 0.2 mm ∅ AWG 24. Length: 500 mm. Installation: Front mounting M8 , tightening torque: 0.8 ... 1 Nm. Mass: 12 g. Halogen-free: yes. Plug connector: . Screw connectionbrass, nickel-platedSealFKMContact surfacegold plated (Au)FlammabilityHB: . Screw connection: brass, nickel-plated. Seal: FKM. Contact surface: gold plated (Au). Flammability: HB. Cable: . Core insulationPVC: . Core insulation: PVC. Scope of delivery: locknut not included
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded | Connection |
| Connection | socket |
| Construction type | M8 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 3 |
| Coding | A-coded |
| Connector 2 | |
| Connectioncable end | Connection |
| Connection | cable end |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
| Volume resistance | < 3 mΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 |
| Flammability | IEC 60332-1-2 |
| Halogen-free | IEC 60754-1 |
Approvals and certificates
| UL File Number | E191152 |
Ambient conditions
| Ambient temperature | |
| Plug connector-25 ... 85 °C (-13 ... 185 °F)Cable, fixed installation-40 ... 105 °C (-40 ... 221 °F)Cable, flexing-10 ... 105 °C (14 ... 221 °F) | Plug connector |
| Plug connector | -25 ... 85 °C (-13 ... 185 °F) |
| Cable, fixed installation | -40 ... 105 °C (-40 ... 221 °F) |
| Cable, flexing | -10 ... 105 °C (14 ... 221 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector | |
| Tightening torque0.4 NmMating cyclesmin. 100 | Tightening torque |
| Tightening torque | 0.4 Nm |
| Mating cycles | min. 100 |
| Degree of protection | IP67 |
| Connection | tinned copper single leads, ∅1.5 ±0.1 mm |
| Cable | |
| Number of cores3Core cross section0.25 mm2Cores colorCore 1: brown Core 3: blue Core 4: blackCore construction7 x 0.2 mm ∅ AWG 24LengthL500 mm | Number of cores |
| Number of cores | 3 |
| Core cross section | 0.25 mm2 |

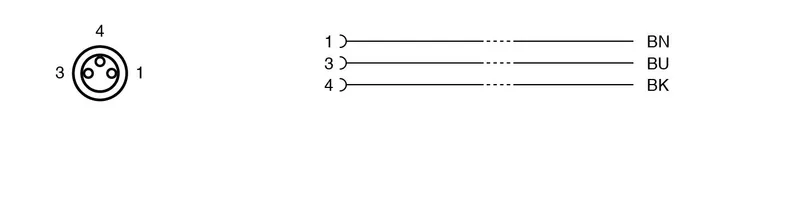

| Cores color | Core 1: brown Core 3: blue Core 4: black |
| Core construction | 7 x 0.2 mm ∅ AWG 24 |
| Length | 500 mm L |
| Installation | Front mounting M8 , tightening torque: 0.8 ... 1 Nm |
| Mass | 12 g |
Material
| Halogen-free | yes |
| Plug connector | |
| Screw connectionbrass, nickel-platedSealFKMContact surfacegold plated (Au)FlammabilityHB | Screw connection |
| Screw connection | brass, nickel-plated |
| Seal | FKM |
| Contact surface | gold plated (Au) |
| Flammability | HB |
| Cable | |
| Core insulationPVC | Core insulation |
| Core insulation | PVC |
General information
| Scope of delivery | locknut not included |
