Pepperl Fuchs V15SL-M16-500
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Panel Receptacles |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V15SL-M16-500 be shipped?
V15SL-M16-500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V15SL-M16-500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V15SL-M16-500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V15SL-M16-500, subject to availability and destination.

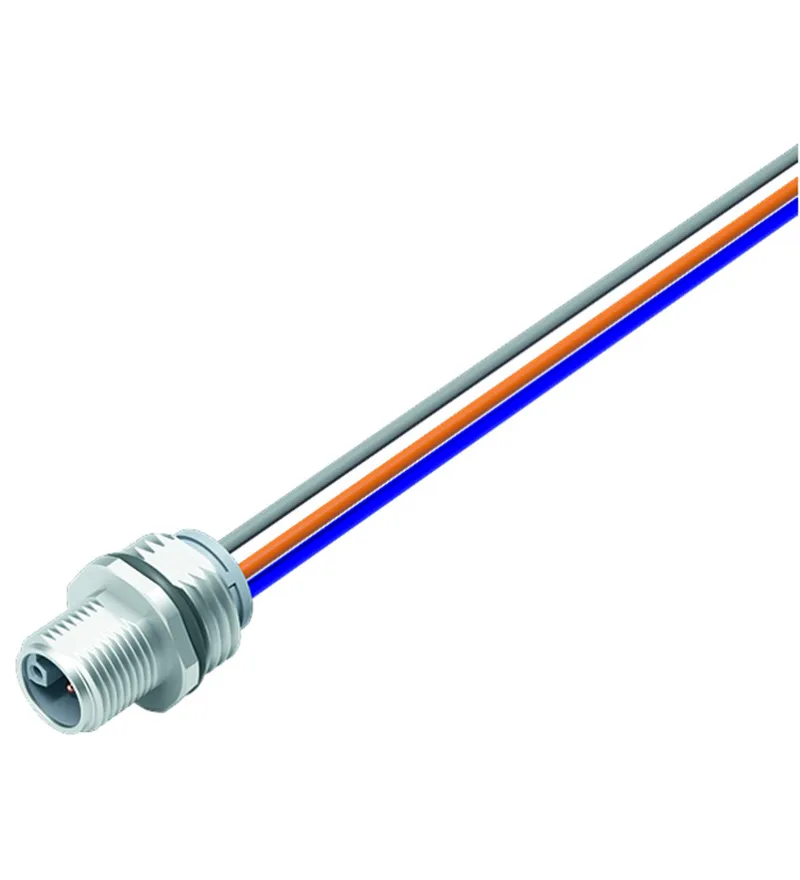

Receptacles. Receptacle M12 plug straight L-coded, 5-pin, single cores, mounting M16. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingL-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: L-coded. Connector 2: . Connectioncable end: . Connection: cable end. Rated voltage: 63 V. Rated current: 12 A. Surge protection: Category III. Insulation resistance: min. 10000 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-111. UL File Number: E363587. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Mating cycles: min. 100. Degree of protection: IP68. Connection: flexible leads (16 AWG). Cable: . Number of cores5Core cross section1.5 mm2 / 16 AWGCores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core 5: greyLengthL500 m: . Number of cores: 5. Core cross section: 1.5 mm2 / 16 AWG. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: grey. Length: 500 m. Installation: Front mounting M16 , tightening torque: 1.25 Nm. Mass: 54 g. Plug connector: . Screw connectionZinc diecast, nickel-platedContact surfacegold plated (Au): . Screw connection: Zinc diecast, nickel-plated. Contact surface: gold plated (Au). Scope of delivery: locknut not included
Specifications
General specifications
| Connector 1 | |
| ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingL-coded | Connection |
| Connection | plug |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 5 |
| Coding | L-coded |
| Connector 2 | |
| Connectioncable end | Connection |
| Connection | cable end |
Electrical specifications
| Rated voltage | 63 V Ur |
| Rated current | 12 A Ir |
| Surge protection | Category III |
| Insulation resistance | min. 10000 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-111 |
Approvals and certificates
| UL File Number | E363587 |
Ambient conditions
| Ambient temperature | -40 ... 105 °C (-40 ... 221 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector | |
| Tightening torque0.6 NmMating cyclesmin. 100 | Tightening torque |
| Tightening torque | 0.6 Nm |
| Mating cycles | min. 100 |
| Degree of protection | IP68 |
| Connection | flexible leads (16 AWG) |
| Cable | |
| Number of cores5Core cross section1.5 mm2 / 16 AWGCores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core 5: greyLengthL500 m | Number of cores |
| Number of cores | 5 |
| Core cross section | 1.5 mm2 / 16 AWG |

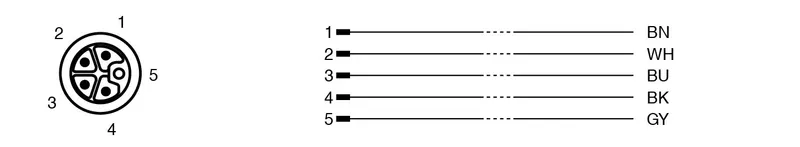

| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: grey |
| Length | 500 m L |

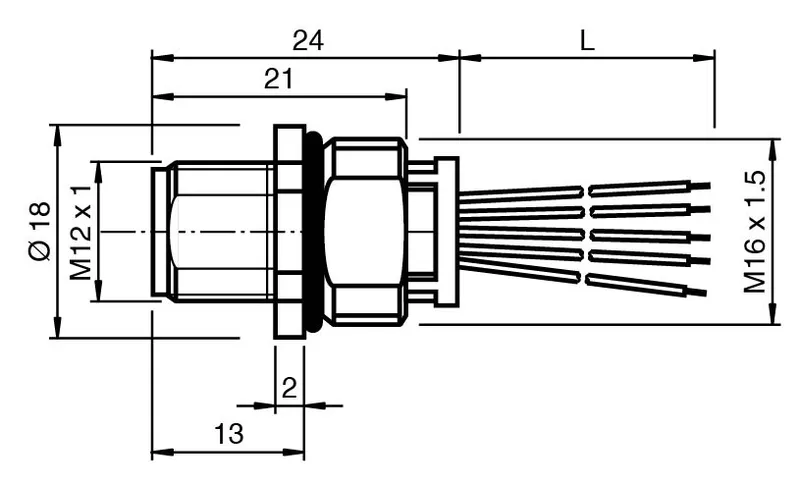

| Installation | Front mounting M16 , tightening torque: 1.25 Nm |
| Mass | 54 g |
Material
| Plug connector | |
| Screw connectionZinc diecast, nickel-platedContact surfacegold plated (Au) | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Contact surface | gold plated (Au) |
General information
| Scope of delivery | locknut not included |
