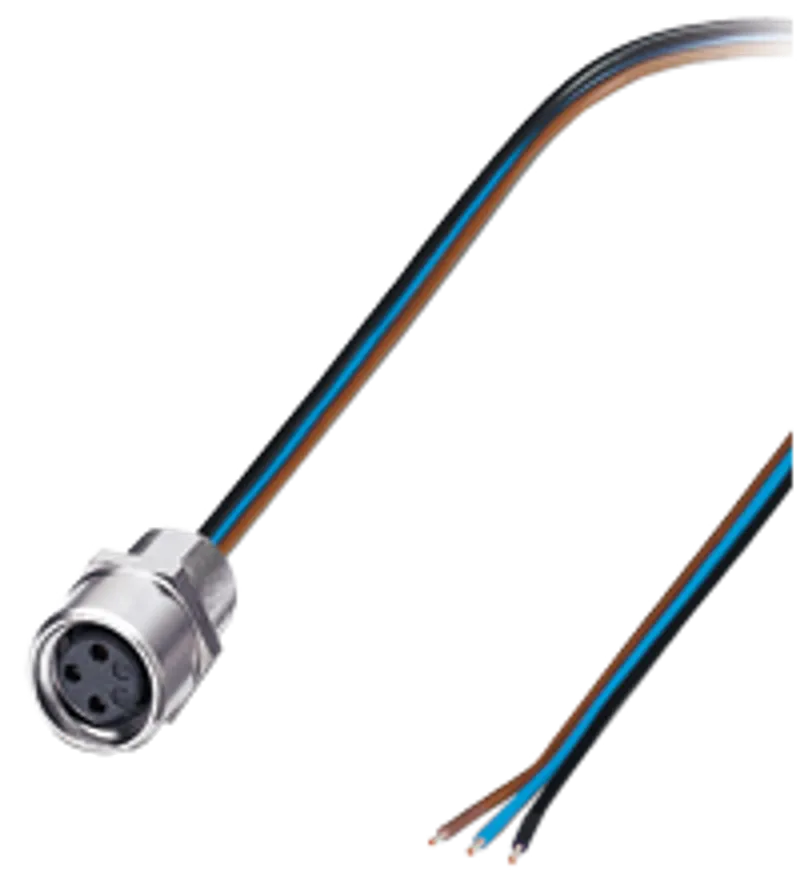

Pepperl Fuchs V3-M8-1000
Receptacles
- MPN
- V3-M8-1000
- Category
- Panel Receptacles
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

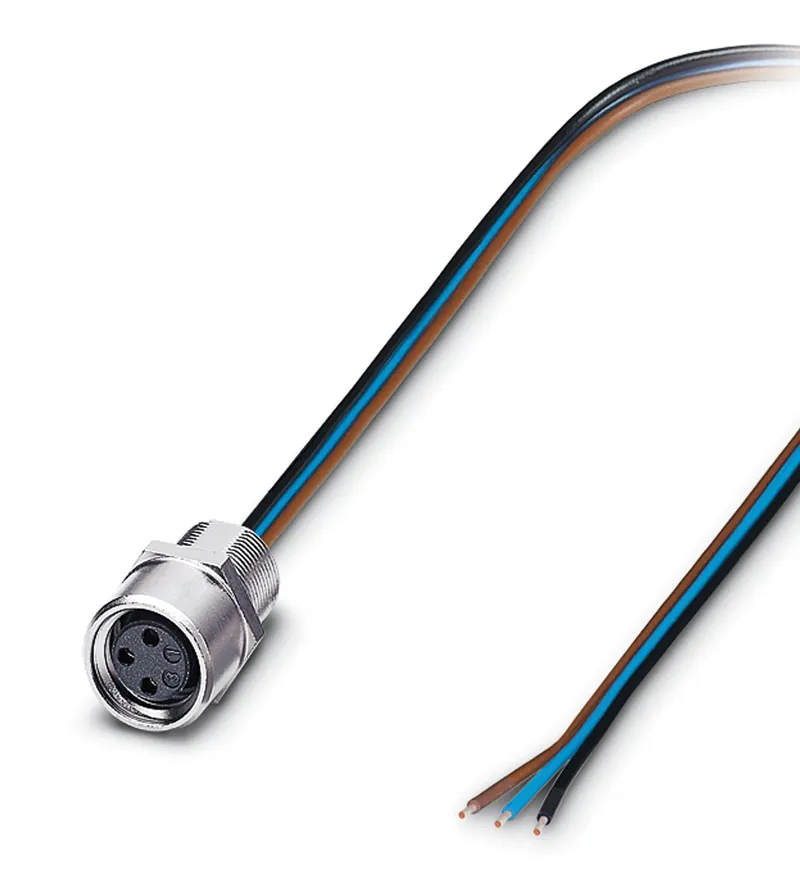

What is the Pepperl Fuchs V3-M8-1000?
Front/screw mounting
Halogen-free stranded wires
Degree of protection IP67
3-pin M8 receptacle
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70187943 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M8 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 3 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 48 V AC / 60 V DC UB |
| Operating current | max. 4 A IB |
| Volume resistance | < 3 mΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 |
| Flammability | IEC 60332-1-2 |
| Halogen-free | IEC 60754-1 |
Approvals and certificates
| UL File Number | E191152 |
Ambient conditions
| Ambient temperature: Plug connector | -25 ... 85 °C (-13 ... 185 °F) |
| Ambient temperature: Cable, fixed installation | -40 ... 105 °C (-40 ... 221 °F) |
| Ambient temperature: Cable, flexing | -10 ... 105 °C (14 ... 221 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Tightening torque | 0.4 Nm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP67 |
| Connection | tinned copper single leads, ∅1.5 ±0.1 mm |
| Cable: Number of cores | 3 |
| Cable: Core cross section | 0.25 mm2 |

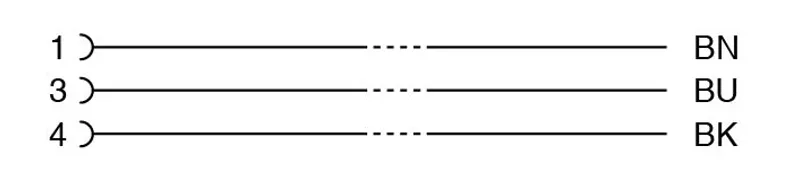

| Cable: Cores color | Core 1: brown Core 3: blue Core 4: black |
| Cable: Core construction | 7 x 0.2 mm ∅ AWG 24 |
| Cable: Length | 1000 mm L |

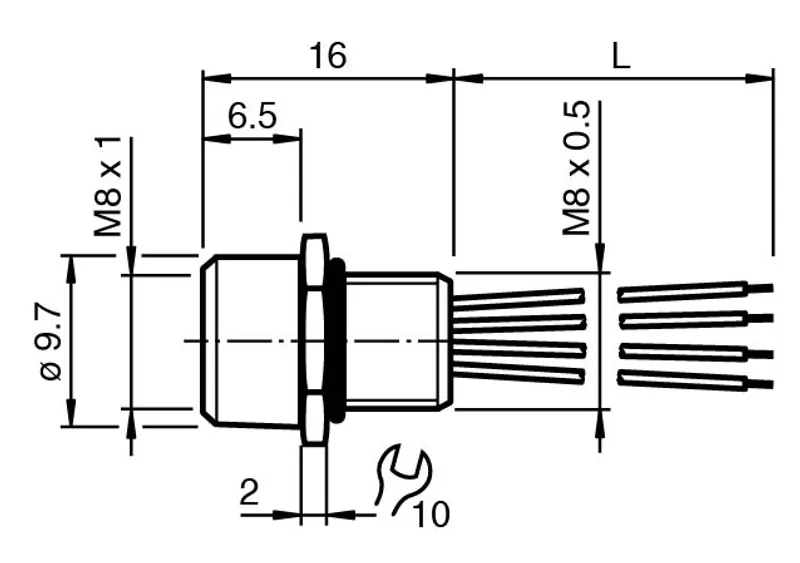

| Installation | Front mounting M8 , tightening torque: 0.8 ... 1 Nm |
| Mass | 15 g |
Material
| Halogen-free | yes |
| Plug connector: Screw connection | brass, nickel-plated |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | HB |
| Cable: Core insulation | PVC |
General information
| Scope of delivery | locknut not included |
