Pepperl Fuchs V1D-M16-V1D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Panel Receptacles |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1D-M16-V1D be shipped?
V1D-M16-V1D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1D-M16-V1D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1D-M16-V1D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1D-M16-V1D, subject to availability and destination.

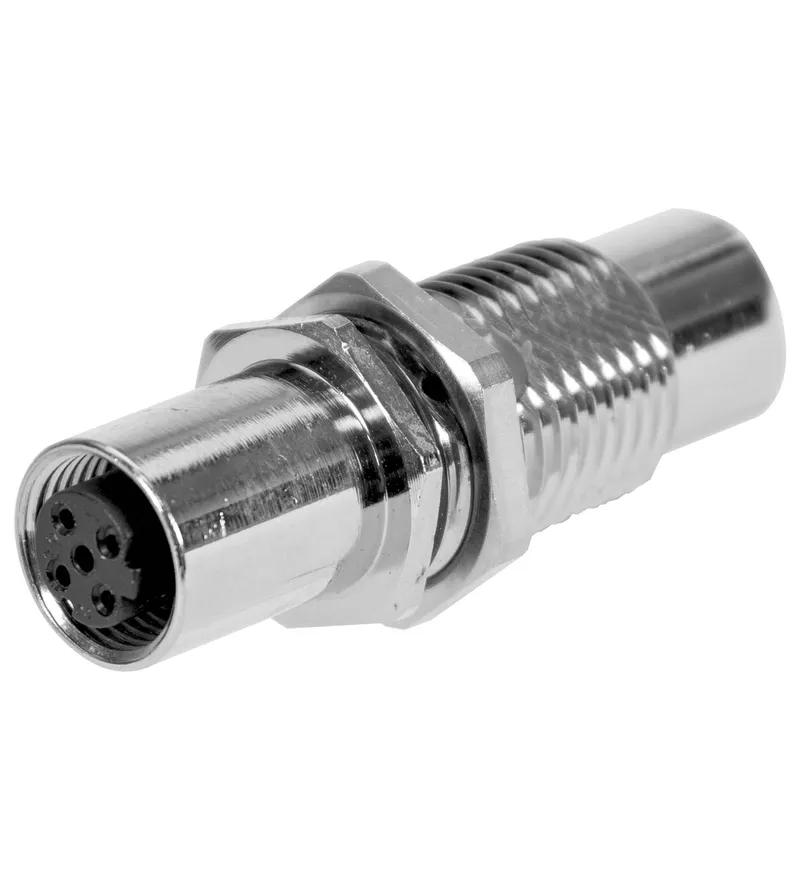

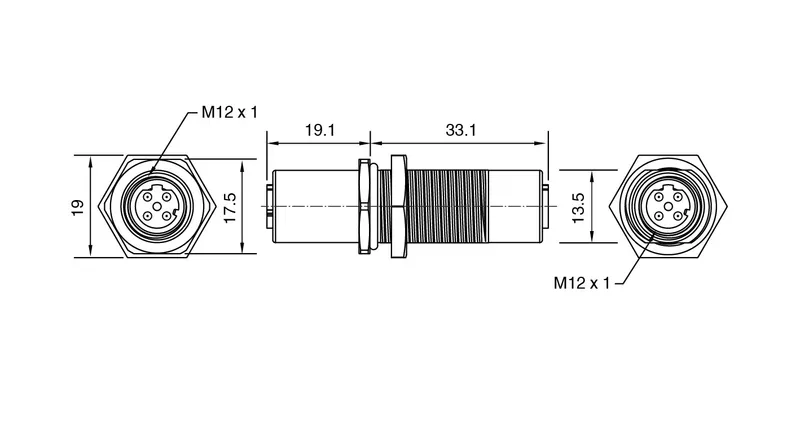

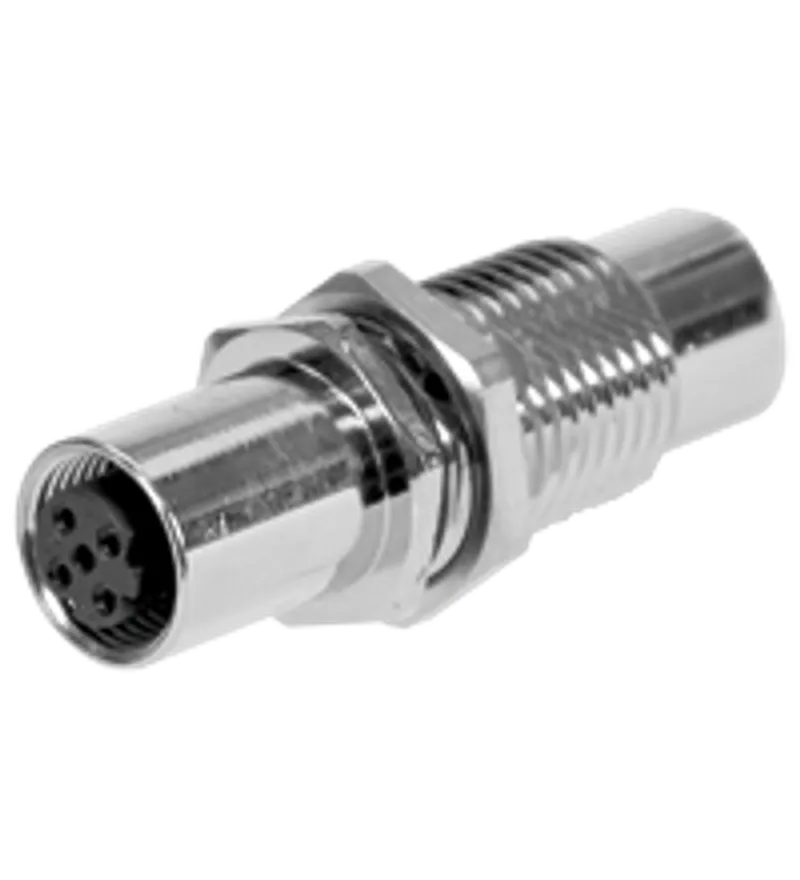

panel mount. Switch cabinet feedthrough, M12/M12, 4-pin, D-coded. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: socket. Construction type 2: straight. Threading 2: M12. Operating voltage: max. ... 60 V DC. Operating current: max. 4 A. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Degree of protection: IP67. Material: . ContactsGold plated copper alloyHousingbrass nickel-platedSlotted nutbrass nickel-platedSleeve connectorPolyamide (PA)SealFPM: . Contacts: Gold plated copper alloy. Housing: brass nickel-plated. Slotted nut: brass nickel-plated. Sleeve connector: Polyamide (PA). Seal: FPM. Mass: 41.3 g. Scope of delivery: locknut not included
Specifications
General specifications

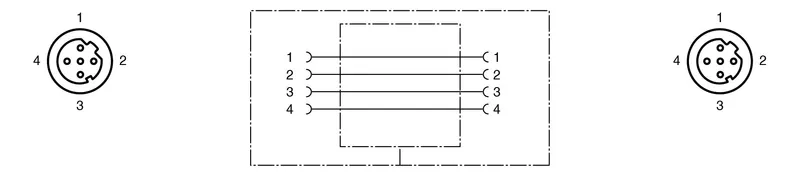

| Number of pins | 4 |
| Connection 1 | socket |
| Construction type 1 | straight |
| Threading 1 | M12 |
| Connection 2 | socket |
| Construction type 2 | straight |
| Threading 2 | M12 |
Electrical specifications
| Operating voltage | max. ... 60 V DC UB |
| Operating current | max. 4 A IB |
Ambient conditions
| Ambient temperature | -40 ... 105 °C (-40 ... 221 °F) |
Mechanical specifications
| Degree of protection | IP67 |
| Material | |
| ContactsGold plated copper alloyHousingbrass nickel-platedSlotted nutbrass nickel-platedSleeve connectorPolyamide (PA)SealFPM | Contacts |
| Contacts | Gold plated copper alloy |
| Housing | brass nickel-plated |
| Slotted nut | brass nickel-plated |
| Sleeve connector | Polyamide (PA) |
| Seal | FPM |
| Mass | 41.3 g |
General information
| Scope of delivery | locknut not included |
