Panel Receptacles Parts
Compare Panel Receptacles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Operating voltage | Operating current | Cable: Length | Ambient temperature |
|---|---|---|---|---|---|

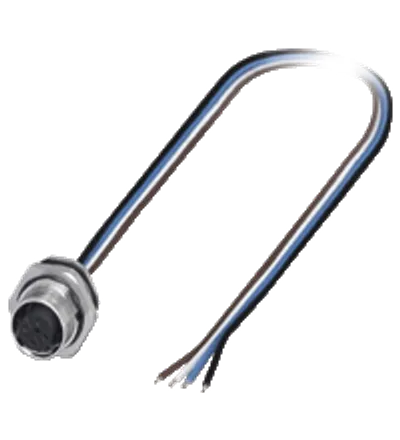

| V1-M16H-500 | 257467 | max. 250 V AC/DC UB | max. 4 A IB | 500 mm L | — |

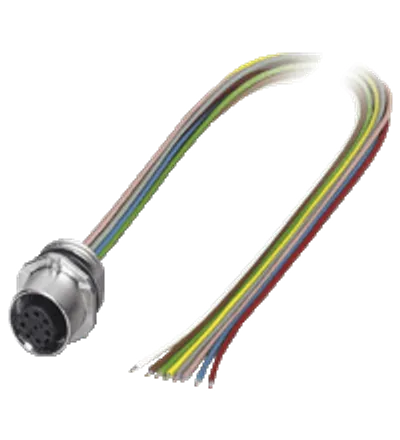

| V19-M16-500 | 456933 | max. 30 V AC/DC UB | max. 2 A IB | 500 mm L | — |

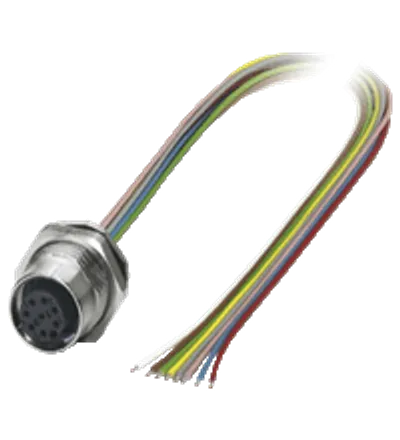

| V19-M16H-500 | 257469 | max. 30 V DC UB | max. 2 A IB | 500 mm L | — |
| M20-V1-G-S-.3M | 909401 | max. 300 V AC/DC UB | max. 4 A IB | 0.3 m L | -40 ... 105 °C (-40 ... 221 °F) |

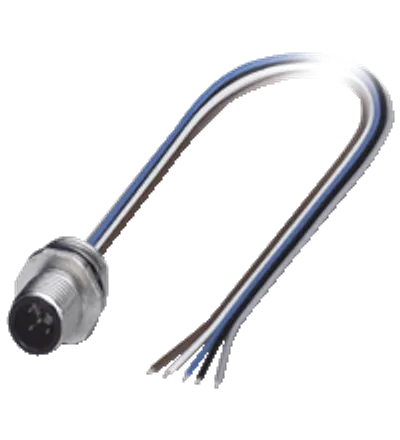

| V15S-M16-500 | 456937 | max. 60 V AC/DC UB | max. 4 A IB | 500 mm L | — |
| V1-PG13,5-Y124355 | 124355 | max. 240 V AC/DC UB | max. 4 A IB | 250 mm L | -25 ... 80 °C (-13 ... 176 °F) |
| V15-M16-500 | 456932 | max. 60 V AC/DC UB | max. 4 A IB | 500 mm L | — |

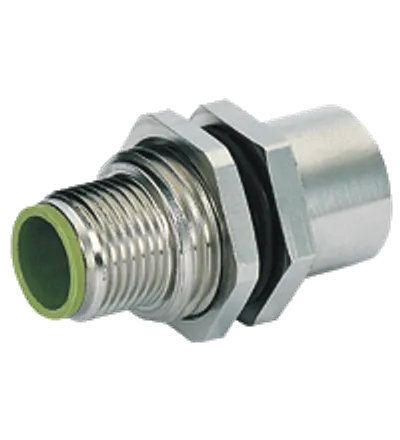

| V15-M16-V15 | 292040 | max. 60 V AC/ DC UB | max. 4 A IB | — | -25 ... 85 °C (-13 ... 185 °F) |

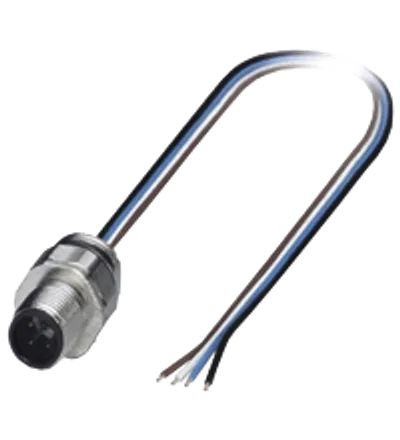

| V1S-PG9-500 | 456939 | max. 250 V AC/DC UB | max. 4 A IB | 500 mm L | — |

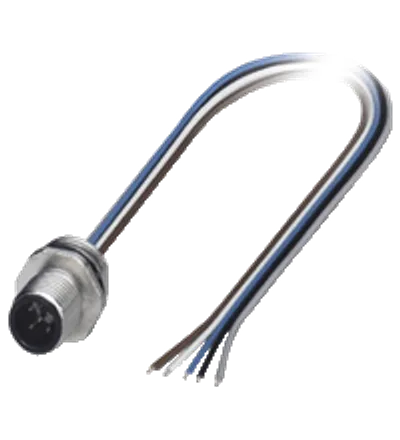

| V15S-PG9-500 | 456940 | max. 60 V AC/DC UB | max. 4 A IB | 500 mm L | — |

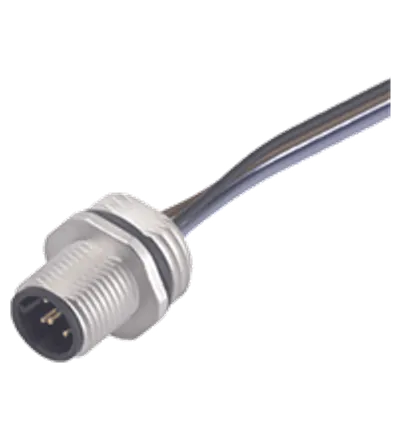

| V1S-M16-500 | 226471 | max. 250 V AC/DC UB | max. 4 A IB | 500 mm L | — |

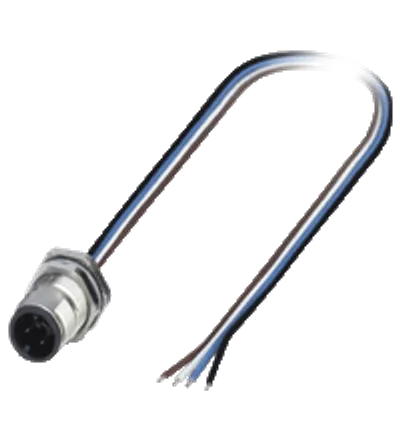

| V1S-M12-500 | 211514 | max. 60 V DC UB | max. 4 A IB | — | -25 ... 85 °C (-13 ... 185 °F) |
| V1-M20-80 | 128735 | max. 48 V AC / 60 V DC UB | max. 3 A IB | 80 mm L | -25 ... 70 °C (-13 ... 158 °F) |
| V1-PG13,5-Y21270 | 021270 | max. 240 V AC/DC UB | max. 4 A IB | 80 mm L | -25 ... 80 °C (-13 ... 176 °F) |

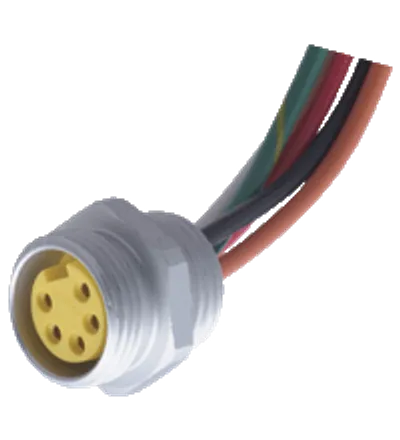

| 1/2" NPT-V95-G-.3M | 906472 | max 600 V AC/DC UB | 8 A IB | 0.3 m L | -40 ... 105 °C (-40 ... 221 °F) |

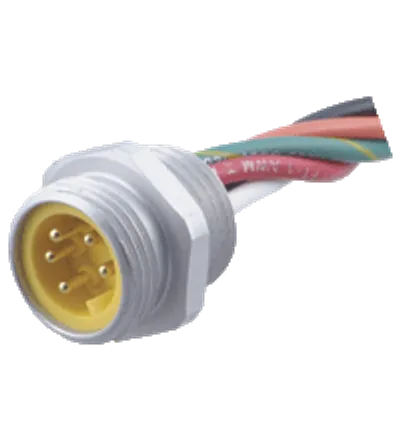

| 1/2" NPT-V95-G-S-.3M | 906168 | max 600 V AC/DC UB | 8 A IB | 0.3 m L | -40 ... 105 °C (-40 ... 221 °F) |

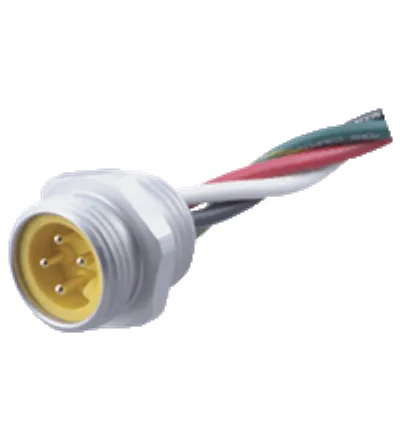

| 1/2" NPT-V94-G-S-.3M | 903707 | max 600 V AC/DC UB | 10 A IB | 0.3 m L | -40 ... 105 °C (-40 ... 221 °F) |

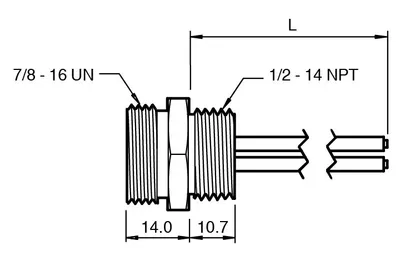

| 1/2" NPT-V94-G-.3M | 906188 | max 600 V AC/DC UB | 10 A IB | 0.3 m L | -40 ... 105 °C (-40 ... 221 °F) |

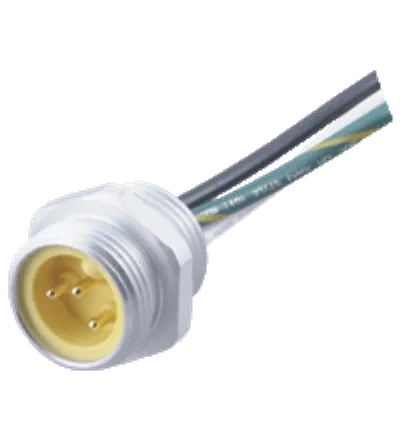

| 1/2" NPT-V93-G-S-.3M | 904849 | max 600 V AC/DC UB | 13 A IB | 0.3 m L | -40 ... 105 °C (-40 ... 221 °F) |

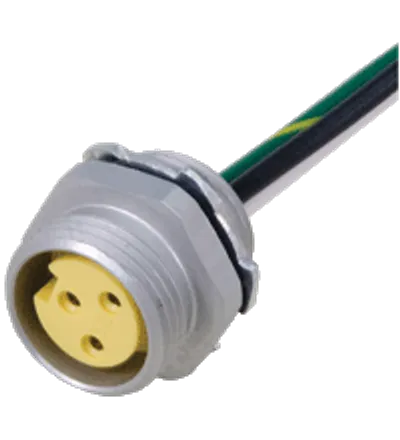

| 1/2" NPT-V93-G-.3M | 906473 | max 600 V AC/DC UB | 13 A IB | 0.3 m L | -40 ... 105 °C (-40 ... 221 °F) |
| 1/2" NPT-V1-G-S-.3M | 908550 | max. 300 V AC/DC UB | max. 4 A IB | 0.3 m L | -40 ... 105 °C (-40 ... 221 °F) |

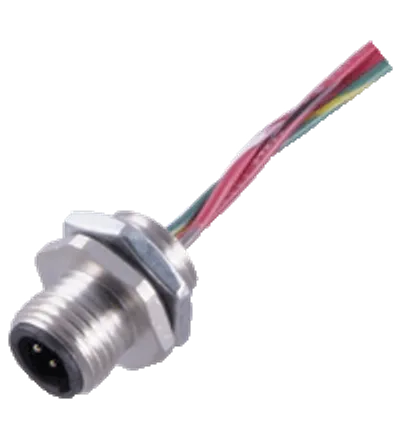

| 1/4" NPT-V124-G-S-.076M | 904919 | max. 300 V AC / DC UB | 4 A IB | 0.076 m L | -40 ... 105 °C (-40 ... 221 °F) |

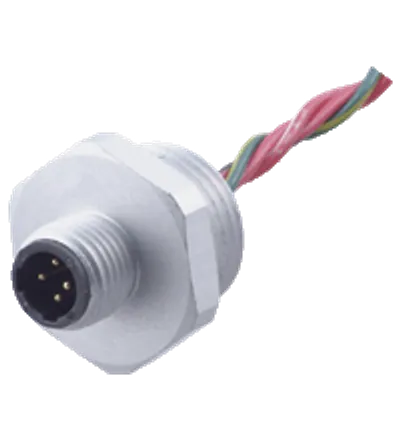

| 1/2" NPT-V124-G-S-.076M | 900191 | max. 300 V AC/DC UB | max. 4 A IB | 0.076 m L | -40 ... 105 °C (-40 ... 221 °F) |
| V1-PG9-500 | 456934 | max. 250 V AC/DC UB | max. 4 A IB | 500 mm L | — |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
