What is the Pepperl Fuchs V15L-M16-500?
Front/screw mounting
UL Recognized Component

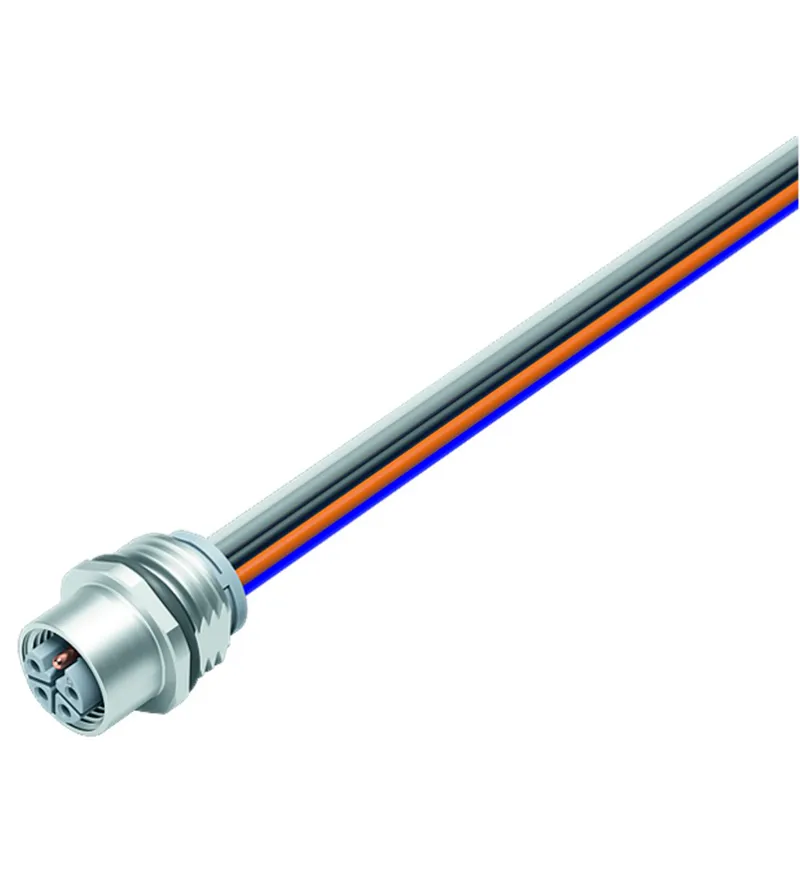

Receptacle M12 socket straight L-coded, 5-pin, single cores, mounting M16
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 322924 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 5 |
| Connector 1: Coding | L-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Rated voltage | 63 V Ur |
| Rated current | 12 A Ir |
| Surge protection | Category III |
| Insulation resistance | min. 10000 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-111 |
Approvals and certificates
| UL File Number | E363587 |
Ambient conditions
| Ambient temperature | -40 ... 105 °C (-40 ... 221 °F) |
| Pollution degree | 3 |

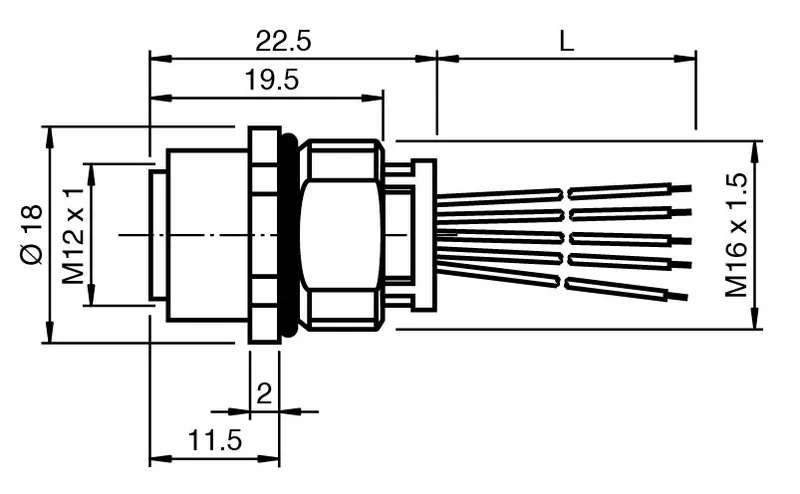

Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP68 |
| Connection | flexible leads (16 AWG) |
| Cable: Number of cores | 5 |
| Cable: Core cross section | 1.5 mm2 / 16 AWG |

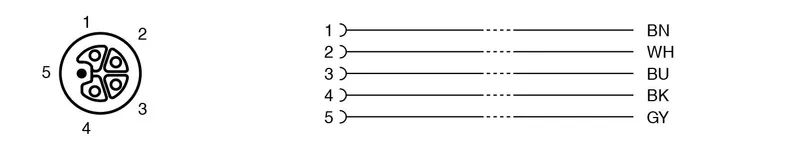

| Cable: Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: grey |
| Cable: Length | 500 m L |
| Installation | Front mounting M16 , tightening torque: 1.25 Nm |
| Mass | 42.76 g |
Material
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
General information
| Scope of delivery | locknut not included |
