Pepperl Fuchs V1-M16-500
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Panel Receptacles |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can V1-M16-500 be shipped?
V1-M16-500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up V1-M16-500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for V1-M16-500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for V1-M16-500, subject to availability and destination.

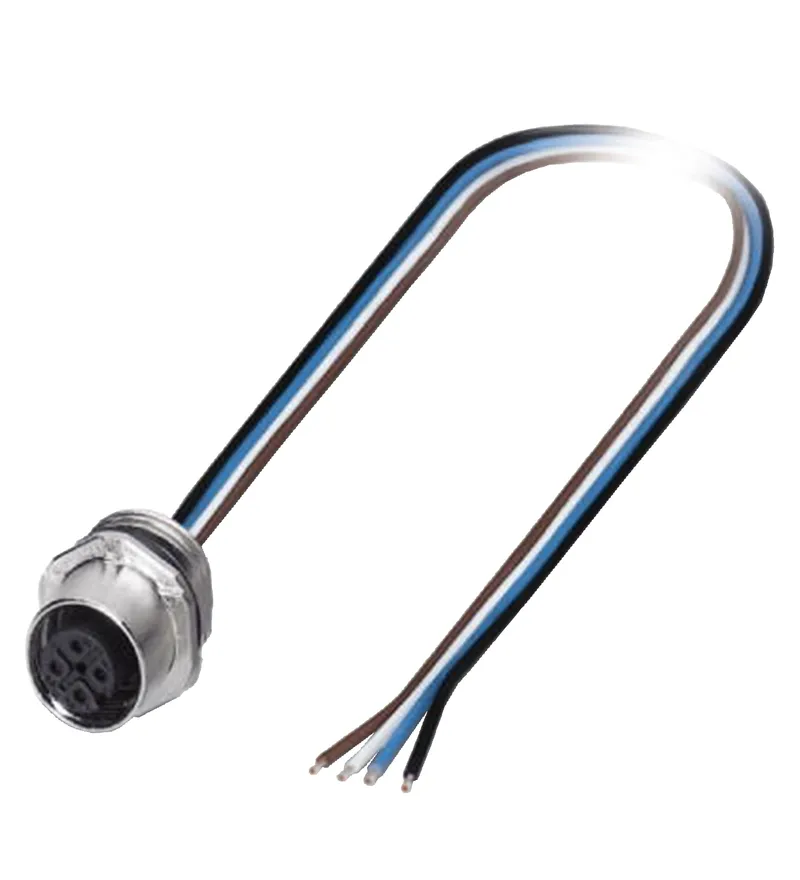

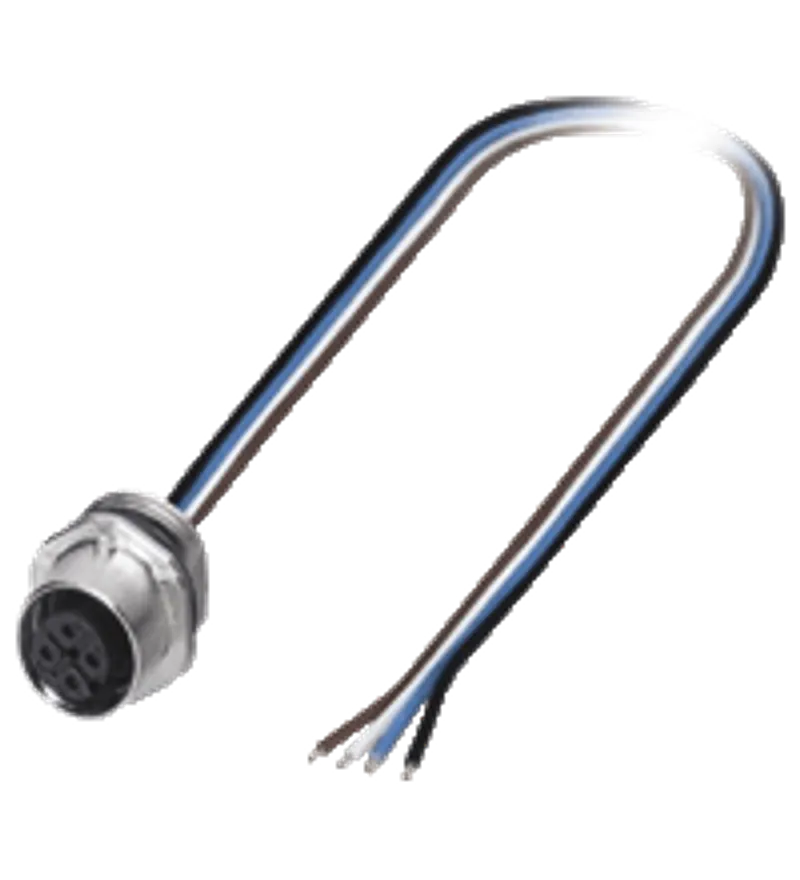

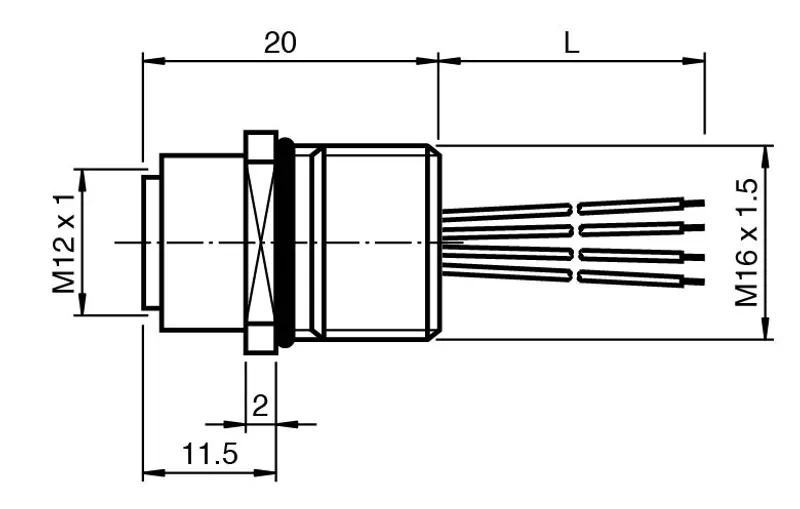

Receptacles. Receptacles, M12/M16, 4-pin. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 250 V AC/DC. Test voltage: > 2000 V eff AC. Operating current: max. 4 A. Volume resistance: < 3 mΩ. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 94. UL File Number: E191152. Ambient temperature: . Cable, fixed installation-40 ... 85 °C (-40 ... 185 °F)Cable, flexing-25 ... 85 °C (-13 ... 185 °F): . Cable, fixed installation: -40 ... 85 °C (-40 ... 185 °F). Cable, flexing: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Plug connector: . Mating cyclesmin. 100: . Mating cycles: min. 100. Degree of protection: IP67. Connection: tinned copper single leads, ∅1.2 ±0.07 mm. Cable: . Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction7 x 0.25 mm ∅ AWG 22LengthL500 mm: . Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Core construction: 7 x 0.25 mm ∅ AWG 22. Length: 500 mm. Installation: Front mounting M16 , tightening torque: 3 ... 4 Nm. Mass: 18.11 g. Plug connector: . Screw connectionZinc diecast, nickel-platedSealFKMContact surfacegold plated (Au)FlammabilityV-0: . Screw connection: Zinc diecast, nickel-plated. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-0. Cable: . Core insulationTPE: . Core insulation: TPE. Scope of delivery: locknut not included
Specifications
General specifications
| Connector 1 | |
| ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded | Connection |
| Connection | socket |
| Construction type | M12 |
| Style | straight |
| Locking | screw connection |
| Number of pins | 4 |
| Coding | A-coded |
| Connector 2 | |
| Connectioncable end | Connection |
| Connection | cable end |
Electrical specifications
| Operating voltage | max. 250 V AC/DC UB |
| Test voltage | > 2000 V eff AC |
| Operating current | max. 4 A IB |
| Volume resistance | < 3 mΩ |
| Insulation resistance | min. 100 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 94 |
Approvals and certificates
| UL File Number | E191152 |
Ambient conditions
| Ambient temperature | |
| Cable, fixed installation-40 ... 85 °C (-40 ... 185 °F)Cable, flexing-25 ... 85 °C (-13 ... 185 °F) | Cable, fixed installation |
| Cable, fixed installation | -40 ... 85 °C (-40 ... 185 °F) |
| Cable, flexing | -25 ... 85 °C (-13 ... 185 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector | |
| Mating cyclesmin. 100 | Mating cycles |
| Mating cycles | min. 100 |
| Degree of protection | IP67 |
| Connection | tinned copper single leads, ∅1.2 ±0.07 mm |
| Cable | |
| Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction7 x 0.25 mm ∅ AWG 22LengthL500 mm | Number of cores |
| Number of cores | 4 |
| Core cross section | 0.34 mm2 |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
| Core construction | 7 x 0.25 mm ∅ AWG 22 |
| Length | 500 mm L |
| Installation | Front mounting M16 , tightening torque: 3 ... 4 Nm |
| Mass | 18.11 g |
Material
| Plug connector | |
| Screw connectionZinc diecast, nickel-platedSealFKMContact surfacegold plated (Au)FlammabilityV-0 | Screw connection |
| Screw connection | Zinc diecast, nickel-plated |
| Seal | FKM |
| Contact surface | gold plated (Au) |
| Flammability | V-0 |
| Cable | |
| Core insulationTPE | Core insulation |
| Core insulation | TPE |
General information
| Scope of delivery | locknut not included |
