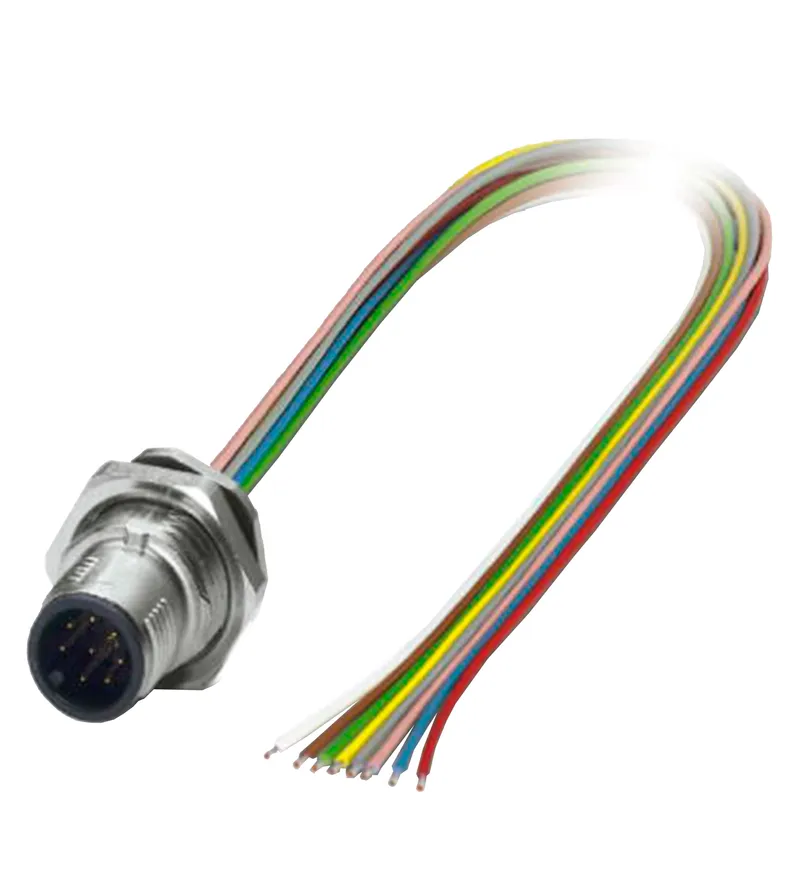

Pepperl Fuchs V19S-M16-500
Receptacles
- MPN
- V19S-M16-500
- Category
- Panel Receptacles
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs V19S-M16-500?
Front/screw mounting
Receptacles, M12/M16, 8-pin
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 456938 |
| Connector 1: Connection | plug |
| Connector 1: Construction type | M12 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 8 |
| Connector 1: Coding | A-coded |
| Connector 2: Connection | cable end |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V AC/DC UB |
| Test voltage | > 2000 V eff AC |
| Operating current | max. 2 A IB |
| Volume resistance | < 3 mΩ |
| Insulation resistance | min. 100 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Flammability | UL 94 |
Ambient conditions
| Ambient temperature: Cable, fixed installation | -40 ... 85 °C (-40 ... 185 °F) |
| Ambient temperature: Cable, flexing | -25 ... 85 °C (-13 ... 185 °F) |
| Pollution degree | 3 |
Mechanical specifications
| Plug connector: Mating cycles | min. 100 |
| Degree of protection | IP65 / IP67 |
| Connection | tinned copper single leads, ∅1.15 ±0.07 mm |
| Cable: Number of cores | 8 |
| Cable: Core cross section | 0.25 mm2 |

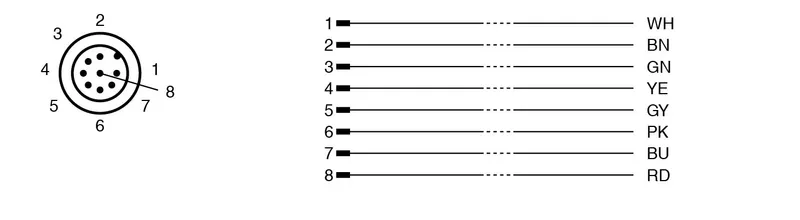

| Cable: Cores color | Core 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: red |
| Cable: Core construction | 14 x 0.15 mm ∅ AWG 24 |
| Cable: Length | 500 mm L |

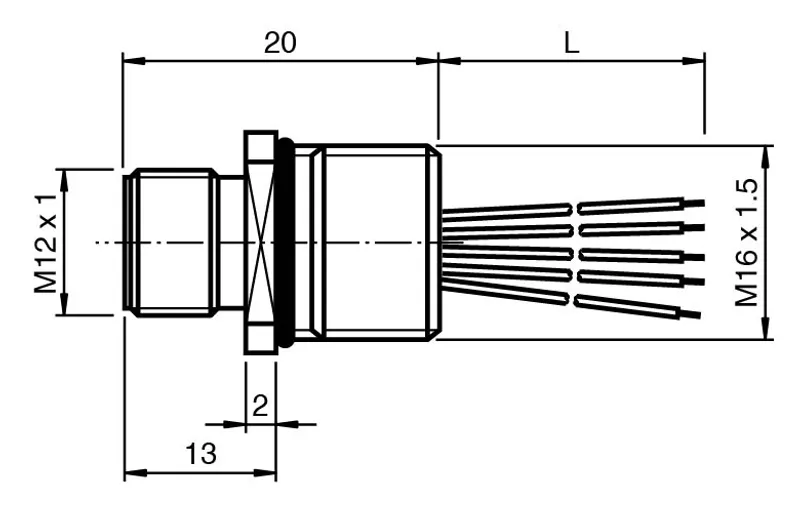

| Installation | Front mounting M16 , tightening torque: 3 ... 4 Nm |
| Mass | 24 g |
Material
| Plug connector: Screw connection | Zinc diecast, nickel-plated |
| Plug connector: Seal | FKM |
| Plug connector: Contact surface | gold plated (Au) |
| Plug connector: Flammability | V-0 |
| Cable: Core insulation | TPE |
General information
| Scope of delivery | locknut not included |
