MPN	Order code (Pepperl+Fuchs part number)	Transducer frequency	No-load supply current	Connection type	Output type

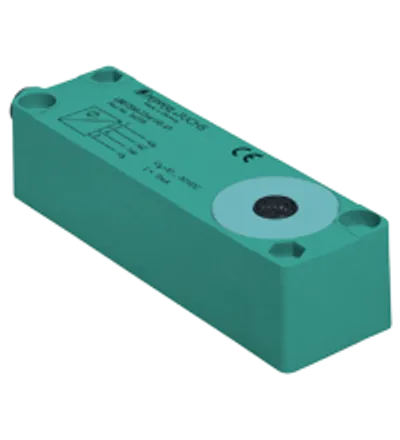

UBE15M-F54-H1-V1	114519	approx. 40 kHz	≤ 10 mA (typ. 6 mA at UB = 24 V DC) I0	Connector plug M12 x 1 , 4-pin	—

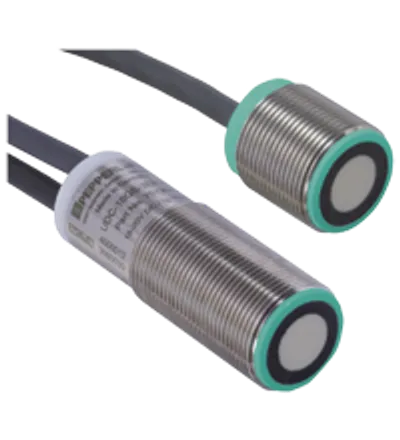

UDC-18GS-3EP-IO-0,2M-V19-P001	70120101-100007	approx. 255 kHz	≤ 40 mA I0	fixed cable with plug	PNP

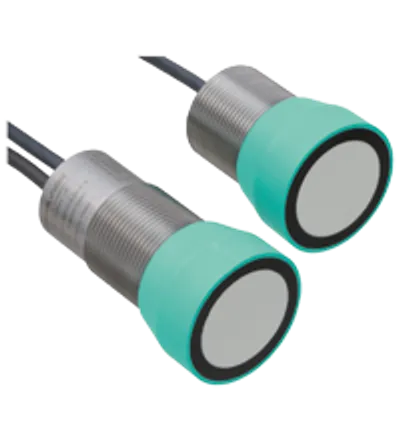

UDCM-30GS-3EP-IO-0,2M-V19	70120102-100001	approx. 85 kHz	≤ 100 mA I0	fixed cable with plug	PNP
UDC-30GS-3EP-IO-0,2M-V19	70120102-100000	approx. 85 kHz	≤ 100 mA I0	fixed cable with plug	PNP

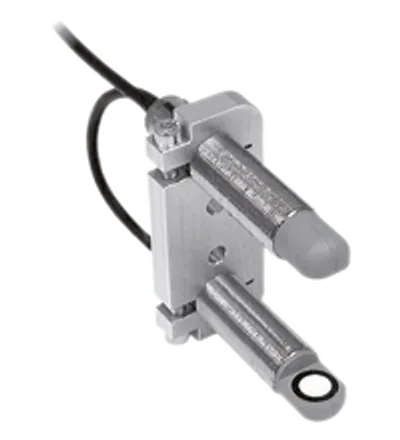

UDC-18GMA-400-3E3-Y70103909	70103909	395 kHz	< 80 mA I0	cable PVC , 5 m	3 switch outputs PNP, NC

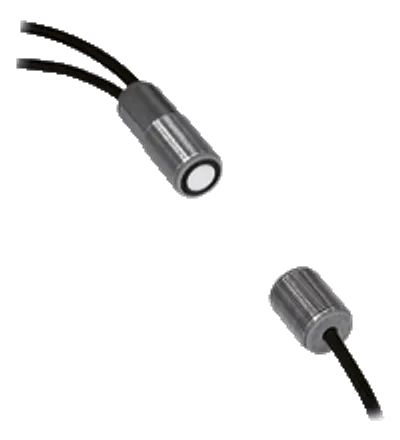

UDC-18GM50-400-3E0-610MM-6AMP	913622	395 kHz	< 50 mA I0	fixed cable with plug	3 switch outputs NPN, NO
UDC-18GS-3EP1-IO-0,2M-V19	70120101-100005	approx. 255 kHz	≤ 40 mA I0	fixed cable with plug	PNP
UDB-18GS-2E2-0,2M-V15	70120101-100002	approx. 255 kHz	≤ 40 mA I0	fixed cable with plug	switching output: PNP , NO contact

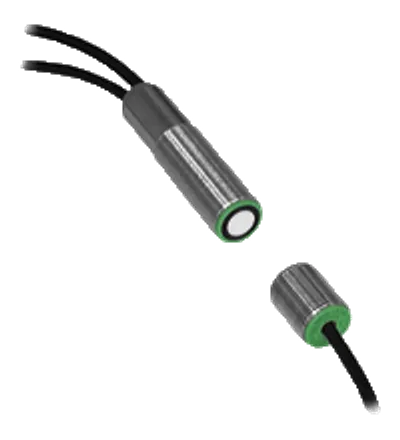

UDC-18GM-400-3E3-Y235849	235849	395 kHz	< 80 mA I0	cable PVC , 2 m	3 switch outputs PNP, NC
UDC-18GM-400-3E2	235852	395 kHz	< 80 mA I0	cable PVC , 2 m	3 switch outputs PNP, NO

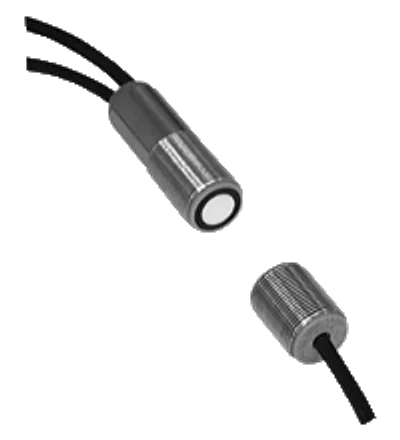

UGB-18GM50-255-2E3-Y275681	275681	255 kHz	< 60 mA I0	cable PVC , 6 m	2 switch outputs PNP, NC
UGB-18GM50-255-2E3	193008	255 kHz	< 60 mA I0	cable PVC , 2 m	2 switch outputs PNP, NC
UDC-18GM-400-3E1-Y194142	194142	395 kHz	< 80 mA I0	cable PVC , 2 m	3 switch outputs NPN, NC

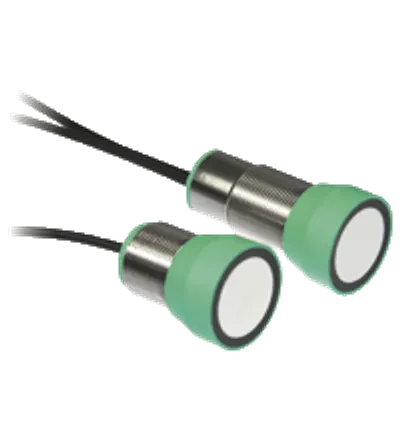

UDC-30GM-085-3E3	193141	85 kHz	< 200 mA I0	cable PVC , 2 m	3 switch outputs PNP, NC
UDCM-30GM-085-3E3	193142	85 kHz	< 200 mA I0	cable PVC , 2 m	3 switch outputs PNP, NC
UDC-18GM50-400-3E0	191326	395 kHz	< 50 mA I0	cable PVC , 2 m	3 switch outputs NPN, NO
UDC-18GM50-255-3E3	186657	255 kHz	< 50 mA I0	cable PVC , 2 m	3 switch outputs PNP, NC
UDC-18GM50-400-3E3	190313	395 kHz	< 50 mA I0	cable PVC , 2 m	3 switch outputs PNP, NC
UDC-18GM50-400-3E2	188642	395 kHz	< 50 mA I0	cable PVC , 2 m	3 switch outputs PNP, NO
UDC-18GM50-400-3E1	188641	395 kHz	< 50 mA I0	cable PVC , 2 m	3 switch outputs NPN, NC
UDC-18GM-400-3E3	192999	395 kHz	< 80 mA I0	cable PVC , 2 m	3 switch outputs PNP, NC
UGB-18GM50-255-2E3-M1	211084	255 kHz	< 60 mA I0	—	2 switch outputs PNP, NC
UDC-18GM50-255-3E1	206938	255 kHz	< 50 mA I0	cable PVC , 2 m	3 switch outputs NPN, NC
UDC-18GM50-400-3E0-Y204251	204251	395 kHz	< 50 mA I0	cable PVC , 2 m	3 switch outputs NPN, NO

Common to all listed parts

Lifecycle

Active (current Pepperl+Fuchs product)
