Pepperl Fuchs UGB-18GM50-255-2E3-Y275681
Splice sensor
- MPN
- UGB-18GM50-255-2E3-Y275681
- Category
- Double Sheet Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs UGB-18GM50-255-2E3-Y275681?
Ultrasonic system for splice detection
Short version
Insensitive to printing, colors, and shining surfaces
Very high processing speeds are possible.
Ultrasonic system for splice detection, Short version, Insensitive to printing, colors, and shining surfaces, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: UGB-18GM, Operating voltage: 18 ... 30 V DC , ripple 10 %SS, Output type: 2 switch outputs PNP, NC, UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: cable PVC , 6 m
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 275681 |
| Sensing range | 20 ... 60 mm , optimal distance: 45 mm |
| Transducer frequency | 255 kHz |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green | Display: readiness |
| LED yellow | Display: splice detected |
| LED red | indication: no sheet detected (Air) |
Electrical specifications
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS UB |
| No-load supply current | < 60 mA I0 |
| Time delay before availability | < 500 ms tv |
Input
| Input type | Teach-In input 0-level: -UB ... -UB + 1V 1-level: +UB - 1 V ... +UB |
| Pulse length | ≥ 500 ms |
| Impedance | ≥ 10 kΩ |
Output
| Output type | 2 switch outputs PNP, NC |
| Rated operating current | 2 x 100 mA , short-circuit/overload protected Ie |
| Voltage drop | ≤ 3 V Ud |
| Switch-on delay | ≤ 600 µs ton |
| Switch-off delay | ≤ 600 µs toff |
| Pulse extension | ≥ 120 ms programmable |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
Approvals and certificates
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | 0 ... 60 °C (32 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Connection type | cable PVC , 6 m |
| Core cross section | 0.14 mm2 |
| Degree of protection | IP67 |
| Material: Housing | nickel plated brass; plastic components: PBT |
| Material: Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Mass | 150 g |
| Dimensions: Length | 53 mm |
| Dimensions: Diameter | 18 mm |

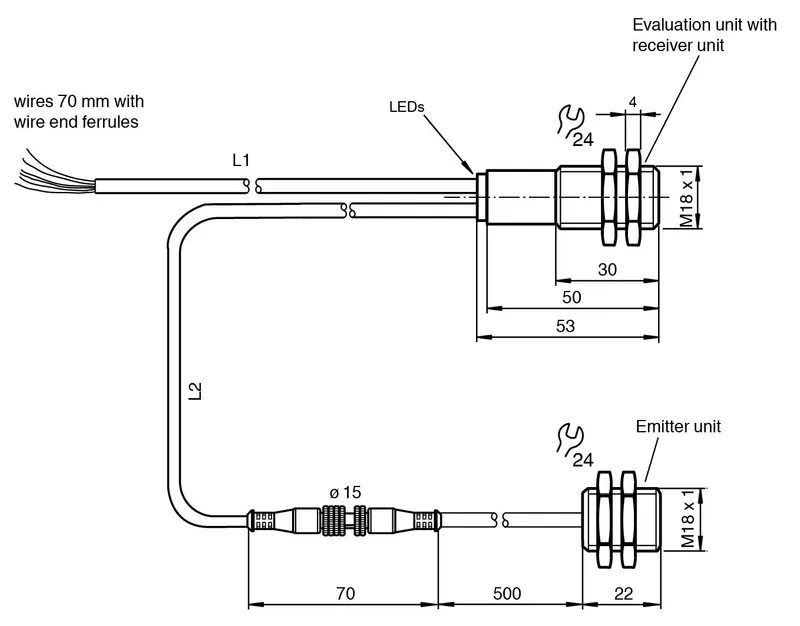

| Cable length | L1 = 6 m L2 = 0.5 m |
