Double sheet sensor. Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers, Very short response time, Function indicators visible from all directions, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: UDC-18GM, Operating voltage: 18 ... 30 V DC , ripple 10 % SS , Output type: 3 switch outputs PNP, NC, UL approval: cULus Listed, General Purpose, Class 2 Power Source. Sensing range: 20 ... 60 mm , optimal distance: 45 mm. Transducer frequency: 395 kHz. LED green: indication: single sheet detected. LED yellow: indication: no sheet detected (Air). LED red: indication: double sheet detected. Operating voltage: 18 ... 30 V DC , ripple 10 %SS. No-load supply current: < 80 mA. Time delay before availability: < 500 ms. Input type: Function input 0-level: -UB ... -UB + 1V1-level: +UB - 1 V ... +UB. Pulse length: ≥ 100 ms. Impedance: ≥ 4 kΩ. Output type: 3 switch outputs PNP, NC. Rated operating current: 3 x 100 mA , short-circuit/overload protected. Voltage drop: ≤ 2 V. Switch-on delay: approx. 1.5 ms. Switch-off delay: approx. 1.5 ms. Pulse extension: min. 120 ms programmable. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 60 °C (32 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Connection type: cable PVC , 2 m. Core cross section: 0.14 mm2. Degree of protection: IP67. Material: . Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: nickel plated brass; plastic components: PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 150 g. Dimensions: . Length74 mmDiameter18 mm: . Length: 74 mm. Diameter: 18 mm. Supplementary information: Switch settings of the external programming adapter: "output load": pull-down "output logic": inv

Specifications

General specifications

Sensing range	20 ... 60 mm , optimal distance: 45 mm
Transducer frequency	395 kHz

Indicators/operating means

LED green	indication: single sheet detected
LED yellow	indication: no sheet detected (Air)
LED red	indication: double sheet detected

Electrical specifications

Operating voltage	18 ... 30 V DC , ripple 10 %SS UB
No-load supply current	< 80 mA I0
Time delay before availability	< 500 ms tv

Input

Input type	Function input 0-level: -UB ... -UB + 1V1-level: +UB - 1 V ... +UB
Pulse length	≥ 100 ms
Impedance	≥ 4 kΩ

Output

Output type	3 switch outputs PNP, NC
Rated operating current	3 x 100 mA , short-circuit/overload protected Ie
Voltage drop	≤ 2 V Ud
Switch-on delay	approx. 1.5 ms ton
Switch-off delay	approx. 1.5 ms toff
Pulse extension	min. 120 ms programmable

Compliance with standards and directives

Standard conformity
StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019	Standards
Standards	EN IEC 60947-5-2:2020 IEC 60947-5-2:2019

Approvals and certificates

UL approval	cULus Listed, General Purpose, Class 2 Power Source
CCC approval	CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature	0 ... 60 °C (32 ... 140 °F)
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Connection type	cable PVC , 2 m
Core cross section	0.14 mm2
Degree of protection	IP67
Material
Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam	Housing
Housing	nickel plated brass; plastic components: PBT
Transducer	epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass	150 g
Dimensions

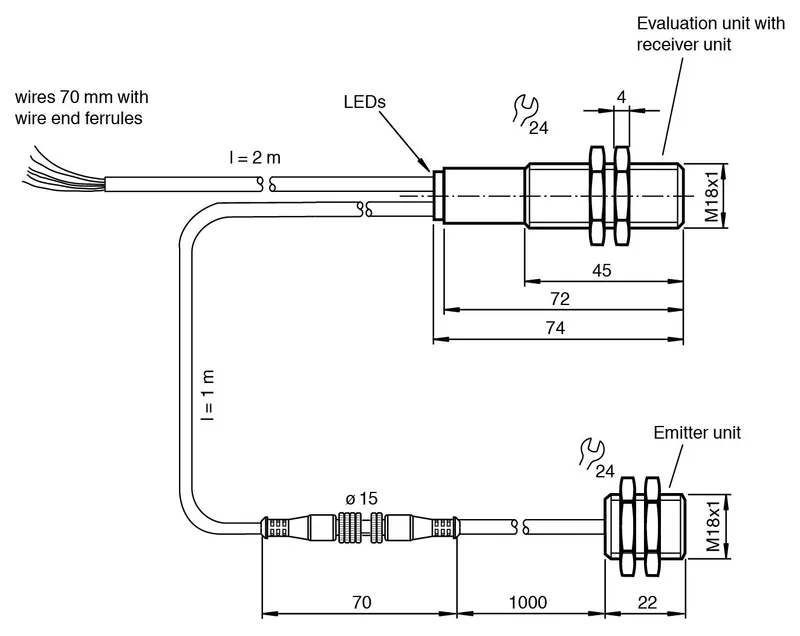

Length74 mmDiameter18 mm	Length
Length	74 mm
Diameter	18 mm
