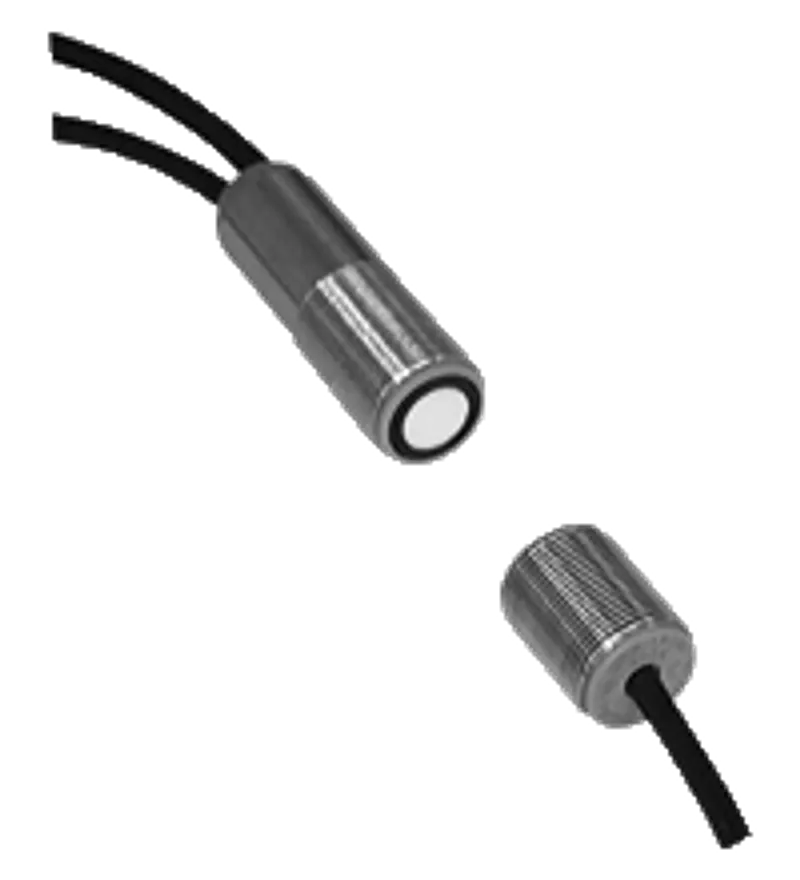

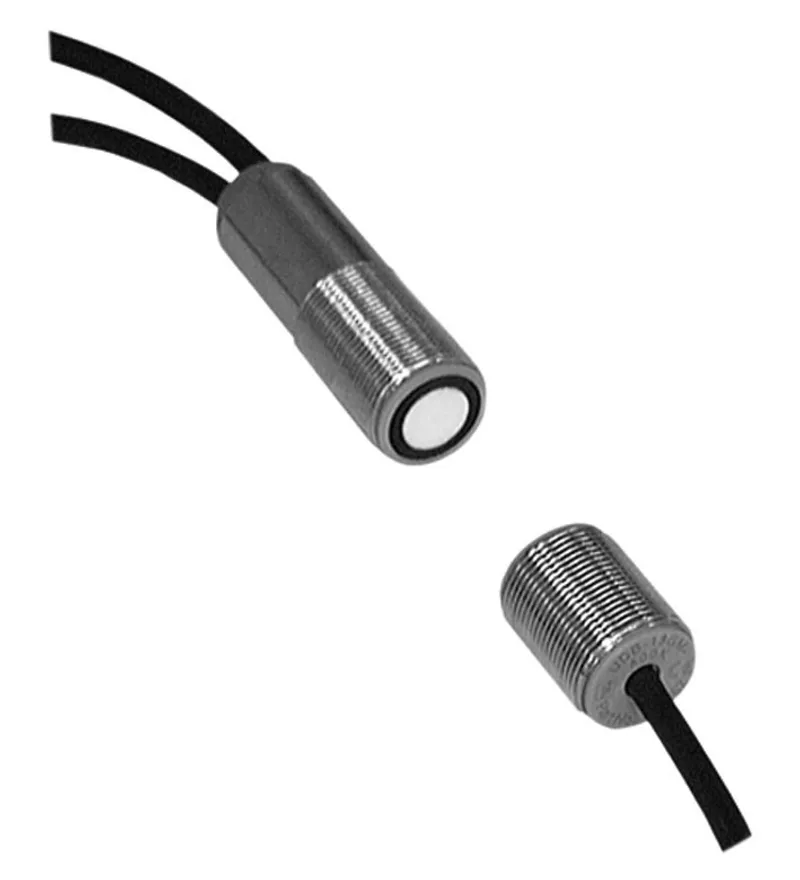

Pepperl Fuchs UGB-18GM50-255-2E3
Splice sensor
- MPN
- UGB-18GM50-255-2E3
- Category
- Double Sheet Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs UGB-18GM50-255-2E3?
Ultrasonic system for splice detection
Short version
Insensitive to printing, colors, and shining surfaces
Very high processing speeds are possible.
Ultrasonic system for splice detection, Short version, Insensitive to printing, colors, and shining surfaces, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: UGB-18GM, Operating voltage: 18 ... 30 V DC , ripple 10 %SS, Output type: 2 switch outputs PNP, NC, UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: cable PVC , 2 m
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 193008 |
| Sensing range | 20 ... 60 mm , optimal distance: 45 mm |
| Transducer frequency | 255 kHz |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green | Display: readiness |
| LED yellow | Display: splice detected |
| LED red | indication: no sheet detected (Air) |
Electrical specifications
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS UB |
| No-load supply current | < 60 mA I0 |
| Time delay before availability | < 500 ms tv |
Input
| Input type | Teach-In input 0-level: -UB ... -UB + 1V 1-level: +UB - 1 V ... +UB |
| Pulse length | ≥ 500 ms |
| Impedance | ≥ 10 kΩ |

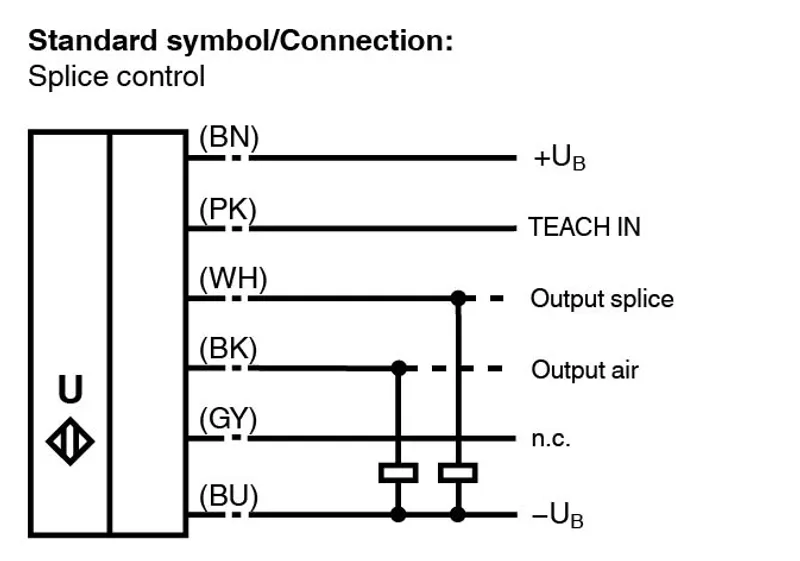

Output
| Output type | 2 switch outputs PNP, NC |
| Rated operating current | 2 x 100 mA , short-circuit/overload protected Ie |
| Voltage drop | ≤ 3 V Ud |
| Switch-on delay | ≤ 600 µs ton |
| Switch-off delay | ≤ 600 µs toff |
| Pulse extension | ≥ 120 ms programmable |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
Approvals and certificates
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | 0 ... 60 °C (32 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Connection type | cable PVC , 2 m |
| Core cross section | 0.14 mm2 |
| Degree of protection | IP67 |
| Material: Housing | nickel plated brass; plastic components: PBT |
| Material: Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Mass | 150 g |
| Dimensions: Length | 53 mm |
| Dimensions: Diameter | 18 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
UGB-18GM50-255-2E3: frequently asked questions
When can UGB-18GM50-255-2E3 be shipped?
UGB-18GM50-255-2E3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up UGB-18GM50-255-2E3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for UGB-18GM50-255-2E3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for UGB-18GM50-255-2E3, subject to availability and destination.

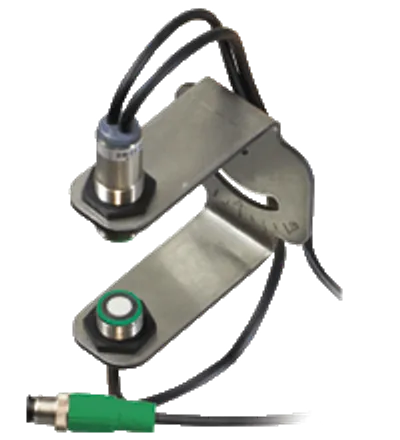

More Pepperl Fuchs parts
