Pepperl Fuchs UDC-18GS-3EP1-IO-0,2M-V19
Double sheet sensor
- MPN
- UDC-18GS-3EP1-IO-0,2M-V19
- Category
- Double Sheet Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs UDC-18GS-3EP1-IO-0,2M-V19?
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials
Insensitive to printing, colors, and shining surfaces
Very wide material spectrum, finest papers up to thin sheet metals as well as plastic- and metal foils
Perpendicular or inclined sensor mounting relative to the sheet plane possible
Integrated alignment aid
IO-Link Interface for process data, parameterization and diagnosis
Synchronization options
No teach-in required
Short version
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, Insensitive to printing, colors, and shining surfaces, Very wide material spectrum, finest papers up to thin sheet metals as well as plastic- and metal foils, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: UDC-18GM, Operating voltage: 18 ... 30 V DC , ripple 10 %SS, Interface type: IO-Link
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70120101-100005 |
| Sensing range | 20 ... 60 mm , optimal distance: 45 mm |
| Transducer frequency | approx. 255 kHz |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Memory
| Non-volatile memory | EEPROM |
| Write cycles | 300000 |
Indicators/operating means
| LED green | indication: single sheet detected flashing (1 Hz) - standby mode flashing with short break (1 Hz) - IO-Link mode |
| LED yellow | indication: no sheet detected (Air) |
| LED red | indication: double sheet detected flashing: device error |
Electrical specifications
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS UB |
| No-load supply current | ≤ 40 mA I0 |
| Power consumption | ≤ 550 mW P0 |
| Time delay before availability | ≤ 300 ms tv |
Interface
| Interface type | IO-Link |
| IO-Link revision | 1.1 |
| Device profile | Identification and Diagnosis - I&D |
| Process data | Input: 16 Bit - measurement value 8 Bit - selected threshold set 2 Bit - switching signals 3 Bit output: 8 Bit - threshold set 2 Bit - disable transducer 1 Bit |
| Vendor ID | 1 (0x0001) |
| Device ID | 3148290 (0x300A02) |
| Transfer rate | COM2 (38.4 kBit/s) |
| Min. cycle time | 2.8 ms |
| SIO mode support | yes |
| Compatible master port type | Class A (use adapter cable listed in accesories) Class B (use 3-pole adapter or 3-wire cable) |

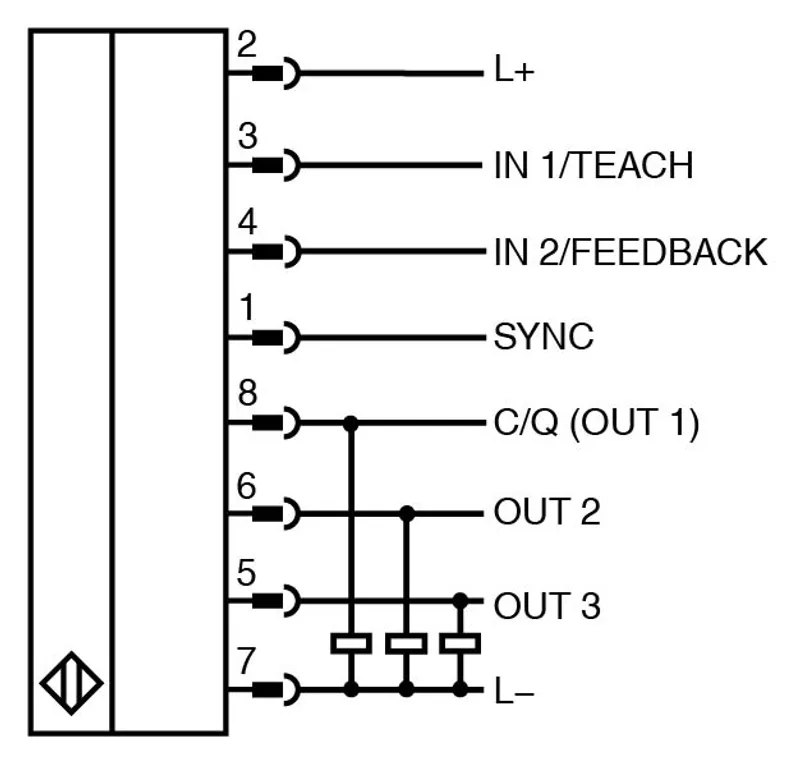

Input/Output 1
| Designation | SYNC |
| Input/output type | 1 synchronization connection, bidirectional |
| 0 Level | 0 ... 1 V |
| 1 Level | 2.5 V ... UB |
| Input impedance | > 22 kΩ |
| Output current | current source < 2.5 mA |
| Pulse length | 0.4 ... 3 ms with external control, low active |
| Synchronization frequency: Common mode operation | ≤ 230 Hz |
| Synchronization frequency: Multiplex operation | ≤ 230 Hz /n, n = number of sensors , n ≤ 10 |
Input/Output 2
| Designation | IN2/FEEDBACK |
| Input/output type | input or output programmable via IO-Link : input for selection of a threshold set (factory default) output as feedback output |
| Input type | digital input |
| Signal | 0-level: 0 ... + 1V 1-level: +UB - 1 V ... +UB |
| Input impedance | ≥ 60 kΩ |
| Pulse length | ≥ 100 ms |
| Output type | PNP |
| Rated operating current | 8 mA Ie |
| Voltage drop | < 3 V |
| Fusing | reverse polarity protected , overload and short-circuit protected |
Input
| Designation | IN1/TEACH |
| Input type | 0-level: 0 ... + 1V 1-level: +UB - 1 V ... +UB |
| Pulse length | ≥ 100 ms |
| Impedance | ≥ 60 kΩ |
Output
| Designation | OUT 1 ... 3 |
| Number | 3 |
| Output function | OUT 1: single sheet detected OUT 2: double sheet detected OUT 3: no sheet detected (air) |
| Output type | Push-pull (4 in 1) output ( Normally open/closed programmable ) output is LOW when event is detected: NPN = closed / PNP = open |
| Rated operating current | 100 mA per output Ie |
| Voltage drop | ≤ 3 V Ud |
| Switch-on delay | 15 ms (programmable) ton |
| Switch-off delay | 15 ms (programmable) toff |
| Pulse extension | can be activated (100 ms or IO-Link cycle time) |
| Fusing | reverse polarity protected , overload and short-circuit resistant |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 IEC 61131-9 / IO-Link V1.1.3 |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | 0 ... 60 °C (32 ... 140 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | fixed cable with plug |
| Housing length ultrasonic: Ultrasonic transmitter | 21 mm |
| Housing length ultrasonic: Ultrasonic receiver | 52 mm |
| Housing diameter ultrasonic: Ultrasonic transmitter | 18 mm |
| Housing diameter ultrasonic: Ultrasonic receiver | 18 mm |
| Degree of protection | IP65 |
| Material: Housing | Stainless steel 1.4305/AISI 303, polyamide plastic parts |
| Material: Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Connector: Threading | M12 x 1 |
| Connector: Number of pins | 8 |
| Cable: Cable diameter | 4.3 mm |
| Cable: Bending radius | 5 x diameter , fixed installation |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Length | approx. 200 mm L |
| Mass | 75 g |
| Tightening torque, fastening screws | max. 20 Nm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
- Datasheet UDC-18GS-3EP1-IO-0,2M-V19
- Installation and user instructions for offline parameterization of IO-Link sensors
- Instruction Manual
- Commissioning instruction for series UDC-18GS-*
- IO-Link Parameter-Datasheet UDC-18GS-3EP1-IO-0,2M-V19
- Manual UDC-/UDCM-*GS-*-IO*-Series Parameterization of Ultrasonic Double Sheet Sensors with IO-Link Interface
CAD & dimension drawings
