Pepperl Fuchs UDCM-30GM-085-3E3
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Double Sheet Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can UDCM-30GM-085-3E3 be shipped?
UDCM-30GM-085-3E3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up UDCM-30GM-085-3E3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for UDCM-30GM-085-3E3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for UDCM-30GM-085-3E3, subject to availability and destination.

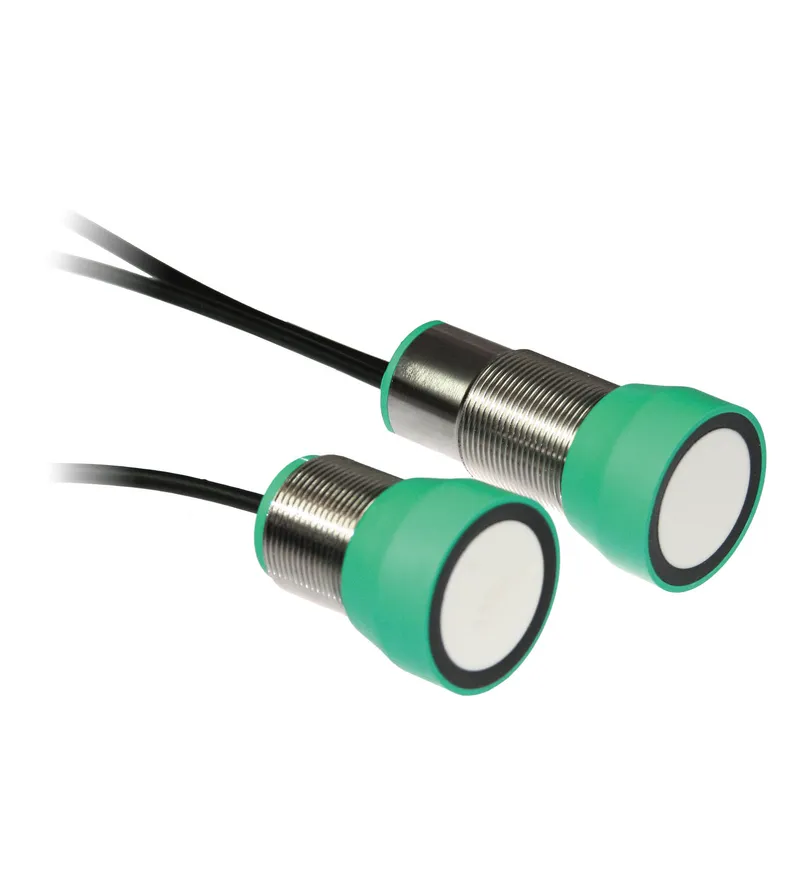

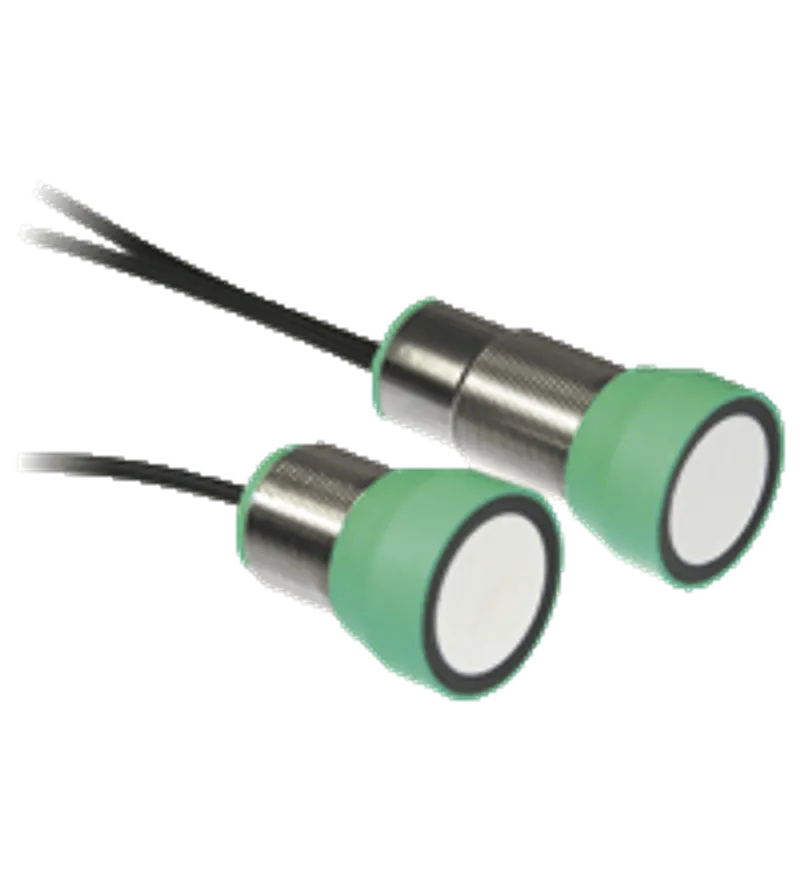

Double plate sensor. Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably sheet metal, No teach-in required, Insensitive to printing, colors, and shining surfaces, Sensing range: 50 ... 150 mm , optimal distance: 80 mm, Thread mold: M30, Construction type: Cylindrical, thread, Series: UDCM-30GM, Operating voltage: 18 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 3 switch outputs PNP, NC, UL approval: cULus Listed, General Purpose, Class 2 Power Source. Sensing range: 50 ... 150 mm , optimal distance: 80 mm. Transducer frequency: 85 kHz. LED green: indication: single sheet metal detected. LED yellow: Indication: No sheet metal detected (Air). LED red: indication: double sheet metal detected. Operating voltage: 18 ... 30 V DC , ripple 10 %SS. No-load supply current: < 200 mA. Time delay before availability: < 500 ms. Input type: Function input 0-level: -UB ... -UB + 1V1-level: +UB - 1 V ... +UB. Pulse length: ≥ 100 ms. Function: in normal operation mode, the function input has to be connected with UB+ or UB-. Impedance: ≥ 4 kΩ. Output type: 3 switch outputs PNP, NC. Rated operating current: 3 x 100 mA , short-circuit/overload protected. Voltage drop: ≤ 3 V. Switch-on delay: approx. 30 ms. Switch-off delay: approx. 30 ms. Pulse extension: min. 120 ms programmable. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Connection type: cable PVC , 2 m. Core cross section: 0.14 mm2. Degree of protection: IP65. Material: . Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: nickel plated brass; plastic components: PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 300 g. Dimensions: . Length90 mmDiameter40 mm: . Length: 90 mm. Diameter: 40 mm. Supplementary information: Switch settings of the external programming adapter: "output load": pull-down "output logic": inv
Specifications
General specifications
| Sensing range | 50 ... 150 mm , optimal distance: 80 mm |
| Transducer frequency | 85 kHz |
Indicators/operating means
| LED green | indication: single sheet metal detected |
| LED yellow | Indication: No sheet metal detected (Air) |
| LED red | indication: double sheet metal detected |
Electrical specifications
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS UB |
| No-load supply current | < 200 mA I0 |
| Time delay before availability | < 500 ms tv |
Input
| Input type | Function input 0-level: -UB ... -UB + 1V1-level: +UB - 1 V ... +UB |
| Pulse length | ≥ 100 ms |
| Function | in normal operation mode, the function input has to be connected with UB+ or UB- |
| Impedance | ≥ 4 kΩ |
Output

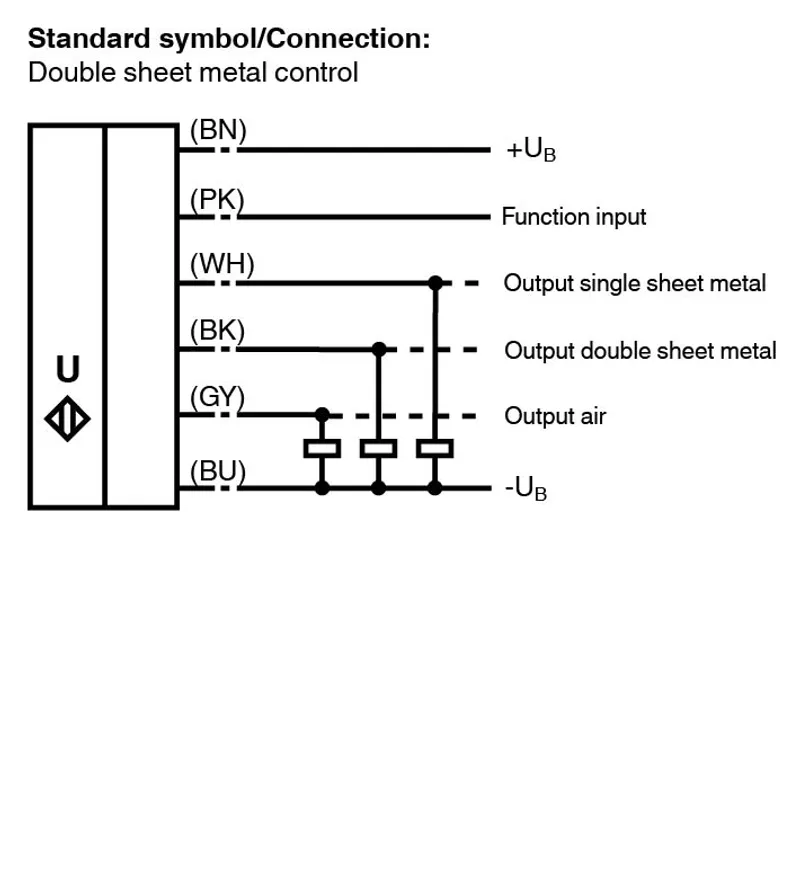

| Output type | 3 switch outputs PNP, NC |
| Rated operating current | 3 x 100 mA , short-circuit/overload protected Ie |
| Voltage drop | ≤ 3 V Ud |
| Switch-on delay | approx. 30 ms ton |
| Switch-off delay | approx. 30 ms toff |
| Pulse extension | min. 120 ms programmable |
Compliance with standards and directives
| Standard conformity | |
| StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 | Standards |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | 0 ... 50 °C (32 ... 122 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
Mechanical specifications
| Connection type | cable PVC , 2 m |
| Core cross section | 0.14 mm2 |
| Degree of protection | IP65 |
| Material | |
| Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam | Housing |
| Housing | nickel plated brass; plastic components: PBT |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Mass | 300 g |

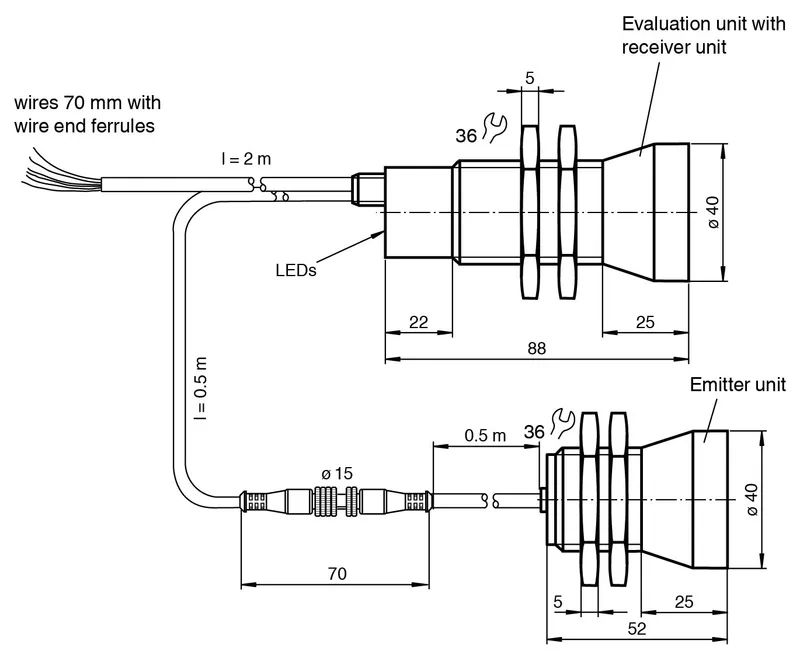

| Dimensions | |
| Length90 mmDiameter40 mm | Length |
| Length | 90 mm |
| Diameter | 40 mm |
General information
| Supplementary information | Switch settings of the external programming adapter: "output load": pull-down "output logic": inv |
