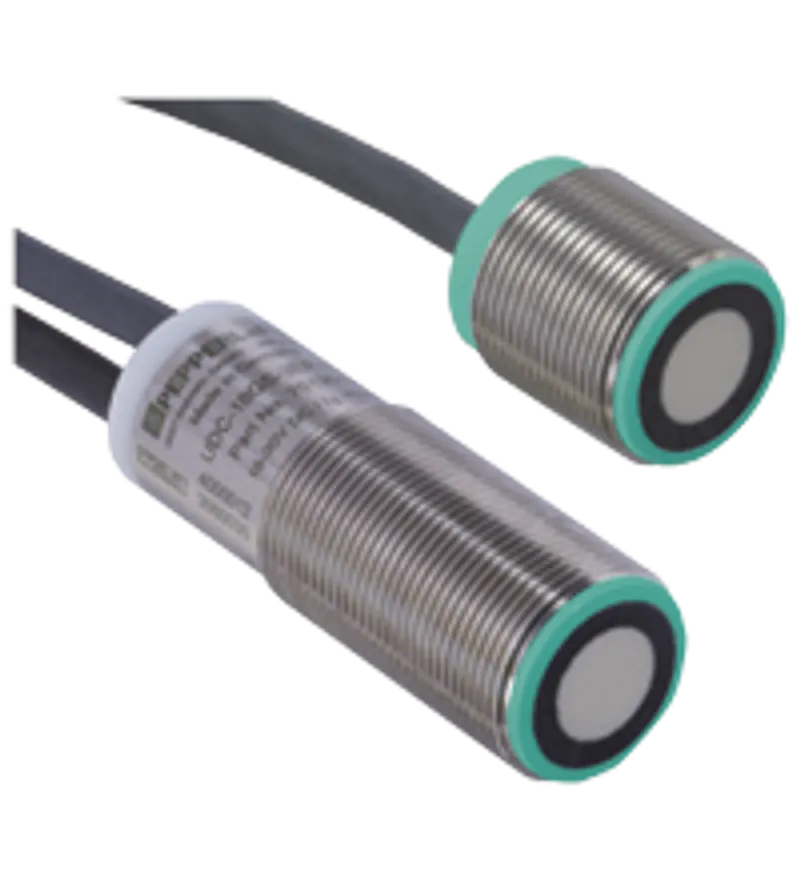

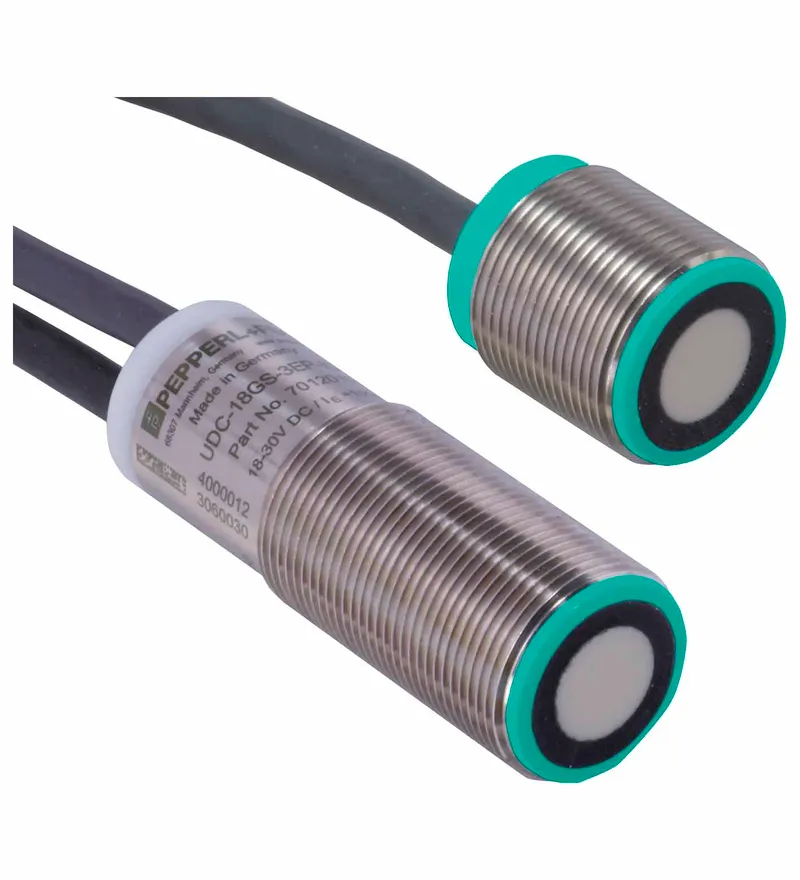

Pepperl Fuchs UDB-18GS-2E2-0,2M-V15
Double sheet sensor
- MPN
- UDB-18GS-2E2-0,2M-V15
- Category
- Double Sheet Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs UDB-18GS-2E2-0,2M-V15?
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials
Insensitive to printing, colors, and shining surfaces
Perpendicular or inclined sensor mounting relative to the sheet plane possible
Simplified commissioning
Integrated alignment aid
No teach-in required
Short version
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, Insensitive to printing, colors, and shining surfaces, Perpendicular or inclined sensor mounting relative to the sheet plane possible, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: UDB-18GS, Operating voltage: 18 ... 30 V DC , ripple 10 %SS, Output type: switching output: PNP , NO contact
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 70120101-100002 |
| Sensing range | 20 ... 60 mm , optimal distance: 45 mm |
| Transducer frequency | approx. 255 kHz |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Memory
| Non-volatile memory | EEPROM |
| Write cycles | 300000 |
Indicators/operating means
| LED green | indication: single sheet detected |
| LED yellow | indication: no sheet detected (Air) |
| LED red | indication: double sheet detected flashing: device error |
Electrical specifications
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS UB |
| No-load supply current | ≤ 40 mA I0 |
| Power consumption | ≤ 550 mW P0 |
| Time delay before availability | ≤ 300 ms tv |
Input
| Input type | Function input 0-level: -UB ... -UB + 1V 1-level: +UB - 1 V ... +UB |
| Pulse length | ≥ 100 ms |
| Impedance | ≥ 60 kΩ |
Output
| Designation | OUT 1, 2 |
| Number | 2 |
| Output function | OUT 1: single sheet detected OUT 2: double sheet detected |
| Output type | switching output: PNP , NO contact |
| Rated operating current | 100 mA per output Ie |
| Voltage drop | ≤ 3 V Ud |
| Switch-on delay | 15 ms ton |
| Switch-off delay | 15 ms toff |
| Fusing | reverse polarity protected , overload and short-circuit resistant |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | 0 ... 60 °C (32 ... 140 °F) |
| Storage temperature | -25 ... 70 °C (-13 ... 158 °F) |

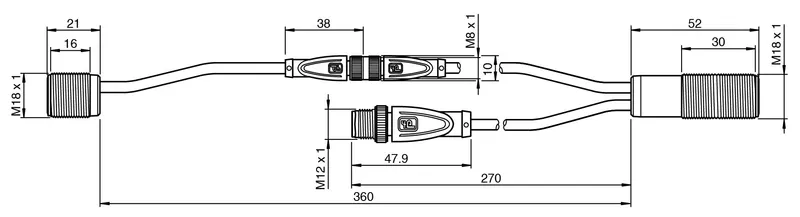

Mechanical specifications
| Connection type | fixed cable with plug |
| Housing length ultrasonic: Ultrasonic transmitter | 21 mm |
| Housing length ultrasonic: Ultrasonic receiver | 52 mm |
| Housing diameter ultrasonic: Ultrasonic transmitter | 18 mm |
| Housing diameter ultrasonic: Ultrasonic receiver | 18 mm |
| Degree of protection | IP54 |
| Material: Housing | Stainless steel 1.4305/AISI 303, polyamide plastic parts |
| Material: Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |

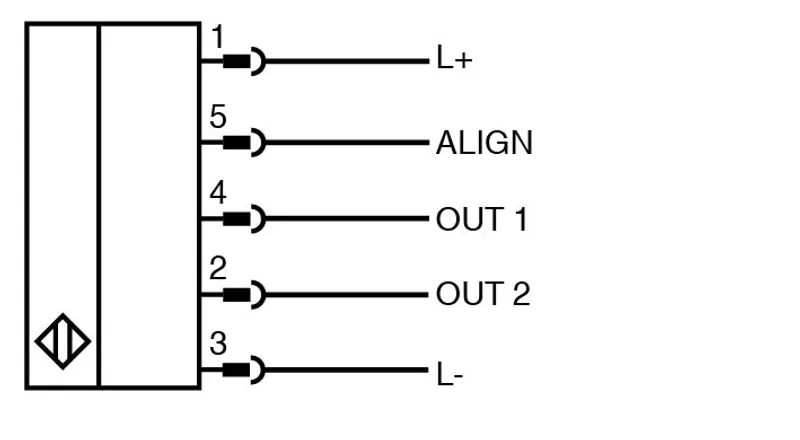

| Connector: Threading | M12 x 1 |
| Connector: Number of pins | 5 |
| Cable: Cable diameter | 4.3 mm |
| Cable: Bending radius | 5 x diameter , fixed installation |
| Cable: Material | PUR |
| Cable: Color | black |
| Cable: Length | approx. 200 mm L |
| Mass | 75 g |
| Tightening torque, fastening screws | max. 20 Nm |
