Pepperl Fuchs UDC-18GM50-400-3E0-610MM-6AMP
Double sheet sensor
- MPN
- UDC-18GM50-400-3E0-610MM-6AMP
- Category
- Double Sheet Sensors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Pepperl Fuchs UDC-18GM50-400-3E0-610MM-6AMP?
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers
Analog current and voltage output
Short version
No teach-in required
Function indicators visible from all directions
Insensitive to printing, colors, and shining surfaces
Material weight from 10 g/m2 up to over 2000 g/m2
Very wide material spectrum, finest papers up to thin sheet metals as well as plastic- and metal foils
Perpendicular or inclined sensor mounting relative to the sheet plane possible
Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers, Analog current and voltage output, Short version, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: UDC-18GM, Operating voltage: 18 ... 30 V DC , ripple 10 %SS, Output type: 3 switch outputs NPN, NO, UL approval: cULus Listed, General Purpose, Class 2 Power Source, Connection type: fixed cable with plug
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 913622 |
| Sensing range | 20 ... 60 mm , optimal distance: 45 mm |
| Transducer frequency | 395 kHz |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Indicators/operating means
| LED green | indication: single sheet detected |
| LED yellow | indication: no sheet detected (Air) |
| LED red | indication: double sheet detected |
Electrical specifications
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS UB |
| No-load supply current | < 50 mA I0 |
| Time delay before availability | < 500 ms tv |
Input
| Input type | Function input 0-level: -UB ... -UB + 1V 1-level: +UB - 1 V ... +UB |
| Pulse length | ≥ 100 ms |
| Impedance | ≥ 4 kΩ |
Output
| Output type | 3 switch outputs NPN, NO |
| Rated operating current | 3 x 100 mA , short-circuit/overload protected Ie |
| Voltage drop | ≤ 3 V Ud |
| Switch-on delay | approx. 15 ms (shorter response time on request) ton |
| Switch-off delay | approx. 15 ms (shorter response time on request) toff |
| Pulse extension | min. 120 ms programmable |
Compliance with standards and directives
| Standard conformity: Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
Approvals and certificates
| UL approval | cULus Listed, General Purpose, Class 2 Power Source |
Ambient conditions
| Ambient temperature | 0 ... 60 °C (32 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

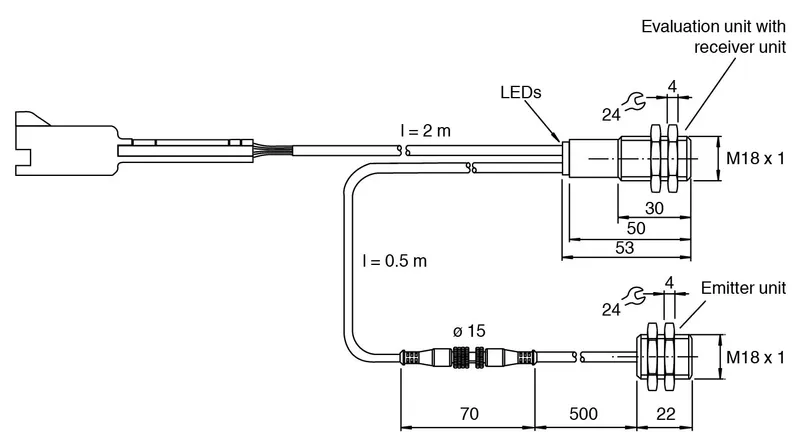

Mechanical specifications
| Connection type | fixed cable with plug |
| Degree of protection | IP67 |
| Material: Housing | nickel plated brass; plastic components: PBT |
| Material: Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam |
| Connector: Number of pins | 6 |
| Connector: Connection assembly | Tyco connector: 103653-5 Tyco terminal: 5-104505-7 |
| Cable: Cable diameter | 4.6 mm +/- 3 mm |
| Cable: Core cross section | 0.14 mm2 |
| Cable: Length | 2 m L |
| Dimensions: Length | 50 mm |
| Dimensions: Diameter | 18 mm |
| Mounting | with nuts, M18 |
General information
| Supplementary information | Switch settings of the external programming adapter: "output load": pull-up "output logic": inv |
