Schneider Electric

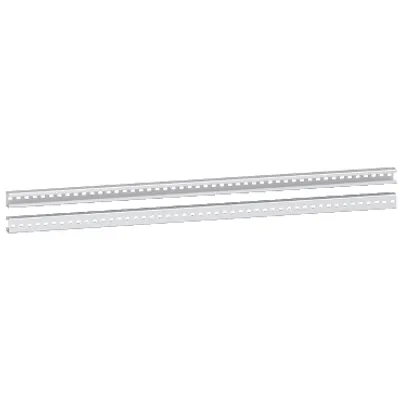

NSYTVR14Set of 2 heavy duty vertical rails for fixing of chassis and cross rails-1400 mm
PanelSeT SM Parts
Schneider Electric

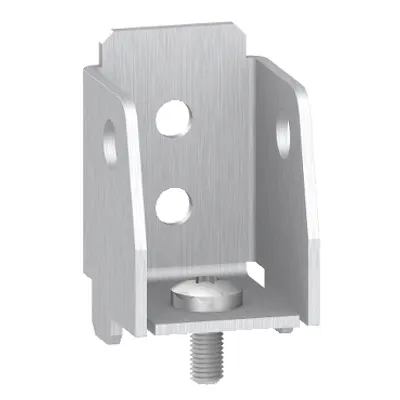

NSYMFBFixing brackets for internal fixing of vertical rails at the same level of base
Schneider Electric

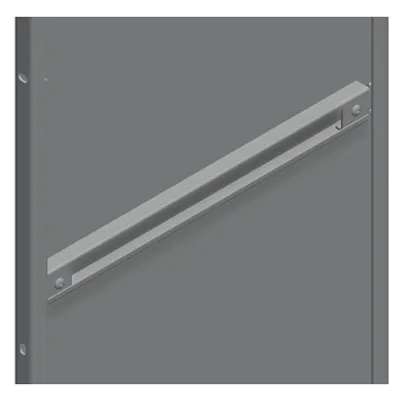

NSYMPRK8Reinforcement kit for mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W800mm , set of 2 profiles
Schneider Electric
NSYMPRK16Reinforcement kit for mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W1600mm , set of 2 profiles
Schneider Electric
NSYMPRK12Reinforcement kit for mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W1200mm , set of 2 profiles
Schneider Electric
NSYMPRK10Reinforcement kit for mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W1000mm , set of 2 profiles
Schneider Electric

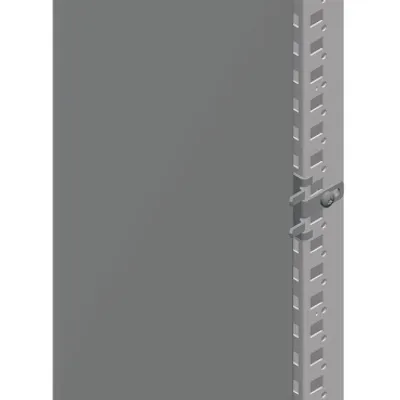

NSYSMPFBIntermediate fixing support of the mounting plate in back position, PanelSeT SFN, PanelSeT SF and SM, steel
Compare PanelSeT SM
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Quantity per set | Height | Width | Depth |
|---|---|---|---|---|---|
| NSYTVR14 | Technical upright | Set of 1 | 1400 mm, Real: 1275 mm | 45 mm | 34 mm |
| NSYMFB | Fixing bracket | Set of 1 | 36 mm | 74 mm | 144 mm |
| NSYFNM8 | Nut | Set of 50 | — | — | — |

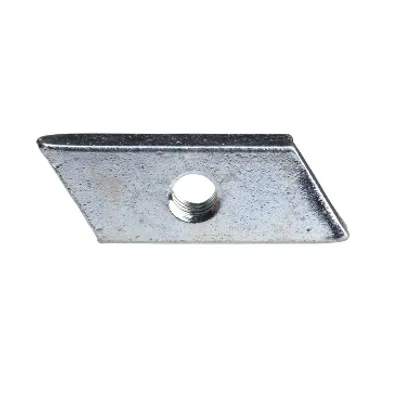

| NSYFNM6 | Nut | Set of 50 | — | — | — |
| NSYMPRK8 | Reinforcement kit | Set of 1 | 40 mm | Nominal: 800 mm | 20 mm |
| NSYMPRK16 | Reinforcement kit | Set of 1 | 40 mm | Nominal: 1600 mm | 20 mm |
| NSYMPRK12 | Reinforcement kit | Set of 1 | 40 mm | Nominal: 1200 mm | 20 mm |
| NSYMPRK10 | Reinforcement kit | Set of 1 | 40 mm | Nominal: 1000 mm | 20 mm |

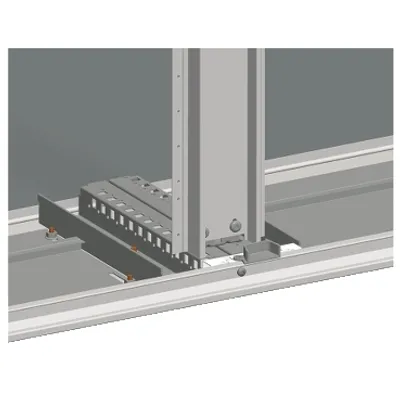

| NSYSTBR6 | Adjustment rail | Set of 4 | 50 mm | 160 mm | Nominal : 600 mm |
| NSYSTBR5 | Adjustment rail | Set of 4 | 50 mm | 160 mm | Nominal : 500 mm |
| NSYSTBR4 | Adjustment rail | Set of 4 | 50 mm | 160 mm | Nominal : 400 mm |
| NSYSMPFB | Intermediate support | Set of 10 | — | — | — |
