Schneider Electric NSYMFB

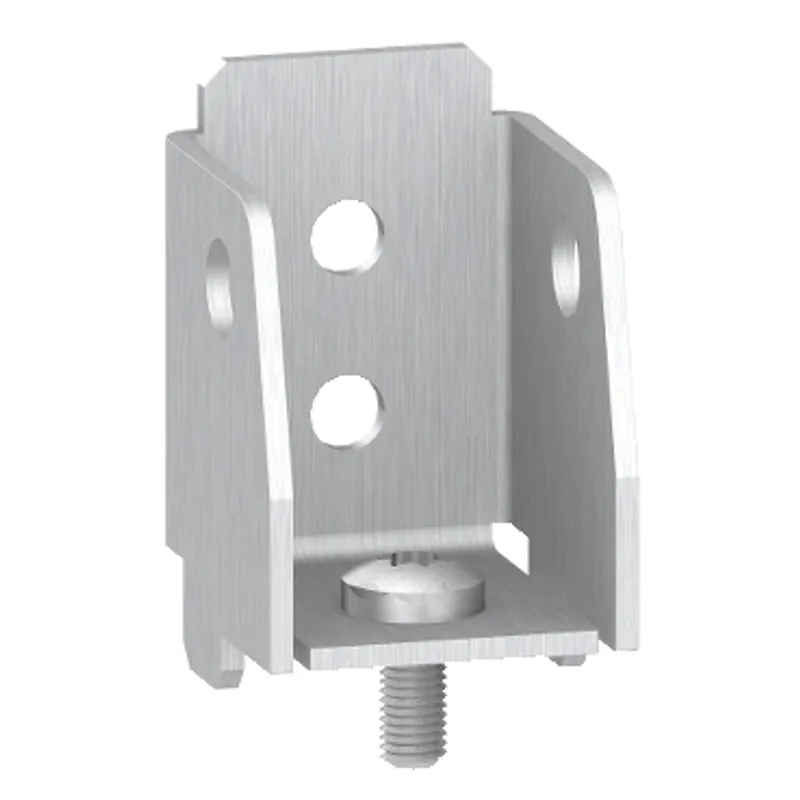

Fixing brackets for internal fixing of vertical rails at the same level of base
- MPN
- NSYMFB
- EAN
- 3606480065422
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMFB?
This is a steel fixing bracket for PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SD, PanelSeT SFX, PanelSeT SMX and PanelSeT SDX electrical enclosures. The height, width and depth are 36mm, 74mm and 144mm respectively. Mounting is adjustable in depth every 25mm. Fixed by screws of type M6 self-tapping. The product is composed by fixing elements and 4 brackets to fix the uprights. Anti-corrosion protection is ensured by zinc coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Fixing bracket |
| device application | Multi-purpose |
| Mounting support | Standard or technical uprights |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT PanelSeT SM SM, PanelSeT PanelSeT SD SD, PanelSeT SFX PanelSeT SFX, PanelSeT SMX PanelSeT SMX, PanelSeT PanelSeT SDX SDx |
| Device composition | Fixing elements, 4 brackets for fixing uprights |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By screws - screw type M6 self tapping |
| Adjustment | Adjustable in depth every 25 mm |
| Height | 36 mm |
| Width | 74 mm |
| Depth | 144 mm |
Packaging
| Package 1 | 1 PCE, 15.500 cm × 8.000 cm × 4.000 cm (L × W × H), 321.000 g |
| Package 2 | 500 PAM, 120.000 cm × 100.000 cm × 25.000 cm (L × W × H), 174.000 kg |
