Schneider Electric NSYSTBR6
PanelSeT SM top/bottom adjustment rail - depth 600 mm
- MPN
- NSYSTBR6
- EAN
- 3606480146756
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

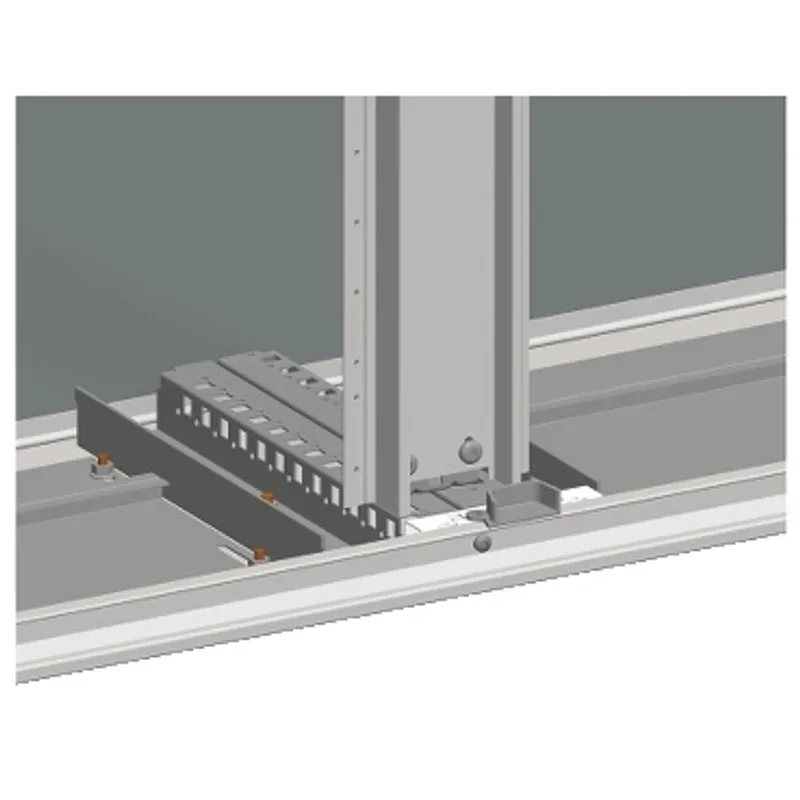

What is the Schneider Electric NSYSTBR6?
Spacial SM top/bottom adjustment rail. Depth is 600 mm. Multi-purpose mounting accessory. Mounting on bottom and top centre of enclosure. Destination is 2 mounting plates in 2-door enclosures and 2 vertical uprights in 2-door enclosures. Steel made, zinc coated surface finish. 2 rails, fixing elements included.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Adjustment rail |
| Range compatibility | PanelSeT SM |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Bottom and top centre of enclosure |
| Product destination | 2 mounting plates in 2-door enclosures, 2 vertical uprights in 2-door enclosures |
| Device composition | 4 rail, fixing elements |
| Quantity per set | Set of 4 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element |
| Height | 50 mm |
| Width | 160 mm |
| Depth | Nominal : 600 mm |
Packaging
| Package 1 | 1 PCE, 54.500 cm × 17.000 cm × 6.000 cm (L × W × H), 3.700 kg |
| Package 2 | 10 PAL, 120.000 cm × 47.500 cm × 29.000 cm (L × W × H), 37.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSTBR6: frequently asked questions
When can NSYSTBR6 be shipped?
NSYSTBR6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSTBR6 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSTBR6 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSTBR6, subject to availability and destination.
