Schneider Electric NSYSTBR5

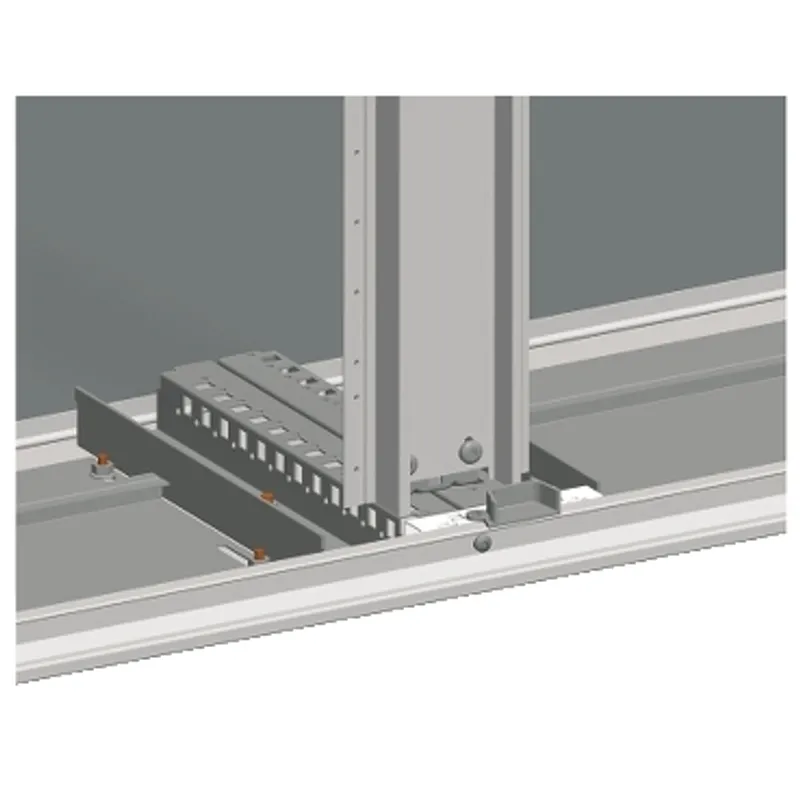

PanelSeT SM top/bottom adjustment rail - depth 500 mm
- MPN
- NSYSTBR5
- EAN
- 3606480146749
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSTBR5?
Spacial SM top/bottom adjustment rail. Depth is 500 mm. Multi-purpose mounting accessory. Mounting on bottom and top centre of enclosure. Destination is 2 mounting plates in 2-door enclosures and 2 vertical uprights in 2-door enclosures. Steel made, zinc coated surface finish. 2 rails, fixing elements included.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Adjustment rail |
| Range compatibility | PanelSeT SM |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Bottom and top centre of enclosure |
| Product destination | 2 mounting plates in 2-door enclosures, 2 vertical uprights in 2-door enclosures |
| Device composition | 4 rail, fixing elements |
| Quantity per set | Set of 4 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element |
| Height | 50 mm |
| Width | 160 mm |
| Depth | Nominal : 500 mm |
Packaging
| Package 1 | 1 PCE, 55.000 cm × 17.000 cm × 6.000 cm (L × W × H), 3.144 kg |
