Schneider Electric NSYTVR14

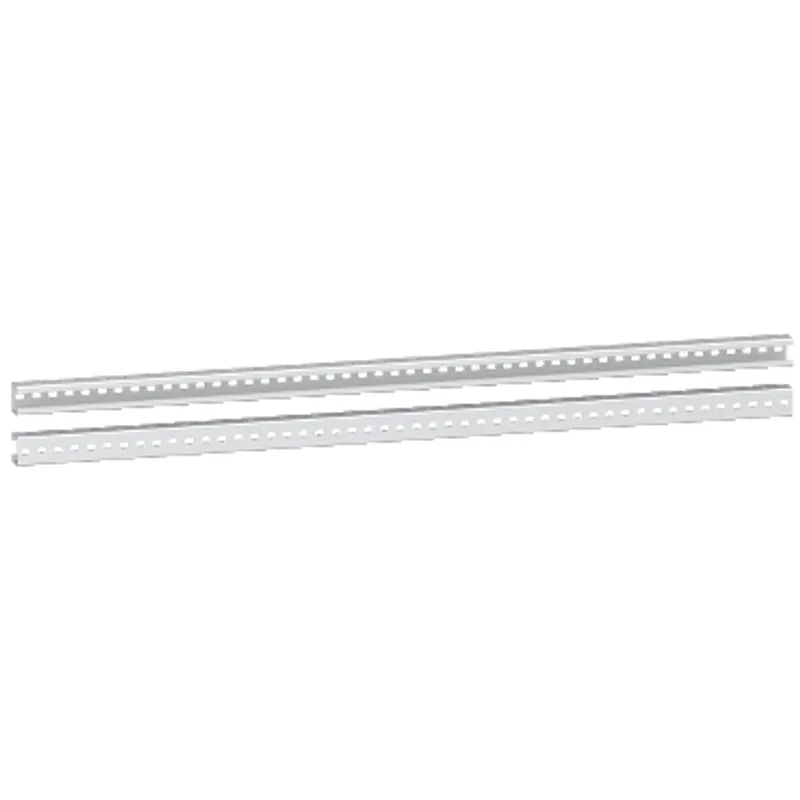

Set of 2 heavy duty vertical rails for fixing of chassis and cross rails-1400 mm
- MPN
- NSYTVR14
- EAN
- 3606480148729
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTVR14?
This is a set of steel technical upright for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. The height, width and depth are 1400mm, 45mm and 34mm respectively. The real height is 1275mm. The thickness is 2mm. The uprights are used for mounting chassis and fixing wiring accessories. Mounting is adjustable in depth every 25mm with caged nuts and adjustable in height every 2,5mm. It is a set of 2 uprights. Anti-corrosion protection is ensured by zinc coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Technical upright |
| device application | Multi-purpose |
| enclosure nominal dimensions | - H: 1400 mm |
| Mounting support | Mounting plate fixing bracket, Upright fixing bracket |
| Range compatibility | PanelSeT SF, PanelSeT SM, PanelSeT SD, PanelSeT SMX, PanelSeT SDx |
| Device composition | 2 upright |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Adjustment | Adjustable in depth every 25 mm with caged nuts, Adjustable in height every 2.5 mm with quarter-turn nuts |
| Height | 1400 mm, Real: 1275 mm |
| Width | 45 mm |
| Depth | 34 mm |
| thickness | 2 mm |
| Cut-out dimensions | 13 x 11 mm |
Packaging
| Package 1 | 1 PCE, 128.000 cm × 6.000 cm × 3.500 cm (L × W × H), 3.810 kg |
| Package 2 | 40 P2M, 200.000 cm × 120.000 cm × 50.000 cm (L × W × H), 185.000 kg |
