Schneider Electric
NSYSICR9040Integrated cross rails, PanelSeT SFN, PanelSeT SF, H90 W400mm, set of 2
PanelSeT SM Parts
Schneider Electric

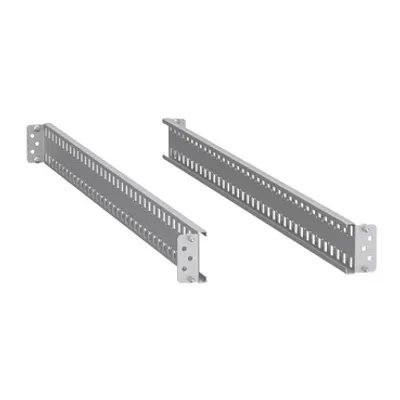

NSYSICR65100Integrated cross rails, PanelSeT SFN, PanelSeT SF, H65 W1000mm, set of 2
Schneider Electric

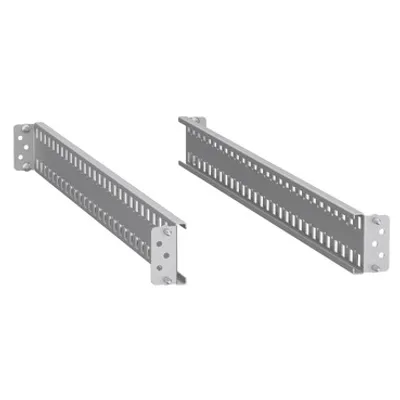

NSYSICR6580Integrated cross rails, PanelSeT SFN, PanelSeT SF, H65 W800mm, set of 2
Schneider Electric

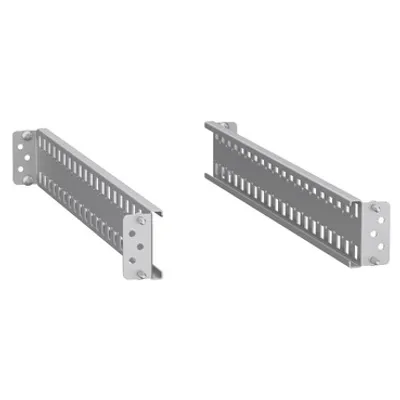

NSYSICR6560Integrated cross rails, PanelSeT SFN, PanelSeT SF, H65 W600mm, set of 2
Schneider Electric
NSYSUCR9060Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W600mm, 3 rows, set of 2
Schneider Electric
NSYSUCR9050Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W500mm, 3 rows, set of 2
Schneider Electric
NSYSUCR90180Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1800mm, 3 rows, set of 2
Schneider Electric
NSYSUCR90160Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1600mm, 3 rows, set of 2
Schneider Electric

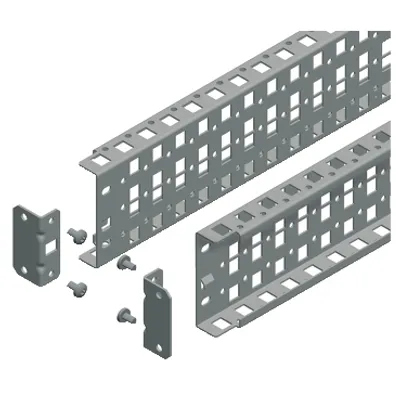

NSYSUCR90140Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1400mm, 3 rows, set of 2
Schneider Electric
NSYSUCR90120Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1200mm, 3 rows, set of 2
Schneider Electric
NSYSUCR6550Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W500mm, 2 rows, set of 2
Schneider Electric
NSYSUCR6540Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W400mm, 2 rows, set of 2
Schneider Electric

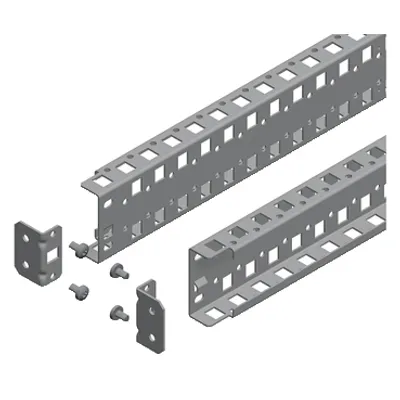

NSYSUCR65200Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W2000mm, 2 rows, set of 2
Schneider Electric
NSYSUCR65160Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W1600mm, 2 rows, set of 2
Schneider Electric

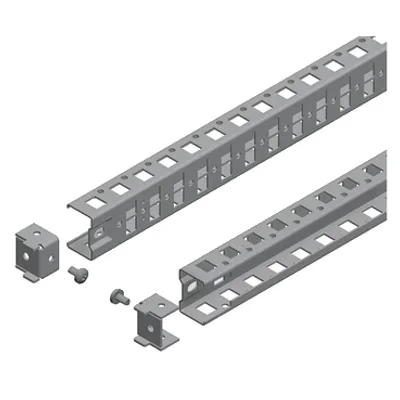

NSYSUCR4080Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W800mm, 1 row, set of 2
Schneider Electric
NSYSUCR4060Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W600mm, 1 row, set of 2
Schneider Electric

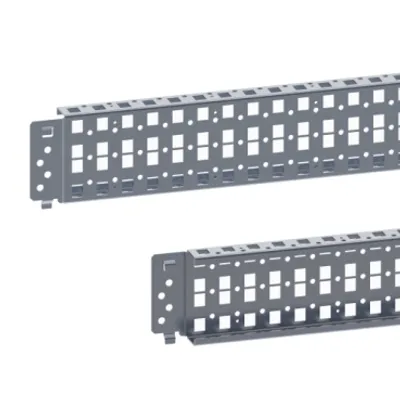

NSYSQCR9080Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W800mm, 3 rows, set of 2
Schneider Electric
NSYSQCR9050Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W500mm, 3 rows, set of 2
Schneider Electric
NSYSQCR9040Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W400mm, 3 rows, set of 2
Schneider Electric
NSYSQCR90120Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1200mm, 3 rows, set of 2
Schneider Electric
NSYSQCR90100Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1000mm, 3 rows, set of 2
Schneider Electric
NSYSQCR6580Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W800mm, 2 rows, set of 2
Schneider Electric

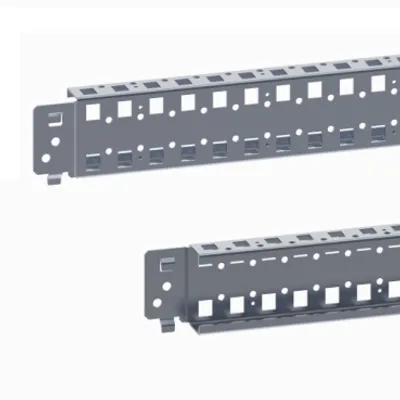

NSYSQCR6550Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W500mm, 2 rows, set of 2
Schneider Electric
NSYSQCR65120Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W1200mm, 2 rows, set of 2
Compare PanelSeT SM
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Nominal dimensions of the housing | Maximum load | Height | Width |
|---|---|---|---|---|---|
| NSYSICR9040 | Cross rail | - | 120 kg | 90 mm | Nominal: 400 mm, Useful: 309 mm |
| NSYSICR65100 | Cross rail | - | 50 kg | 65 mm | Nominal: 1000 mm, Useful: 909 mm |
| NSYSICR6580 | Cross rail | - | 70 kg | 65 mm | Nominal: 800 mm, Useful: 709 mm |
| NSYSICR6560 | Cross rail | - | 80 kg | 65 mm | Nominal: 600 mm, Useful: 509 mm |
| NSYSUCR9060 | Universal cross rail | - H: 600 mm | 110 kg | Nominal: 600 mm, Useful: 507 mm | 90 mm |
| NSYSUCR9050 | Universal cross rail | - H: 500 mm | 120 kg | Nominal: 500 mm, Useful: 407 mm | 90 mm |
| NSYSUCR90180 | Universal cross rail | - H: 1800 mm | — | Nominal: 1800 mm, Useful: 1707 mm | 90 mm |
| NSYSUCR90160 | Universal cross rail | - H: 1600 mm | — | Nominal: 1600 mm, Useful: 1507 mm | 90 mm |
| NSYSUCR90140 | Universal cross rail | - H: 1400 mm | — | Nominal: 1400 mm, Useful: 1307 mm | 90 mm |
| NSYSUCR90120 | Universal cross rail | - H: 1200 mm | 70 kg | Nominal: 1200 mm, Useful: 1107 mm | 90 mm |
| NSYSUCR6550 | Universal cross rail | - H: 500 mm | 90 kg | Nominal: 500 mm, Useful: 407 mm | 65 mm |
| NSYSUCR6540 | Universal cross rail | - H: 400 mm | 100 kg | Nominal: 400 mm, Useful: 307 mm | 65 mm |
| NSYSUCR65200 | Universal cross rail | - H: 2000 mm | — | Nominal: 2000 mm, Useful: 1907 mm | 65 mm |
| NSYSUCR65160 | Universal cross rail | - H: 1600 mm | — | Nominal: 1600 mm, Useful: 1507 mm | 65 mm |
| NSYSUCR4080 | Universal cross rail | - H: 800 mm | 40 kg | Nominal: 800 mm, Useful: 707 mm | 40 mm |
| NSYSUCR4060 | Universal cross rail | - H: 600 mm | 50 kg | Nominal: 600 mm, Useful: 507 mm | 40 mm |
| NSYSQCR9080 | Quick cross rails | - | 100 kg | Nominal: 800 mm, Useful: 710 mm | 90 mm |
| NSYSQCR9050 | Quick cross rails | - | 120 kg | Nominal: 500 mm, Useful: 410 mm | 90 mm |
| NSYSQCR9040 | Quick cross rails | - | 120 kg | Nominal: 400 mm, Useful: 310 mm | 90 mm |
| NSYSQCR90120 | Quick cross rails | - | 70 kg | Nominal: 1200 mm, Useful: 1110 mm | 90 mm |
| NSYSQCR90100 | Quick cross rails | - | 70 kg | Nominal: 1000 mm, Useful: 910 mm | 90 mm |
| NSYSQCR6580 | Quick cross rails | - | 70 kg | Nominal: 800 mm, Useful: 710 mm | 65 mm |
| NSYSQCR6550 | Quick cross rails | - | 90 kg | Nominal: 500 mm, Useful: 410 mm | 65 mm |
| NSYSQCR65120 | Quick cross rails | - | 50 kg | Nominal: 1200 mm, Useful: 1110 mm | 65 mm |
Common to all listed parts
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose |
| Quantity per set | Set of 1 |
| Adjustment | Adjustable with a pitch of 25 mm |
| thickness | 1.5 mm |
