Schneider Electric NSYMPRK10
Reinforcement kit for mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W1000mm , set of 2 profiles
- MPN
- NSYMPRK10
- EAN
- 3606485130736
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMPRK10?

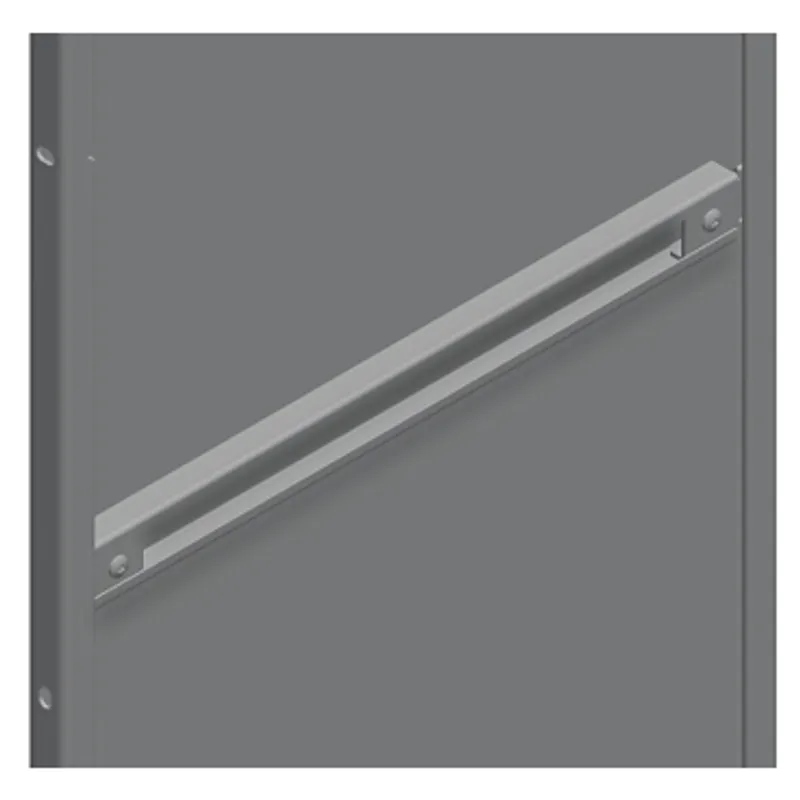

This is a reinforcement kit for transversal mounting plate. This product is suitable for PanelSeT SFN, PanelSeT SF and SFX electrical enclosures. It provides extra rigidity to the mounting plates and absorbs vibrations. The product can be used as a support for fixing very heavy elements. The width is 1000mm. It is made of zinc-coated steel. The product contains two profiles, four supports and fixing elements.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Reinforcement kit |
| Range compatibility | PanelSeT SF, PanelSeT SM |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Rear of mounting plate |
| Device composition | 2 profile, 4 support, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By screws |
| Height | 40 mm |
| Width | Nominal: 1000 mm |
| Depth | 20 mm |
| thickness | 1.5 mm |
Packaging
| Package 1 | 1 PCE, 85.500 cm × 5.000 cm × 4.500 cm (L × W × H), 2.172 kg |
| Package 2 | 30 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 65.160 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMPRK10: frequently asked questions
When can NSYMPRK10 be shipped?
NSYMPRK10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMPRK10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMPRK10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMPRK10, subject to availability and destination.
