Schneider Electric NSYSMPFB

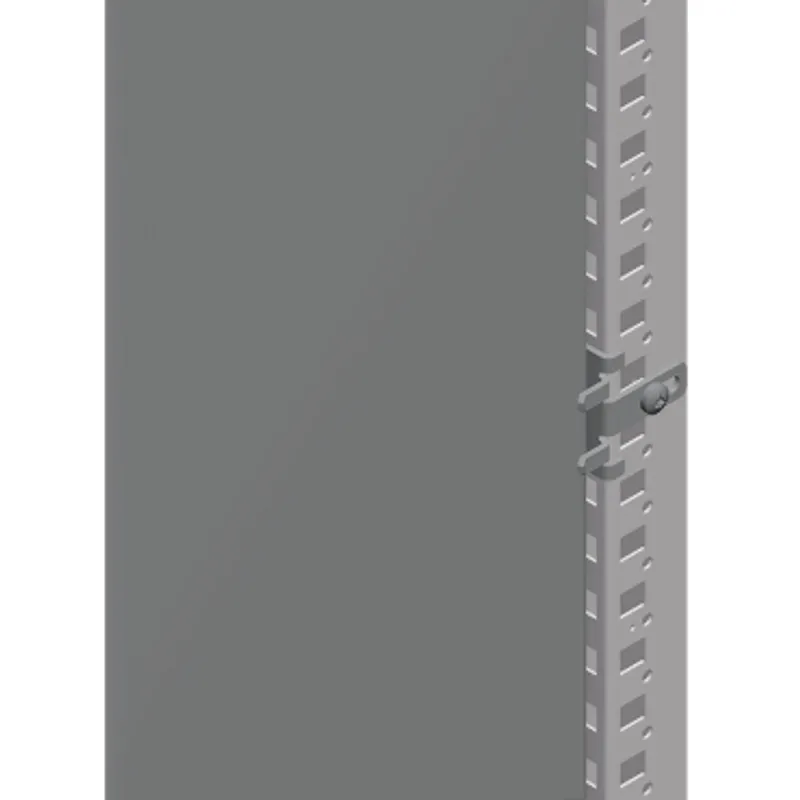

Intermediate fixing support of the mounting plate in back position, PanelSeT SFN, PanelSeT SF and SM, steel
- MPN
- NSYSMPFB
- EAN
- 3606485132136
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSMPFB?
This is and intermediate fixing of the mounting plate, located in the back of the enclosure. The product is suitable for PanelSeT SFN, PanelSeT SF/SFX and PanelSeT SM electrical enclosures. It brings an aditional support when fixing of the mounting plate, at any height of the plate when the plate is mounted in the back of the enclosure. The supports minimize the vibration of the plate during the transport and operation of the panel. The product is made of zinc-coated steel. For PanelSeT SFN and PanelSeT SF/SFX the supports are fixed to the structure when the plate is already located in the back of the enclosure. In case of PanelSeT SM, the supports are fixed on light cross-rails or on 40 mm (one row) universal or on quick-fixing cross-rails. The cross rails are not supplied. The set contains ten units and fixing elements. To be ordered by multiples of 10.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Intermediate support |
| Range compatibility | PanelSeT SF, PanelSeT SM |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | On back side of enclosure |
| Product destination | For mounting plate |
| Device composition | 1 support, fixing elements |
| Quantity per set | Set of 10 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element |
| Adjustment | At any height of the mounting plate |
Packaging
| Package 1 | 1 PCE, 5.500 cm × 5.400 cm × 3.200 cm (L × W × H), 63.000 g |
| Package 2 | 10 BB1, 12.000 cm × 16.500 cm × 8.000 cm (L × W × H), 632.000 g |
