Cable-Pull Rotary Encoders Parts
Compare Cable-Pull Rotary Encoders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Measuring length | Construction type | Material: Flange | Mass |
|---|---|---|---|---|---|

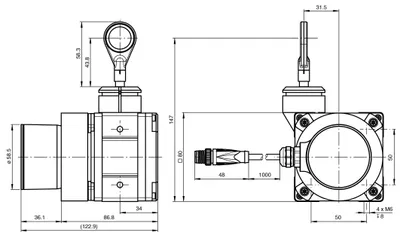

| ECI30PL-01A1A-UD1BY:YY | 70202687 | 1000 mm | 80 mm | aluminum, blank | 1900 g |

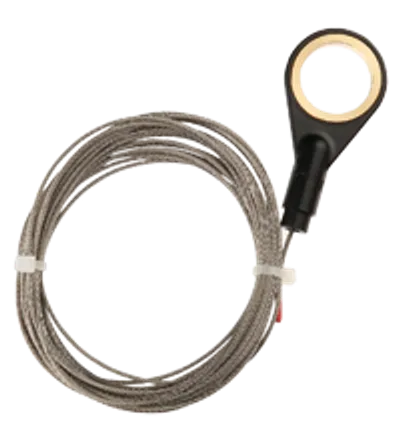

| ACC-PACK-SL*20/GS130/PL | 70174012 | 20 m | 130 mm | — | 200 g |
| ACC-PACK-SL*30/GS130/PL | 70174013 | 30 m | 130 mm | — | 300 g |
| ECN40HD-* | T175242 | 5000 ... 20000 mm | 190 mm | — | — |
| ECN10TL-* | T174181 | 3000 ... 10000 mm | 80 mm, 130 mm, 190 mm | — | — |
| ECN30PL-* | T172461 | 1000 ... 60000 mm | 80 mm, 130 mm, 190 mm | — | — |

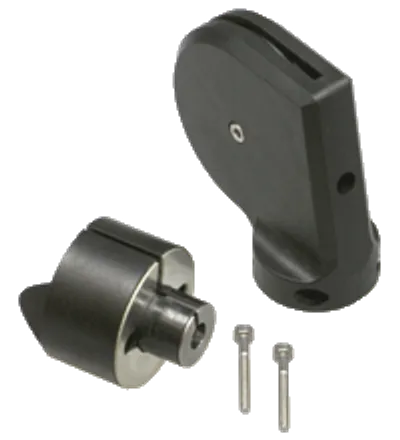

| SL-RP/GS80 | 203843 | — | — | — | 100 g |

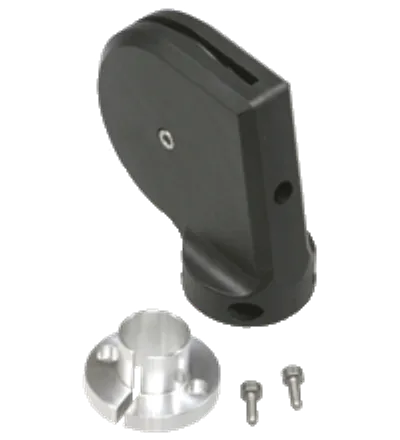

| SL-RP/GS130/GS190 | 203844 | — | — | — | 100 g |

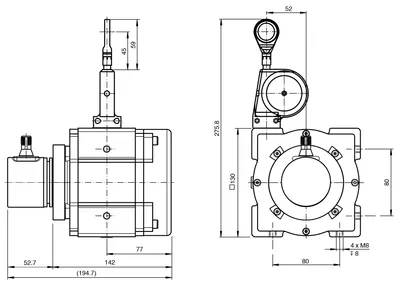

| ECA30PL-05A4A-Y16BD:NN:01 | 70175204 | 5000 mm | 130 mm | anodized aluminum | 2888 g |

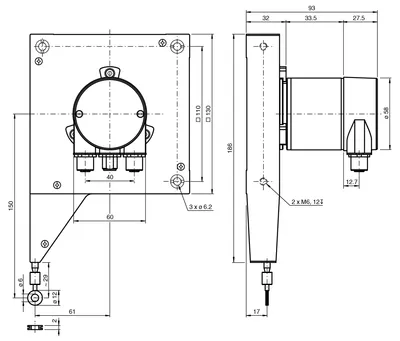

| ECA10TL-05BNP-B25AZ:OE | 270910-100300 | 5000 mm | 130 mm | Aluminum | approx. 1200 g |

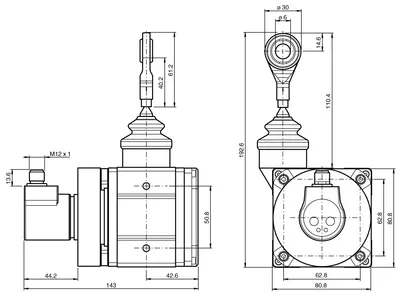

| ECA30PL-02C1A-I42BD:X3 | 270910-100073 | 2000 mm | 130 mm | anodized aluminum | 2888 g |

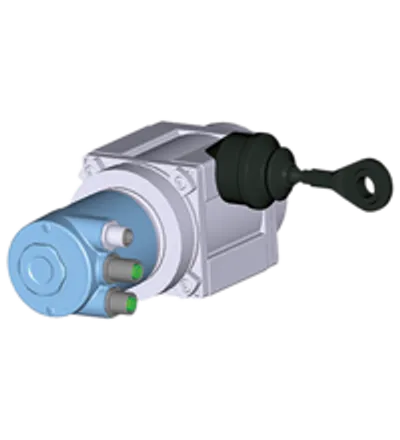

| ECA30PL-03C1A-B25AY:OE:01 | 70124506 | 3000 mm | 80 mm | anodized aluminum | 1870 g |

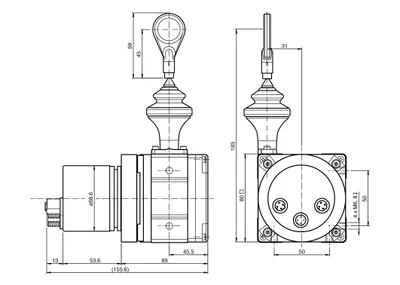

| ECA21IL-03A1A-B17BP:NN | 270910-100196 | 3000 mm | 80 mm | anodized aluminum | 1400 g |

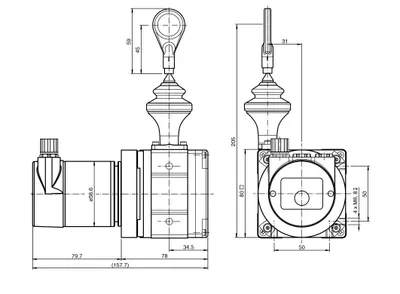

| ECA21IL-02A1A-B16AN:OE1212 | 70115513 | 2000 mm | 80 mm | anodized aluminum | 1900 g |
| ECN21IL-* | T192302 | 2000 ... 5000 mm | 80 mm, 130 mm | — | — |
| ECA21IL-02A1A-B17BP:NN | 270910-100214 | 2000 mm | 80 mm | anodized aluminum | 1400 g |

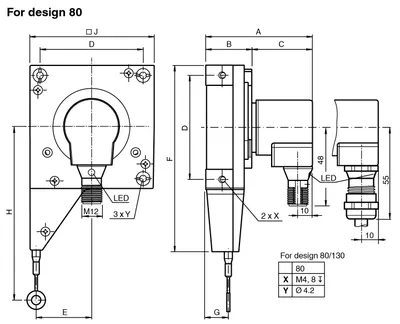

| ECA10TL-03BNY-B20BD:01 | 324247 | 3000 mm | 80 mm | Aluminum | — |
| ECA30PL-05A4A-B16BD:NN | 270910-100123 | 5000 mm | 130 mm | anodized aluminum | 2888 g |

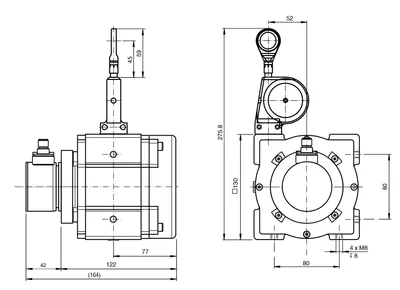

| ECI30PL-05A4A-UD1BE:02 | 270910-100122 | 5000 mm | 130 mm | anodized aluminum | 2888 g |

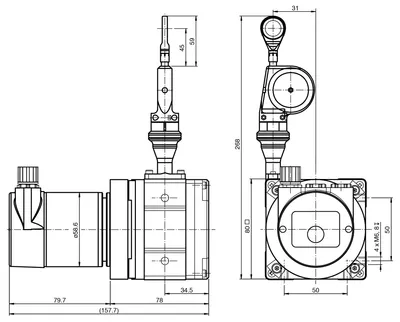

| ECA21IL-02A4A-B16AN:OE1212 | 70124733 | 2000 mm | 80 mm | anodized aluminum | 1900 g |

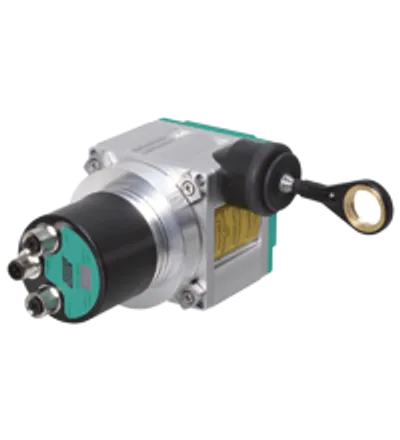

| ECA30PL - PROFINET | T183461 | 1000 ... 60000 mm | 80 mm, 130 mm, 190 mm | Aluminum | — |

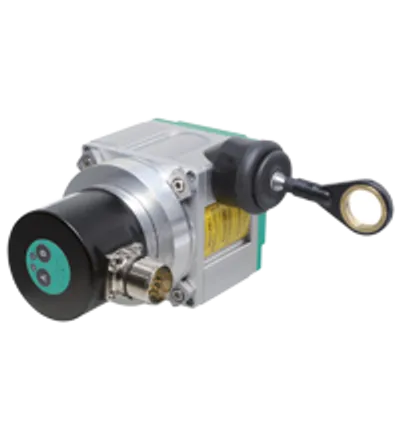

| ECA30PL - SSI | T181402 | 1000 ... 60000 mm | 80 mm, 130 mm, 190 mm | Aluminum | — |

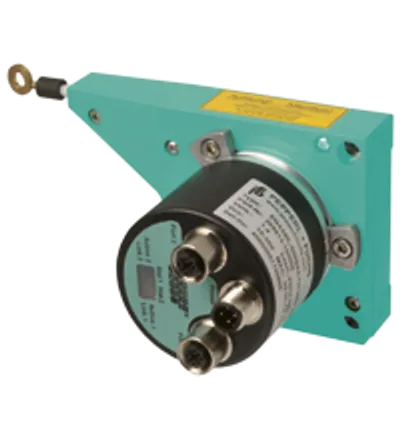

| ECA10TL - PROFINET | T178005 | 3000 ... 10000 mm | 80 mm, 130 mm, 190 mm | Aluminum | — |

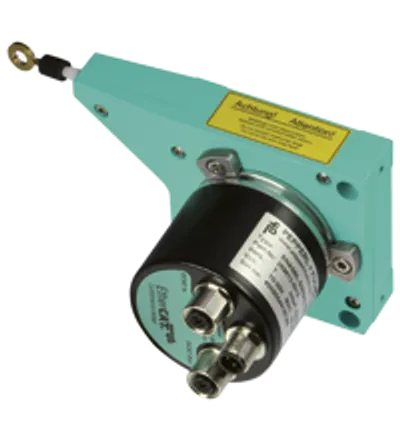

| ECA10TL - EtherCAT | T176985 | 3000 ... 10000 mm | 80 mm, 130 mm, 190 mm | Aluminum | — |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
