Pepperl Fuchs ECN40HD-*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable-Pull Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECN40HD-* be shipped?
ECN40HD-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECN40HD-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECN40HD-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECN40HD-*, subject to availability and destination.

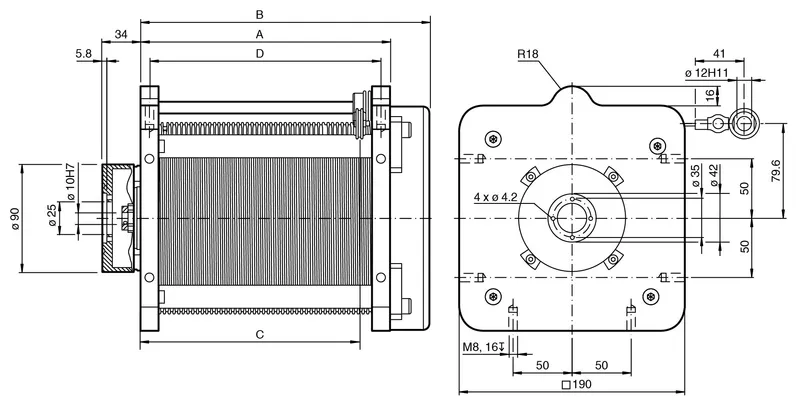

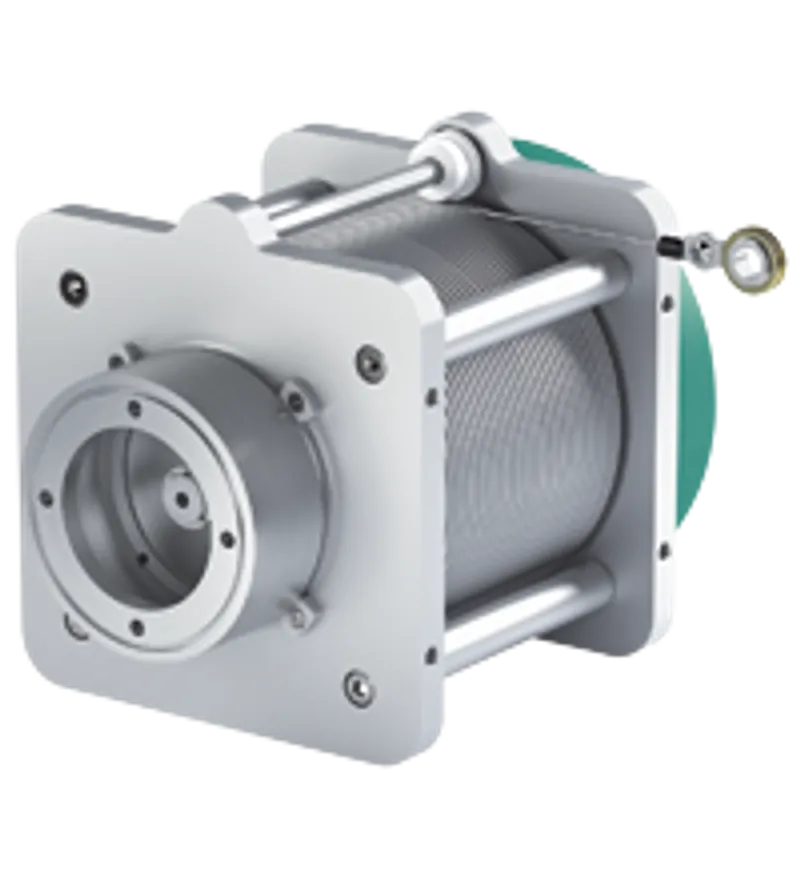

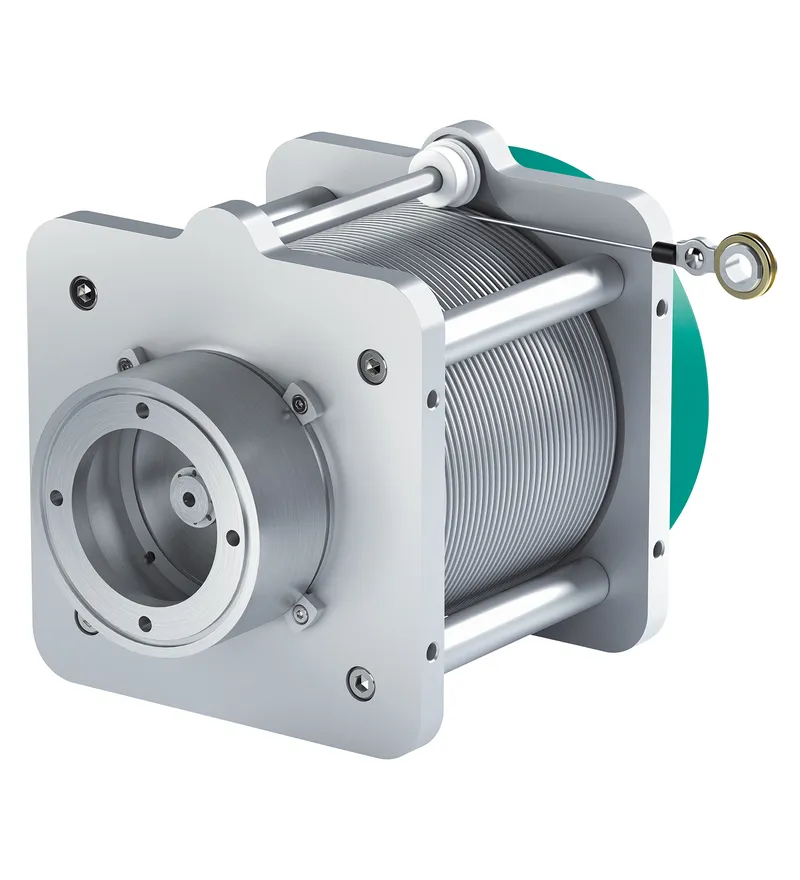

Cable pull. Cable pull, Open cable pull system, Up to 20 m of measuring cable, Measuring cable diameter of 2 mm, Drum with grooving (Lebus spooling) to increase service life and accuracy, Ball joint as standard cable attachment point allows the attachment point to move with various degrees of freedom and prevents the measuring cable from kinking, Construction type: 190 mm. Device type: Heavy duty. Measuring length: 5000 ... 20000 mm. Drum perimeter: 500 mm. Construction type: 190 mm. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Rope diameter: 2 mm. Tension force at rope: 22 ... 37 N. Retraction speed: 4 m/s. Degree of protection: IP65. Material: . Housinganodized aluminumSpring housinglacquer-coated aluminumRopeStainless steel 1.4401/316, plastic sheathing: . Housing: anodized aluminum. Spring housing: lacquer-coated aluminum. Rope: Stainless steel 1.4401/316, plastic sheathing. Life span: up to 106 Cycles. Scope of delivery: Shaft coupling for attaching a rotary encoder , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF
Specifications
General specifications
| Device type | Heavy duty |
| Measuring length | 5000 ... 20000 mm |
| Drum perimeter | 500 mm |
| Construction type | 190 mm |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
Mechanical specifications
| Rope diameter | 2 mm |
| Tension force at rope | 22 ... 37 N |
| Retraction speed | 4 m/s |
| Degree of protection | IP65 |
| Material | |
| Housinganodized aluminumSpring housinglacquer-coated aluminumRopeStainless steel 1.4401/316, plastic sheathing | Housing |
| Housing | anodized aluminum |
| Spring housing | lacquer-coated aluminum |
| Rope | Stainless steel 1.4401/316, plastic sheathing |
| Life span | up to 106 Cycles |
General information
| Scope of delivery | Shaft coupling for attaching a rotary encoder , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF |
