Pepperl Fuchs ECA10TL - PROFINET

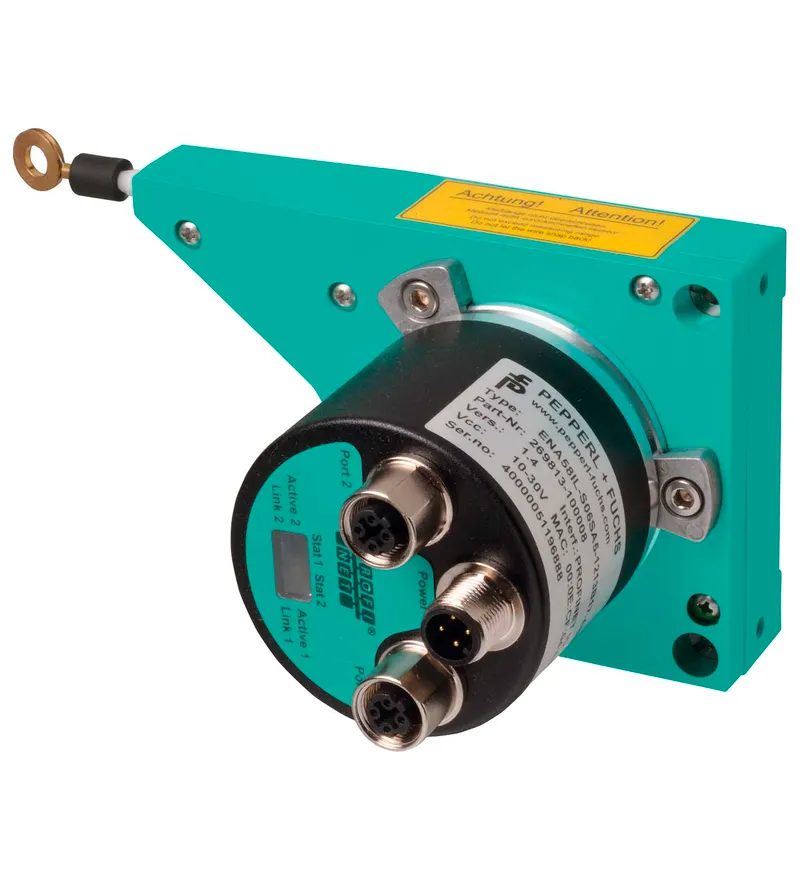

Cable pull rotary encoder
- MPN
- ECA10TL - PROFINET
- Category
- Cable-Pull Rotary Encoders
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs ECA10TL - PROFINET?
Solid yet lightweight plastic construction
Compact, slim design (the shaft of the mounted rotary encoder is used to provide the function of the drum bearing)
Coupling-free adaptation
Wide range of mounting options
Rust and acid-resistant measuring cable
Very high level of linearity and repeatability
PROFINET interface
Free of wear magnetic sampling
Cable pull rotary encoder with PROFINET interface, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Wide range of mounting options, Rust and acid-resistant measuring cable, Interface: PROFINET, Detection type: magnetic sampling, Construction type: 80 mm, 130 mm, 190 mm
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T178005 |
| Detection type | magnetic sampling |
| Device type | Target line with PROFINET interface |
| Measuring length | 3000 ... 10000 mm |

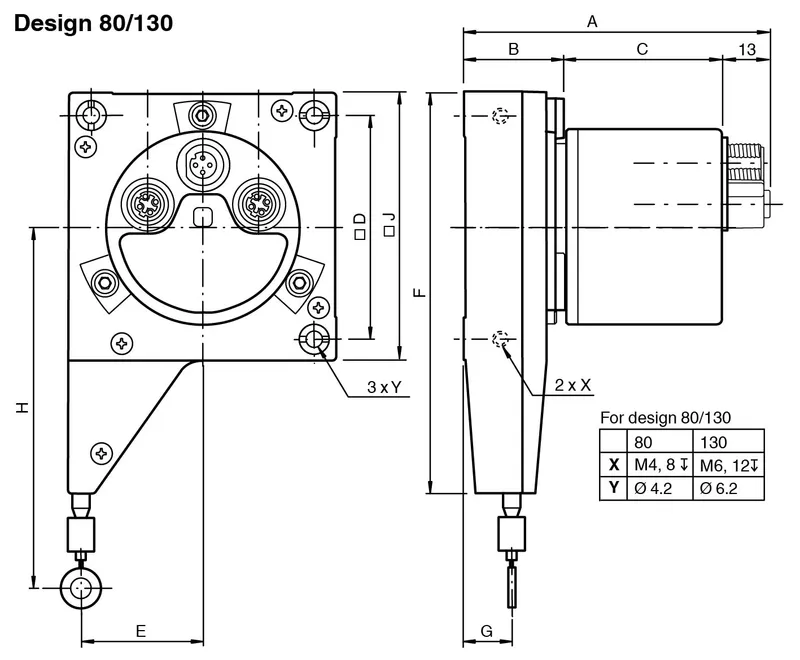

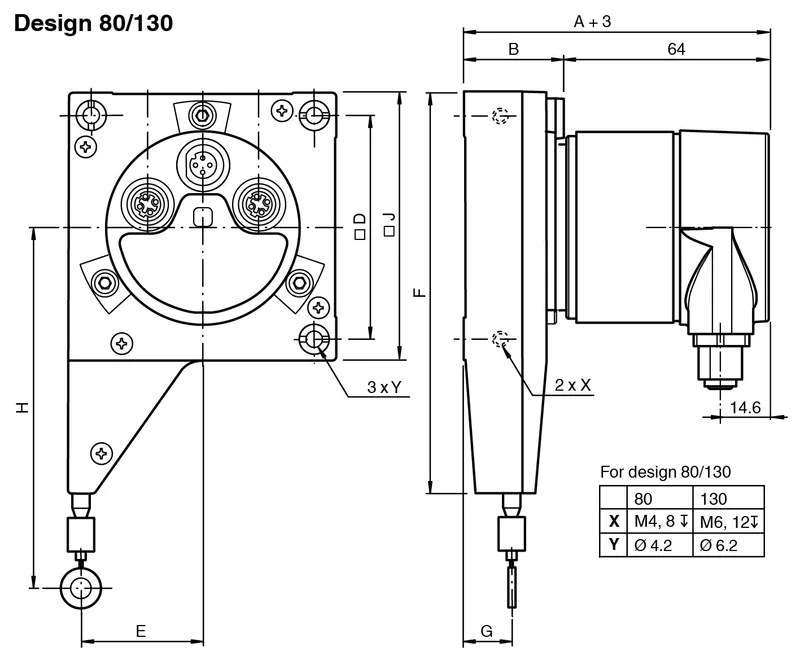

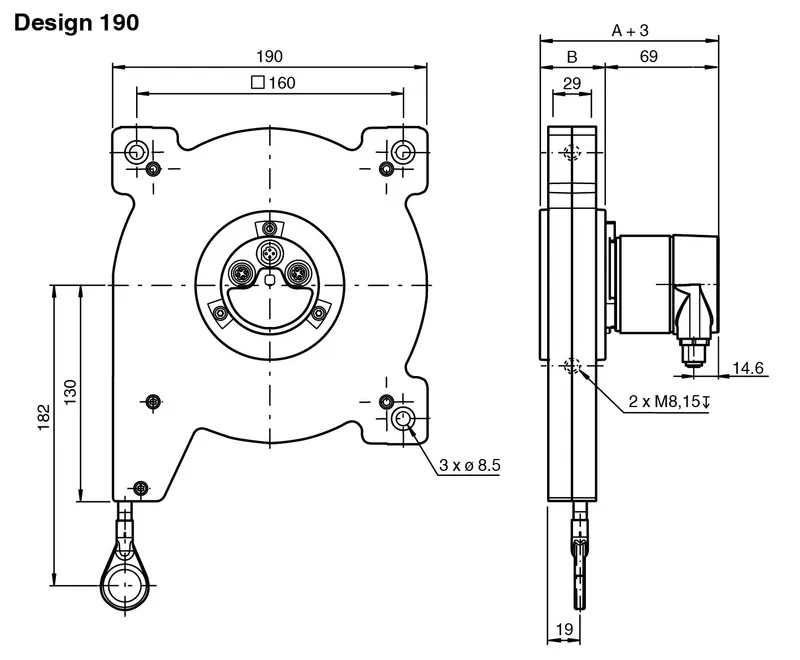

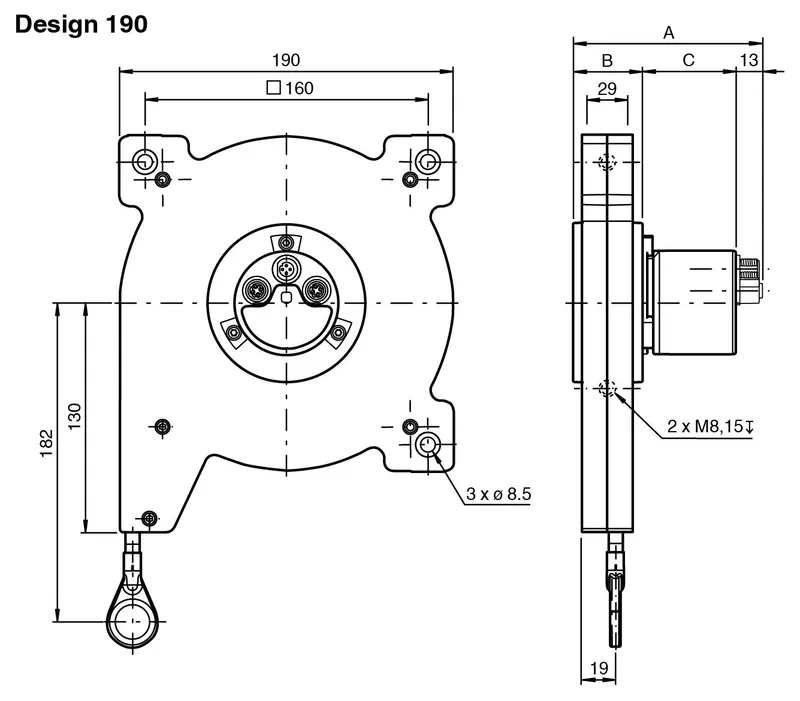

| Construction type | 80 mm, 130 mm, 190 mm |
| Resolution | Cable pull:80 mm design: 0,028 mm 130 mm design: 0,047 mm 190 mm design: 0,068 mm Encoder: 25 Bit (13 Bit/revolution) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Power consumption | approx. 4 W P0 |
| Output code | binary code |
| Code course (counting direction) | adjustable |
Interface
| Transfer rate | 100 MBit/s |
Connection
| Connector | Ethernet: 2 sockets M12 x 1, 4-pin, D-coded Supply: 1 plug M12 x 1, 4-pin, A-coded |
Standard conformity
| Degree of protection | acc. DIN EN 60529 |
| Connection side | connector models: IP65 Cable pull: IP50 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Operating temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | 98 % , no moisture condensation |
Mechanical specifications
| Rope diameter | 0.55 mm |
| Material: Housing | nickel-plated steel , painted |
| Material: Cable pull | design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17 |
| Material: Flange | Aluminum |
| Material: Rope | Stainless steel 1.4401/316 |
| Life span | up to 106 Cycles |
