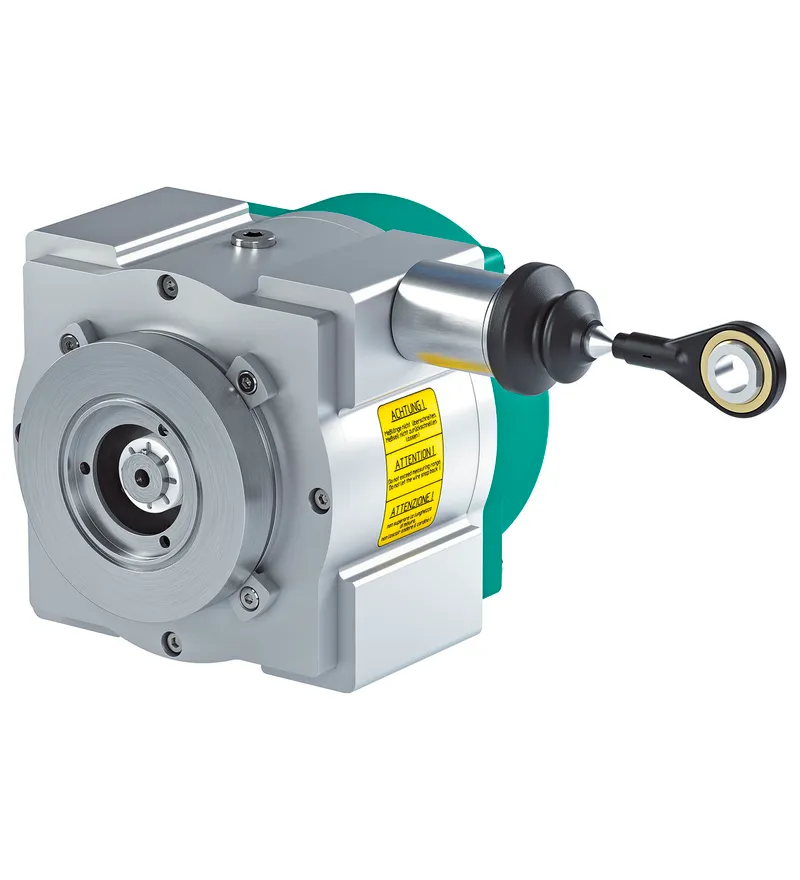

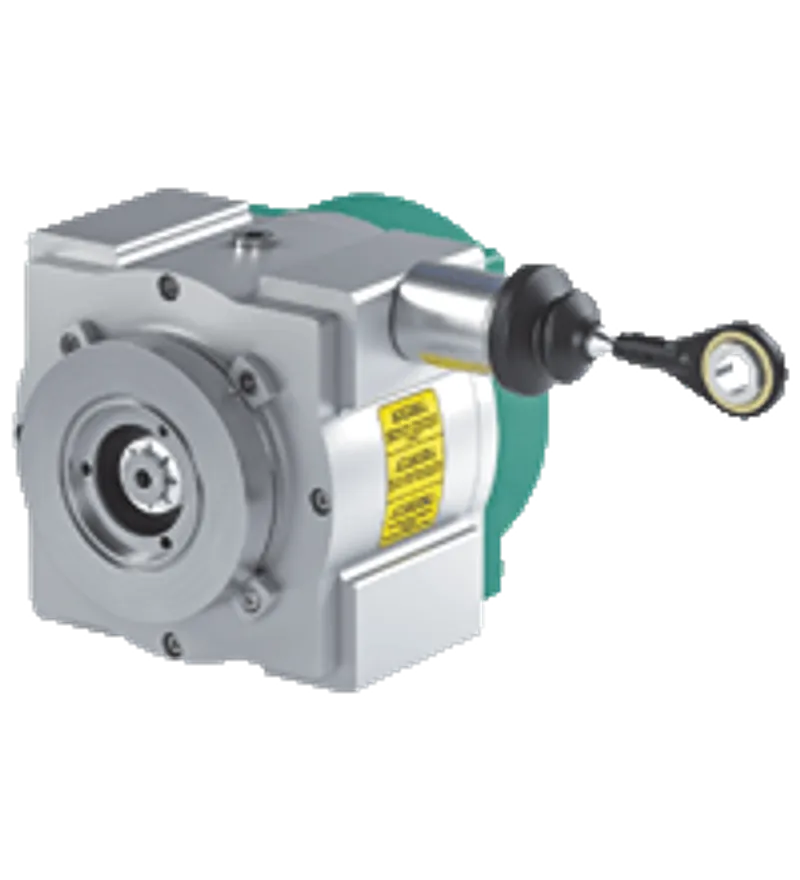

Pepperl Fuchs ECN30PL-*

Cable pull

MPN: ECN30PL-*
Category: Cable-Pull Rotary Encoders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs ECN30PL-*?

Robust aluminum drum housing

Drum travel when cable retracted using threaded spindle

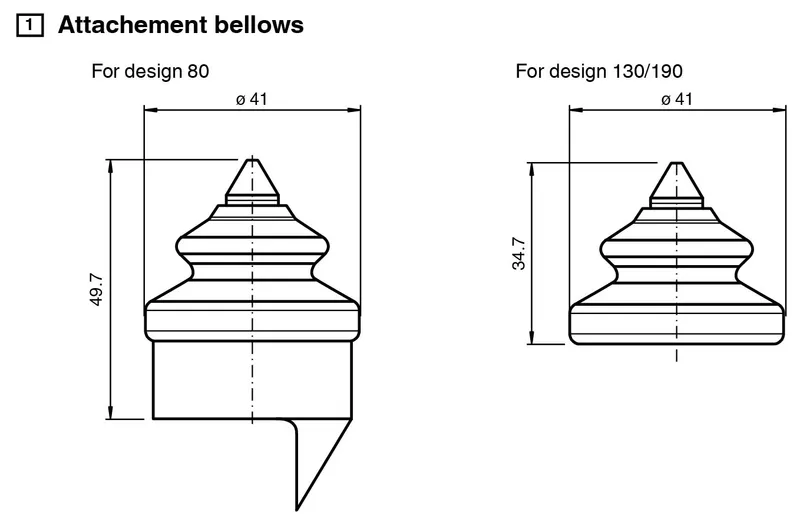

Bellows with steel tip

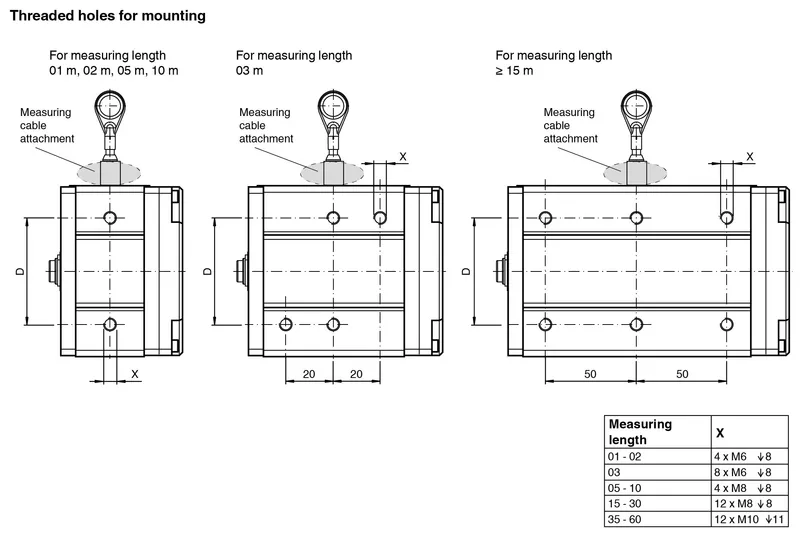

Wide range of mounting options

Comprehensive accessories

Up to 60 m of measuring cable

Housing can be coated as an option (Hart Coat)

Rust and acid-resistant measuring cable

Very low hysteresis

Cable pull, Robust aluminum drum housing, Drum travel when cable retracted using threaded spindle, Bellows with steel tip, Wide range of mounting options, Comprehensive accessories, Construction type: 80 mm, 130 mm, 190 mm

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T172461
Device type	Premium Line
Measuring length	1000 ... 60000 mm

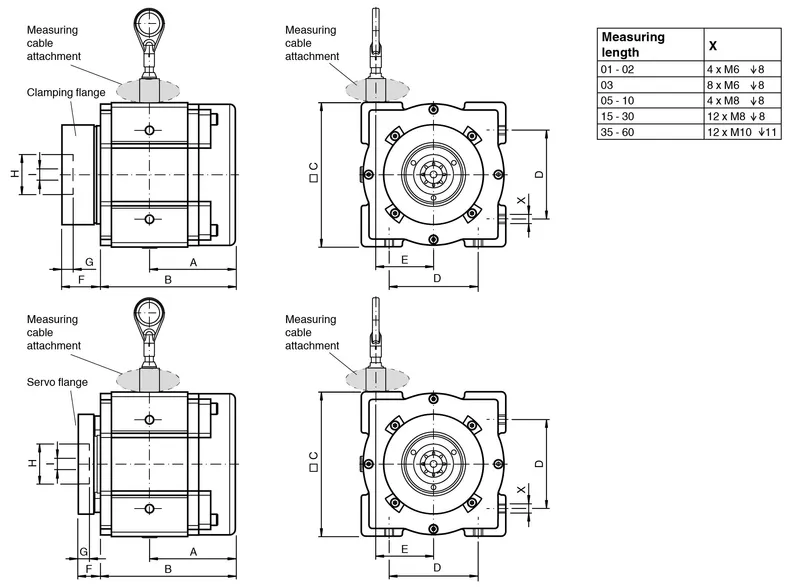

Construction type	80 mm, 130 mm, 190 mm
Lifecycle	Active (current Pepperl+Fuchs product)

Ambient conditions

Ambient temperature

-30 ... 70 °C (-22 ... 158 °F)

Mechanical specifications

Rope diameter	1.35 mm 0.81 mm ( at measuring length 50000 mm )
Degree of protection	IP64
Material: Housing	anodized aluminum or Aluminum with Hart Coat coating
Material: Rope	Stainless steel 1.4401/316
Life span	up to 106 Cycles

General information

Scope of delivery

Shaft coupling for mounting a rotary encoder depending on the flange type , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF

Accessories

Optional accessories

#203843SL-RP/GS80Guide pulley, design 80#203844SL-RP/GS130/GS190Guide pulley, design 130/190#251600SL-TRP/GS80Double guide pulley, design 80#251602SL-TRP/GS130Double guide pulley, design 130/190#271371SL-BA/GS80Brush attachment, design 80#271373SL-BA/GS130/GS190Brush attachment, design 130/190#272502SL-BCABall for ball joint

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (1)

Declaration of incorporationPDF · 82 kB
