Pepperl Fuchs ECN10TL-*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable-Pull Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECN10TL-* be shipped?
ECN10TL-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECN10TL-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECN10TL-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECN10TL-*, subject to availability and destination.

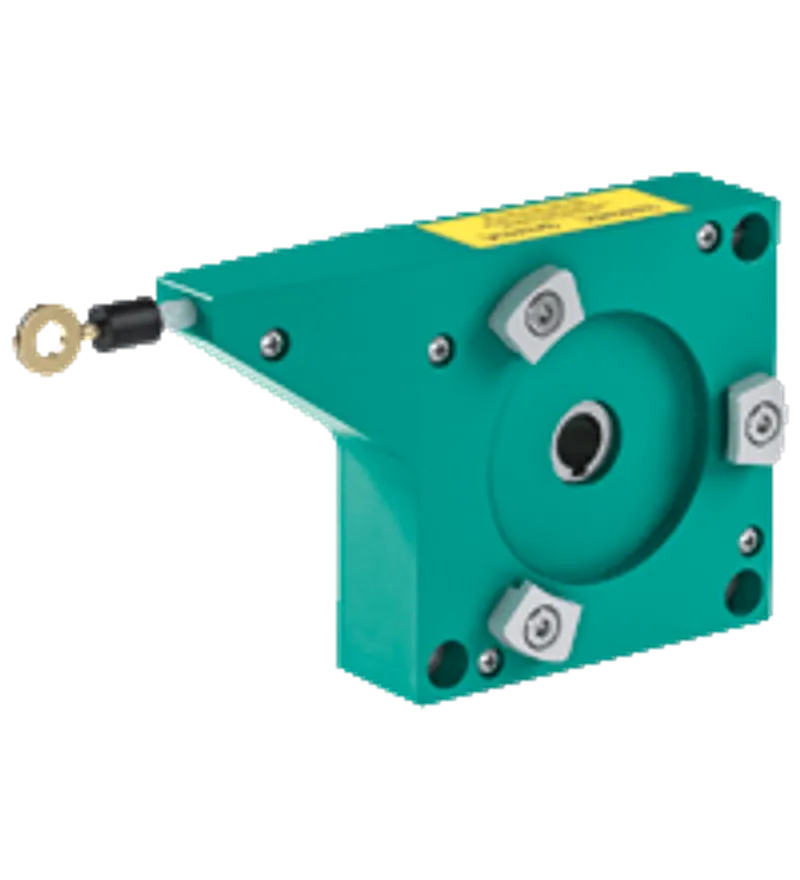

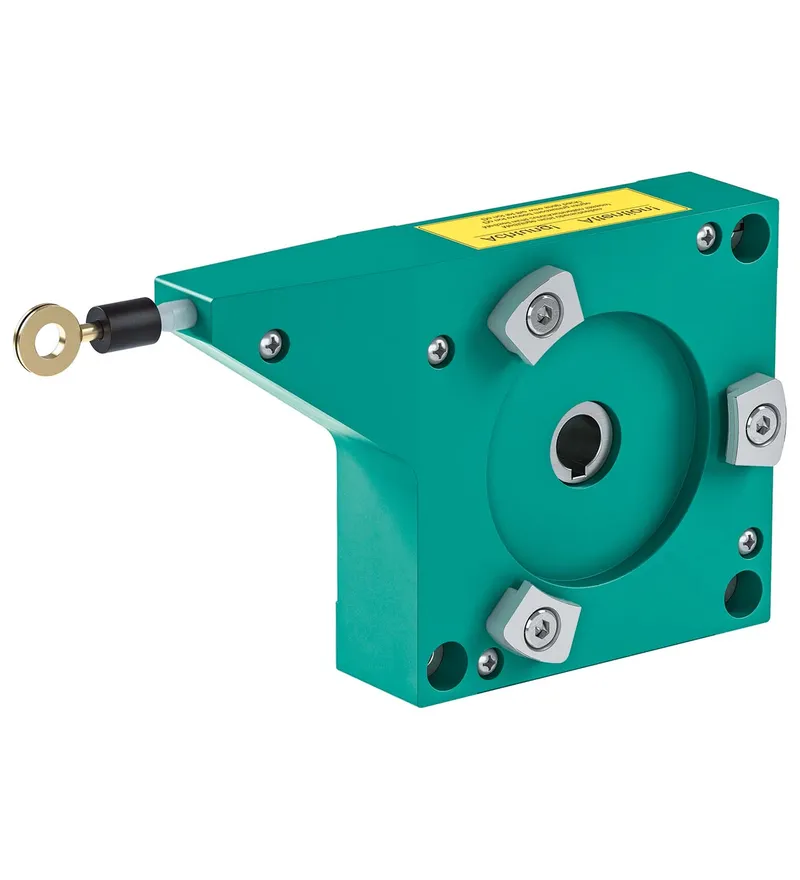

Cable pull. Cable pull, Solid yet lightweight plastic construction, Compact, slim design (the shaft of the flange-mounted rotary encoder is used to provide the function of the drum bearing), Coupling-free adaptation, Multitude of mounting possibilities, Rust and acid-resistant measuring cable, Construction type: 80 mm, 130 mm, 190 mm. Device type: Target Line. Measuring length: 3000 ... 10000 mm. Construction type: 80 mm, 130 mm, 190 mm. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Rope diameter: 0.55 mm. Degree of protection: IP50. Material: . Housingdesign 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17RopeStainless steel 1.4401/316: . Housing: design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles. Scope of delivery: Shaft adapter for rotary encoder with shaft dimension ∅ 6 mm x 10 mm up to 20 mm , adapter flange , Mounting clips , 3 x M4 x 8 bolts for mounting the adapter , Cover disk , Hexagon socket wrench, 1.3 AF
Specifications
General specifications
| Device type | Target Line |
| Measuring length | 3000 ... 10000 mm |

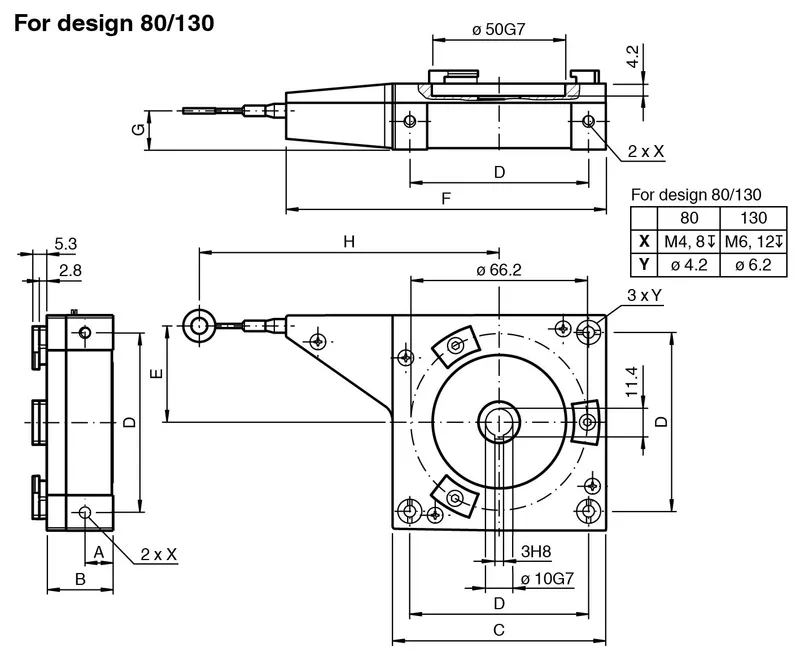

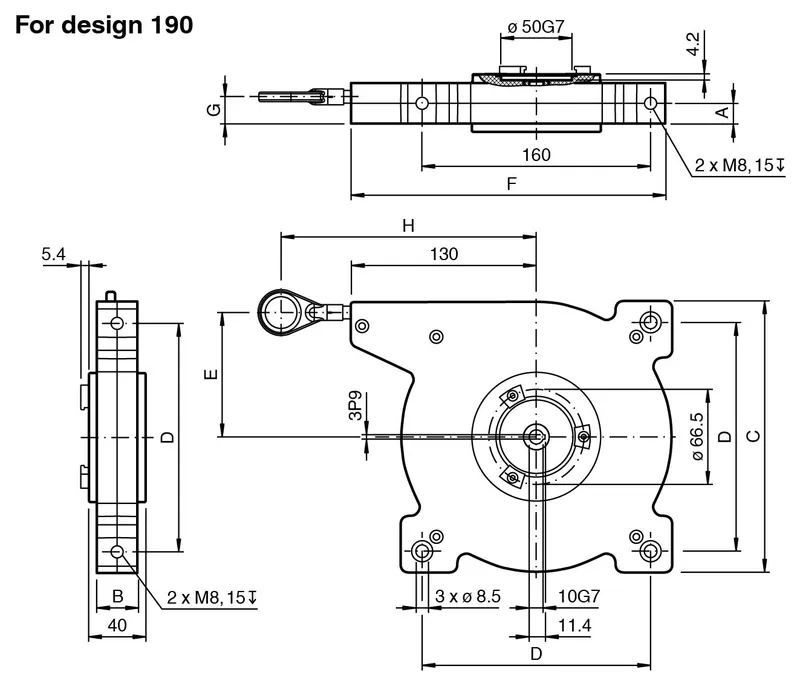

| Construction type | 80 mm, 130 mm, 190 mm |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
Mechanical specifications
| Rope diameter | 0.55 mm |
| Degree of protection | IP50 |
| Material | |
| Housingdesign 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17RopeStainless steel 1.4401/316 | Housing |
| Housing | design 80/130 : Luranyl® or Lexan 920 design 190 : ABS-GF17 |
| Rope | Stainless steel 1.4401/316 |
| Life span | up to 106 Cycles |
General information

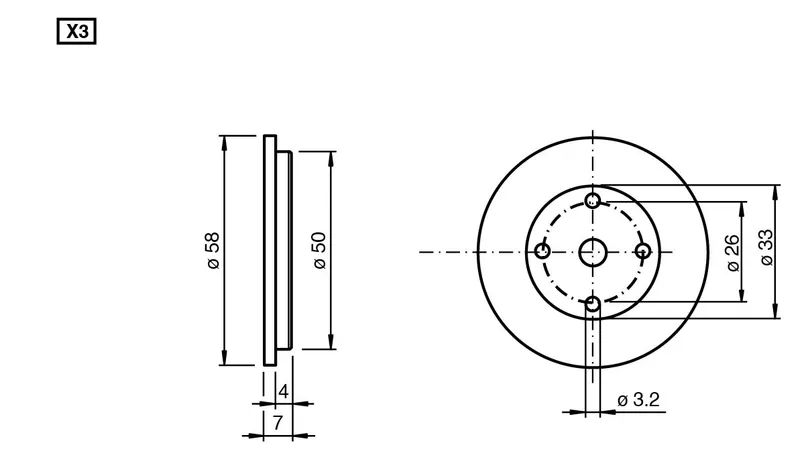

| Scope of delivery | Shaft adapter for rotary encoder with shaft dimension ∅ 6 mm x 10 mm up to 20 mm , adapter flange , Mounting clips , 3 x M4 x 8 bolts for mounting the adapter , Cover disk , Hexagon socket wrench, 1.3 AF |
