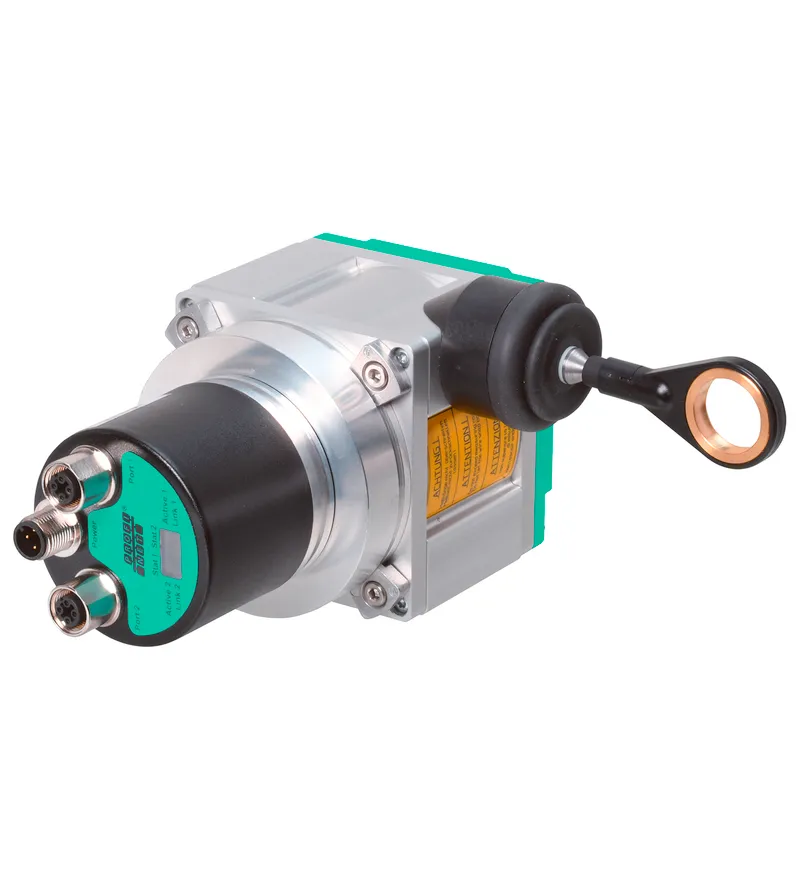

Pepperl Fuchs ECA30PL - PROFINET
Cable pull rotary encoder
- MPN
- ECA30PL - PROFINET
- Category
- Cable-Pull Rotary Encoders
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs ECA30PL - PROFINET?
Robust aluminum drum housing
Drum travel when cable retracted using threaded spindle

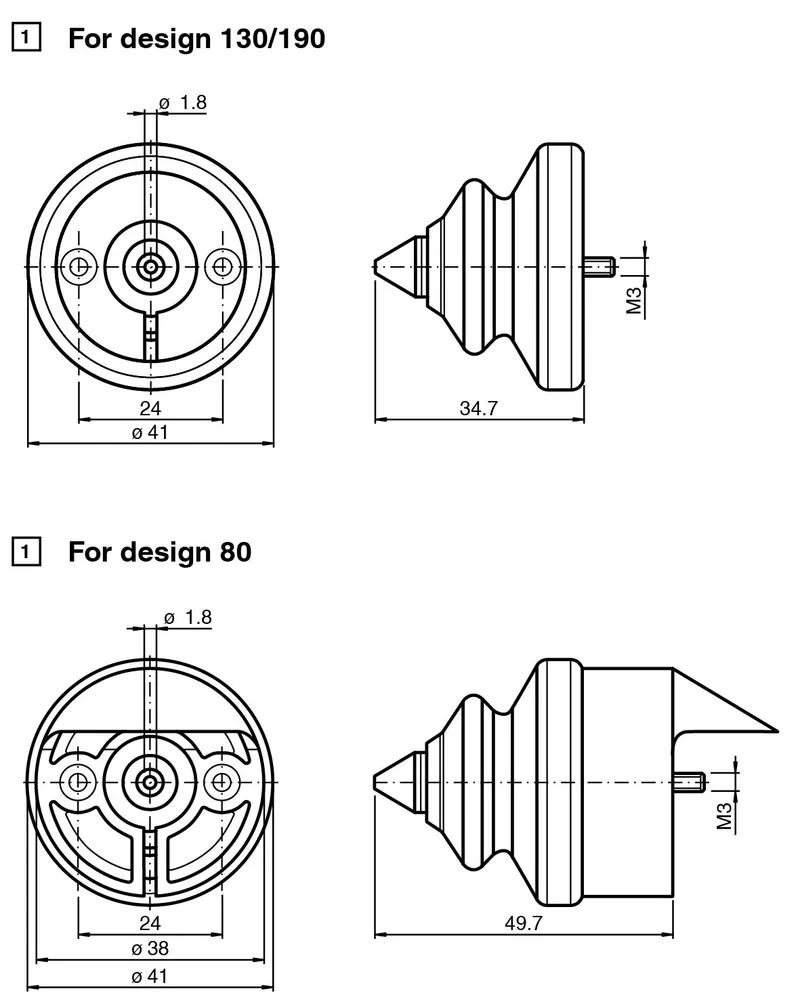

Bellows with steel tip
Comprehensive accessories
Housing can be coated as an option (Hart Coat)

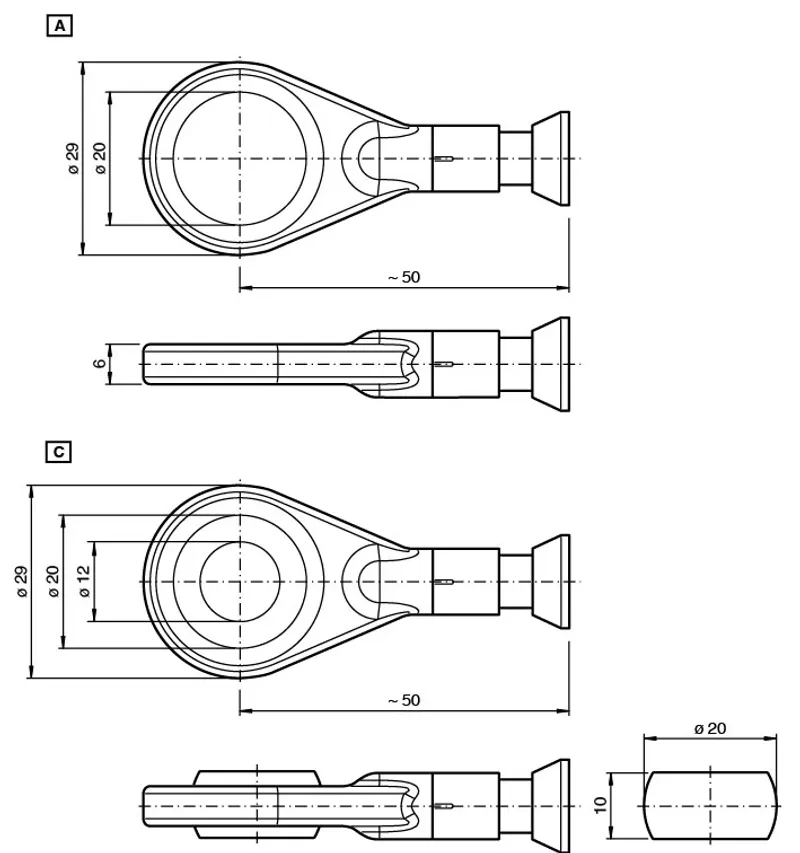

Rust and acid-resistant measuring cable
PROFINET interface
Free of wear magnetic sampling
Cable pull rotary encoder with PROFINET interface, Robust aluminum drum housing, Drum travel when cable retracted using threaded spindle, Bellows with steel tip, Comprehensive accessories, Housing can be coated as an option (Hart Coat), Interface: PROFINET, Detection type: magnetic sampling, Construction type: 80 mm, 130 mm, 190 mm, Interface type: PROFINET IO
Specifications
General specifications

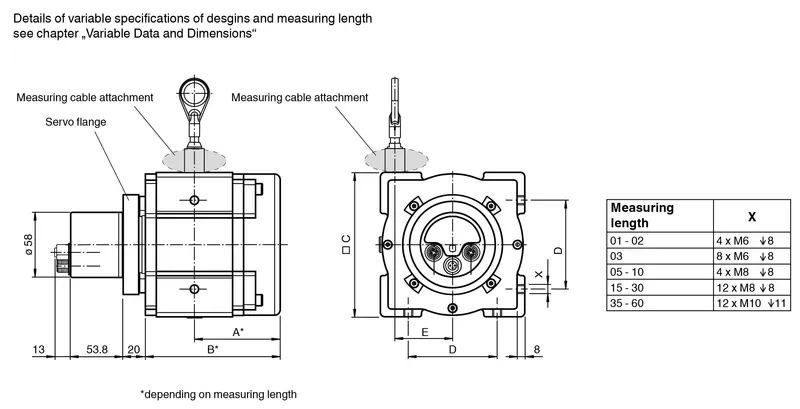

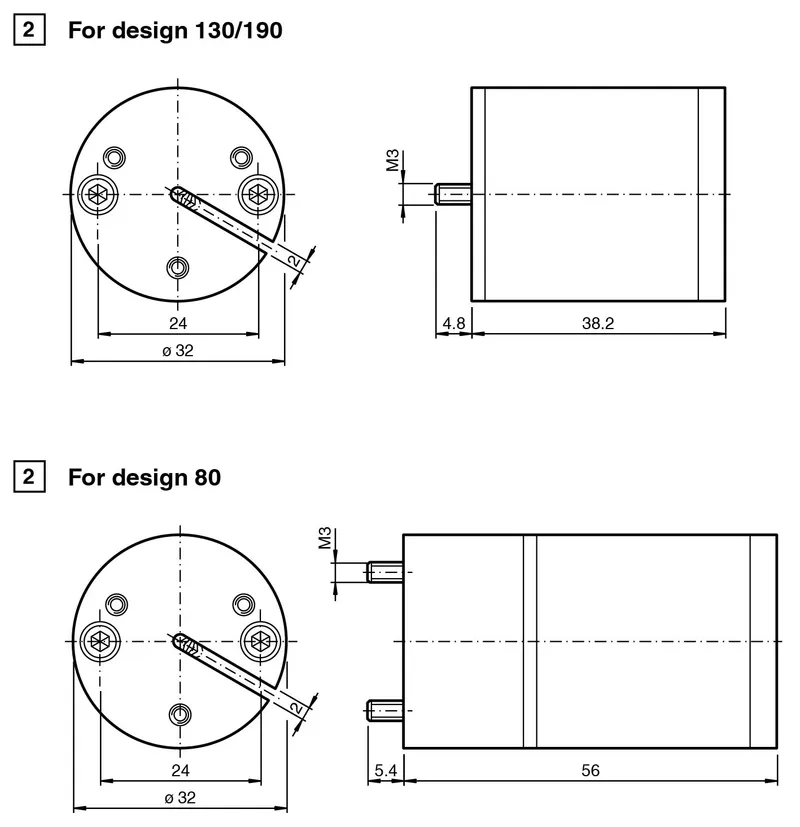

| Order code (Pepperl+Fuchs part number) | T183461 |
| Detection type | magnetic sampling |
| Device type | Premium Line with PROFINET interface |
| Measuring length | 1000 ... 60000 mm |
| Construction type | 80 mm, 130 mm, 190 mm |
| Resolution | Cable pull:Design 80 mm: 0,024 mm Design 130 mm: 0,041 mm Design 190 mm: 0,059 mm Encoder: 25 Bit (13 Bit/revolution) |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| B10d | 300000 |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | typ. 134 mA I0 |
| Power consumption | approx. 4 W P0 |
| Time delay before availability | < 250 ms tv |
| Output code | binary code |
| Code course (counting direction) | adjustable |
Interface
| Interface type | PROFINET IO |
| Transfer rate | 100 MBit/s |
Connection
| Connector | Ethernet : 2 x M12 x 1 socket, 4-pin, D-coded ; supply : M12 x 1 connector, 4-pin, A-coded |
Standard conformity
| Degree of protection | DIN EN 60529, IP65 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Operating temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | 98 % , no moisture condensation |
Mechanical specifications
| Rope diameter | 1.35 mm |
| Bending radius | min. 17 mm |
| Breaking force | min. 1227 N |
| Material: Cable pull | anodized aluminum or Aluminum with Hart Coat coating |
| Material: Rotary encoder | housing: nickel-plated steel Flange: aluminum |
| Material: Flange | Aluminum |
| Material: Rope | Stainless steel 1.4401/316 |
| Life span | up to 106 Cycles |
