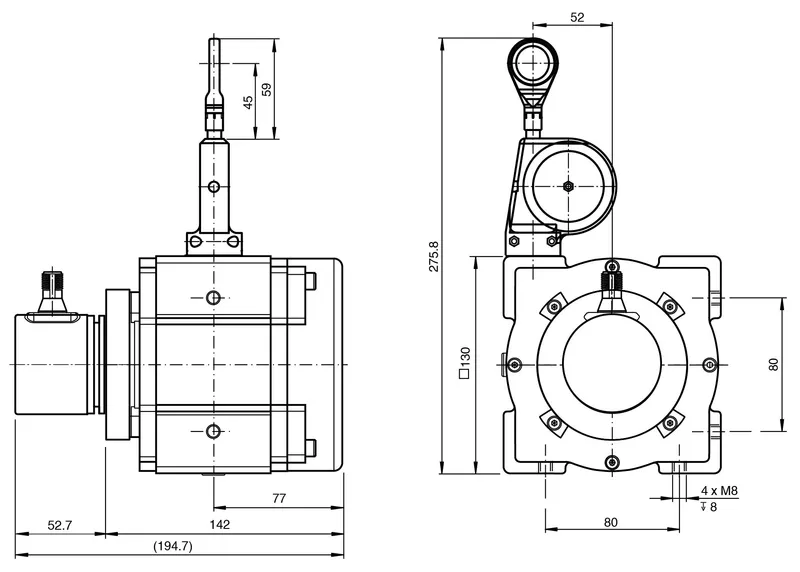

Pepperl Fuchs ECA30PL-05A4A-B16BD:NN
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable-Pull Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECA30PL-05A4A-B16BD:NN be shipped?
ECA30PL-05A4A-B16BD:NN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECA30PL-05A4A-B16BD:NN in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECA30PL-05A4A-B16BD:NN and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECA30PL-05A4A-B16BD:NN, subject to availability and destination.
Cable pull rotary encoder. Cable pull rotary encoder with CANopen interface, Rust and acid-resistant measuring cable, Robust aluminum drum housing, Resolution: 13 singleturn, 12 bit multiturn, Interface: CANopen, Detection type: magnetic sampling, Construction type: 130 mm, Interface type: CANopen. Detection type: magnetic sampling. Device type: Performance Line. Measuring length: 5000 mm. Construction type: 130 mm. Resolution: Cable pull:Design 130 mm: 0.04 mm Encoder: 25 Bit (13 Bit/revolution). Operating voltage: 9 ... 30 V DC. No-load supply current: ≥ 350 mA. Interface type: CANopen. Resolution: . Single turn13 BitMultiturn12 BitOverall resolution25 Bit: . Single turn: 13 Bit. Multiturn: 12 Bit. Overall resolution: 25 Bit. Transfer rate: max. 1 MBit/s. Standard conformity: communication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2. Connector: M12 connector, 5 pin , A-coded. Degree of protection: acc. DIN EN 60529. Connection sideEncoder: IP65 Cable pull: IP64: . Connection side: Encoder: IP65 Cable pull: IP64. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: 98 % , no moisture condensation. Rope diameter: 1.35 mm. Drum perimeter: 334.1 mm. Retraction speed: 4 m/s. Spring retraction force: 15 ... 21 N. Material: . Housingaluminum, coatedCable pullanodized aluminumFlangeanodized aluminumRopeStainless steel 1.4401/316: . Housing: aluminum, coated. Cable pull: anodized aluminum. Flange: anodized aluminum. Rope: Stainless steel 1.4401/316. Mass: 2888 g. Life span: up to 106 Cycles
Specifications
General specifications
| Detection type | magnetic sampling |
| Device type | Performance Line |
| Measuring length | 5000 mm |
| Construction type | 130 mm |
| Resolution | Cable pull:Design 130 mm: 0.04 mm Encoder: 25 Bit (13 Bit/revolution) |
Electrical specifications
| Operating voltage | 9 ... 30 V DC UB |
| No-load supply current | ≥ 350 mA I0 |
Interface
| Interface type | CANopen |
| Resolution | |
| Single turn13 BitMultiturn12 BitOverall resolution25 Bit | Single turn |
| Single turn | 13 Bit |
| Multiturn | 12 Bit |
| Overall resolution | 25 Bit |
| Transfer rate | max. 1 MBit/s |
| Standard conformity | communication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2 |
Connection
| Connector | M12 connector, 5 pin , A-coded |
Standard conformity
| Degree of protection | acc. DIN EN 60529 |
| Connection sideEncoder: IP65 Cable pull: IP64 | Connection side |
| Connection side | Encoder: IP65 Cable pull: IP64 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Storage temperature | -30 ... 70 °C (-22 ... 158 °F) |
| Relative humidity | 98 % , no moisture condensation |
Mechanical specifications
| Rope diameter | 1.35 mm |
| Drum perimeter | 334.1 mm |
| Retraction speed | 4 m/s |
| Spring retraction force | 15 ... 21 N |
| Material | |
| Housingaluminum, coatedCable pullanodized aluminumFlangeanodized aluminumRopeStainless steel 1.4401/316 | Housing |
| Housing | aluminum, coated |
| Cable pull | anodized aluminum |
| Flange | anodized aluminum |
| Rope | Stainless steel 1.4401/316 |
| Mass | 2888 g |
| Life span | up to 106 Cycles |
