Pepperl Fuchs ECN21IL-*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Cable-Pull Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ECN21IL-* be shipped?
ECN21IL-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ECN21IL-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ECN21IL-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ECN21IL-*, subject to availability and destination.

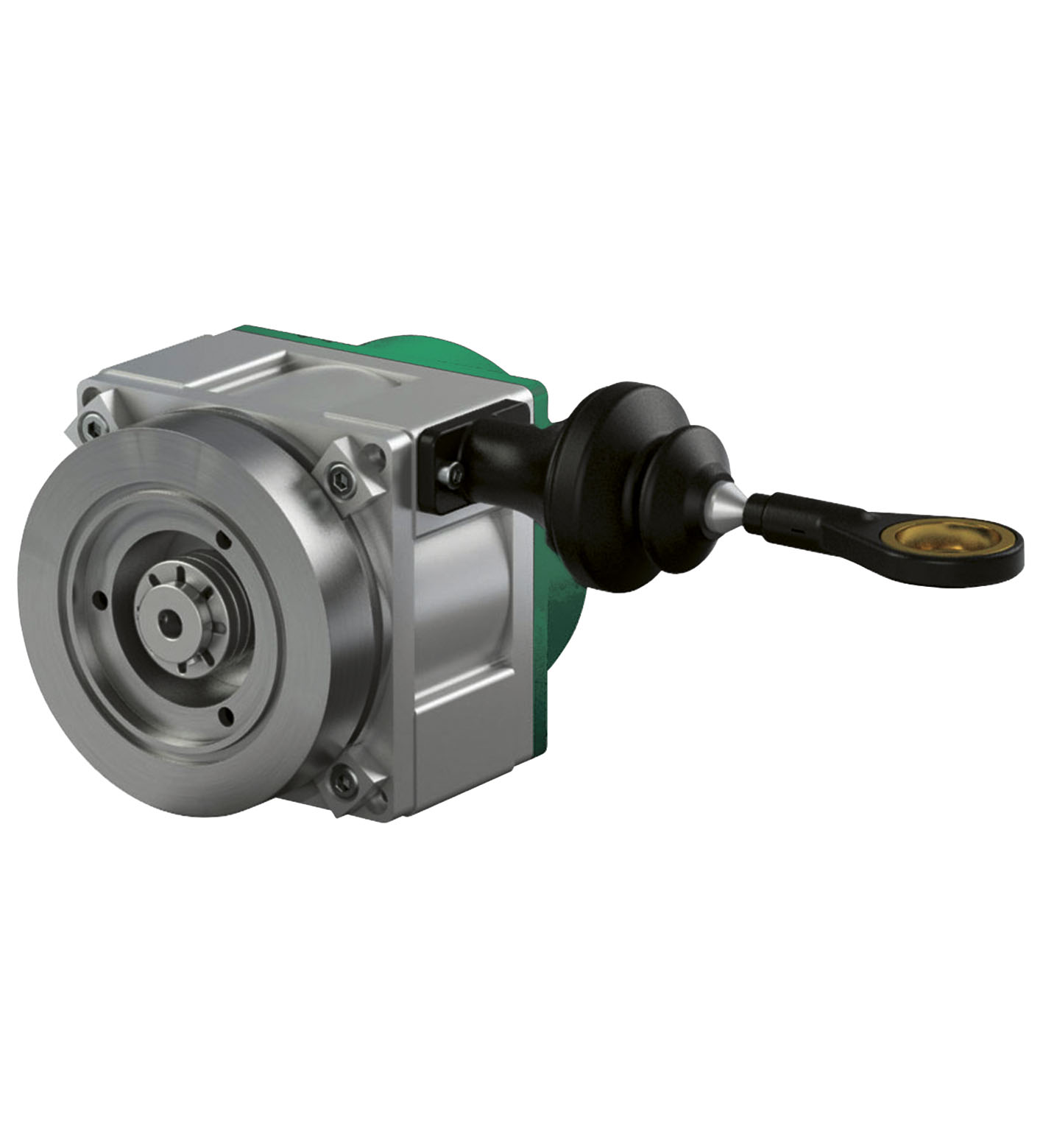

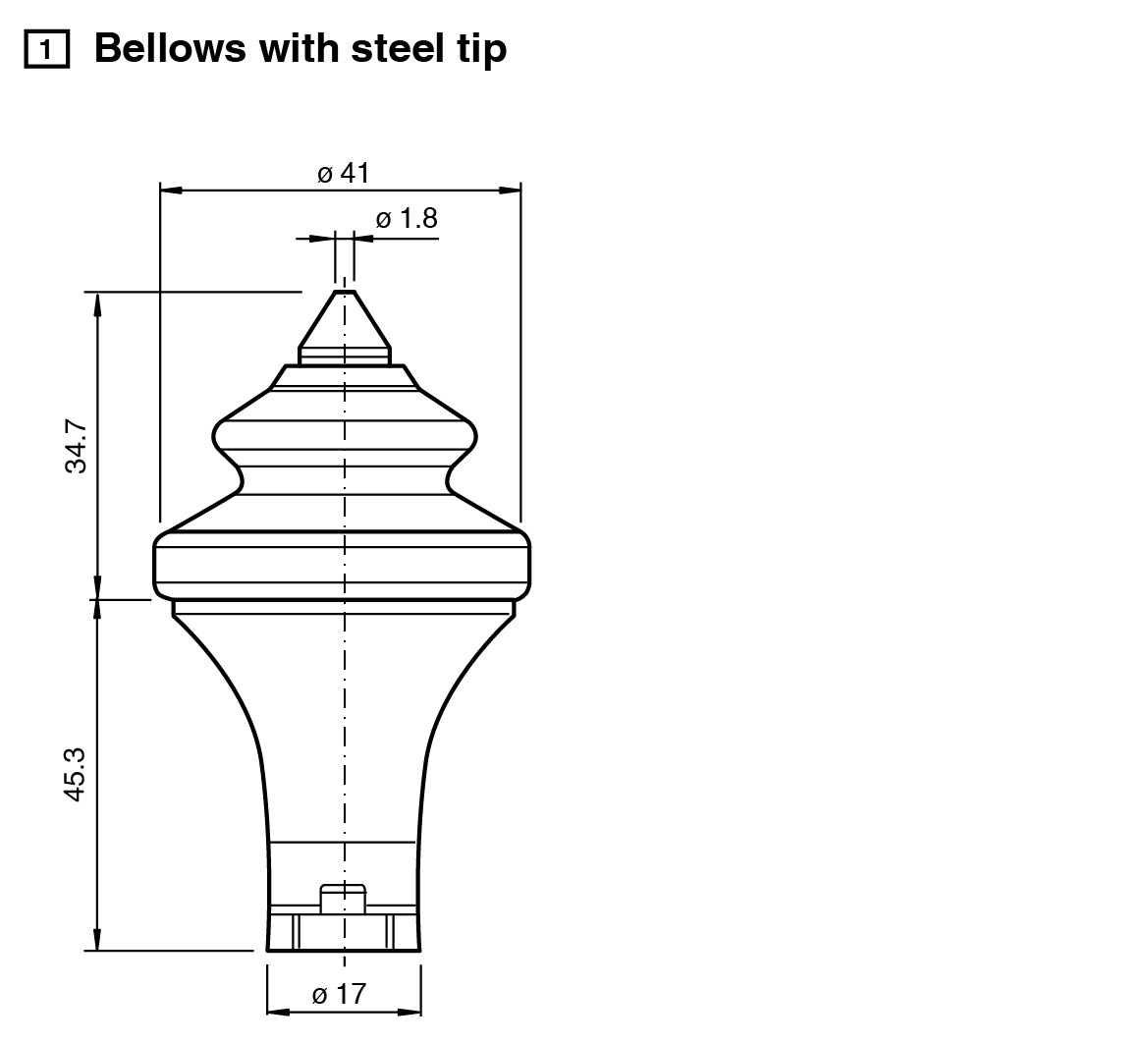

Cable pull. Cable pull, Robust aluminum drum housing, Compact design, Bellows with steel tip, Wide range of mounting options, Up to 5 m of measuring cable, Construction type: 80 mm, 130 mm. Device type: Industrial Line. Measuring length: 2000 ... 5000 mm. Construction type: 80 mm, 130 mm. B10d: 300000. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Rope diameter: 0.55 mm. Retraction speed: 4 m/s. Degree of protection: IP64. Material: . Housinganodized aluminumRopeStainless steel 1.4401/316: . Housing: anodized aluminum. Rope: Stainless steel 1.4401/316. Life span: up to 106 Cycles. Scope of delivery: Shaft coupling for mounting a rotary encoder depending on the flange type , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF
Specifications
General specifications
| Device type | Industrial Line |
| Measuring length | 2000 ... 5000 mm |

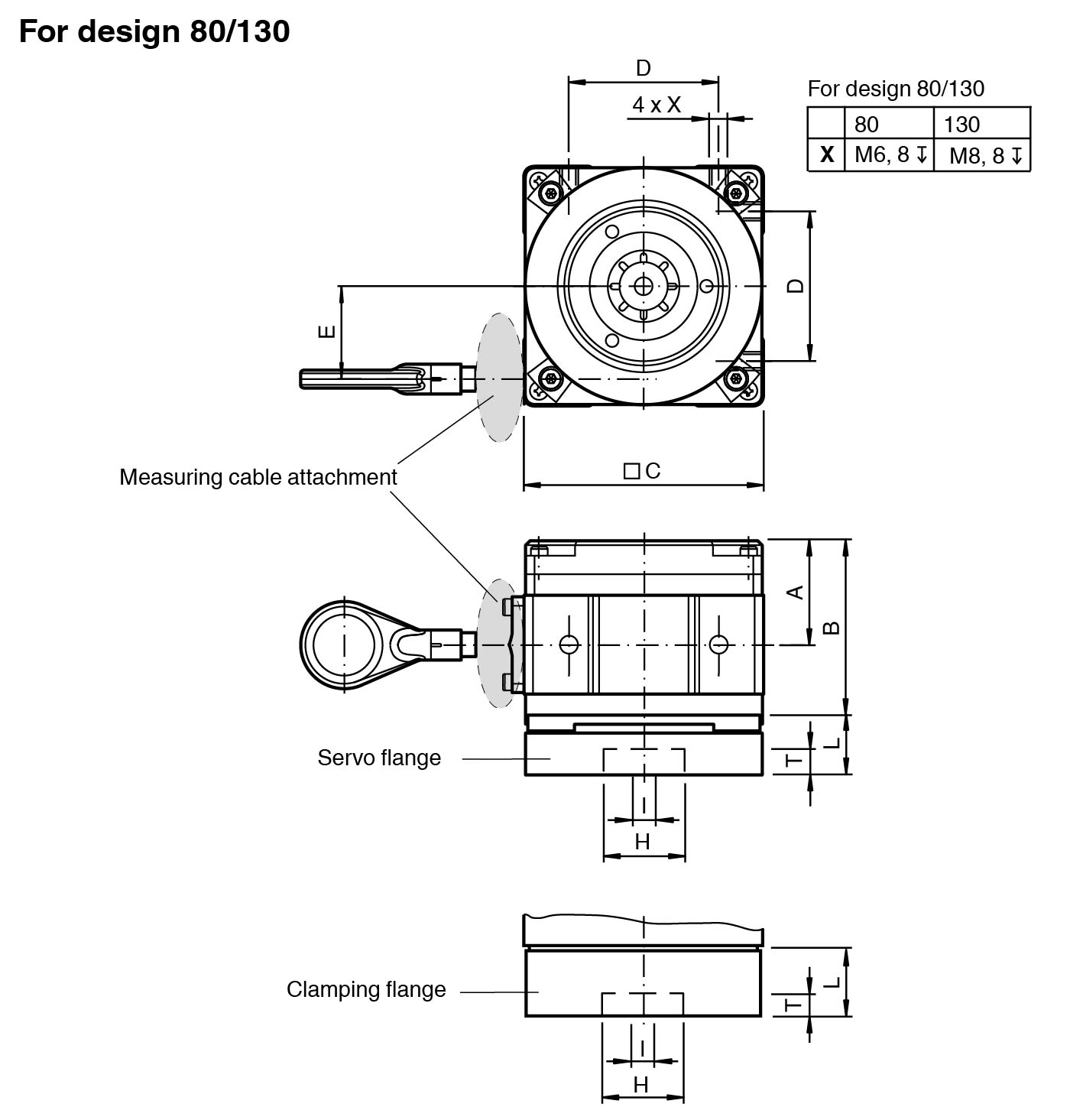

| Construction type | 80 mm, 130 mm |
Functional safety related parameters
| B10d | 300000 |
Ambient conditions
| Ambient temperature | -30 ... 70 °C (-22 ... 158 °F) |
Mechanical specifications
| Rope diameter | 0.55 mm |
| Retraction speed | 4 m/s |
| Degree of protection | IP64 |
| Material | |
| Housinganodized aluminumRopeStainless steel 1.4401/316 | Housing |
| Housing | anodized aluminum |
| Rope | Stainless steel 1.4401/316 |
| Life span | up to 106 Cycles |
General information
| Scope of delivery | Shaft coupling for mounting a rotary encoder depending on the flange type , Mounting clips , bolts for mounting the adapter and a rotary encoder , Sealing elements (various seals for mounting a rotary encoder) , Hexagon socket wrench, 1.3 AF |
