Pepperl Fuchs EPV-6100-MP-*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Purge and Pressurization System (Ex pxb) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EPV-6100-MP-* be shipped?
EPV-6100-MP-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EPV-6100-MP-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EPV-6100-MP-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EPV-6100-MP-*, subject to availability and destination.

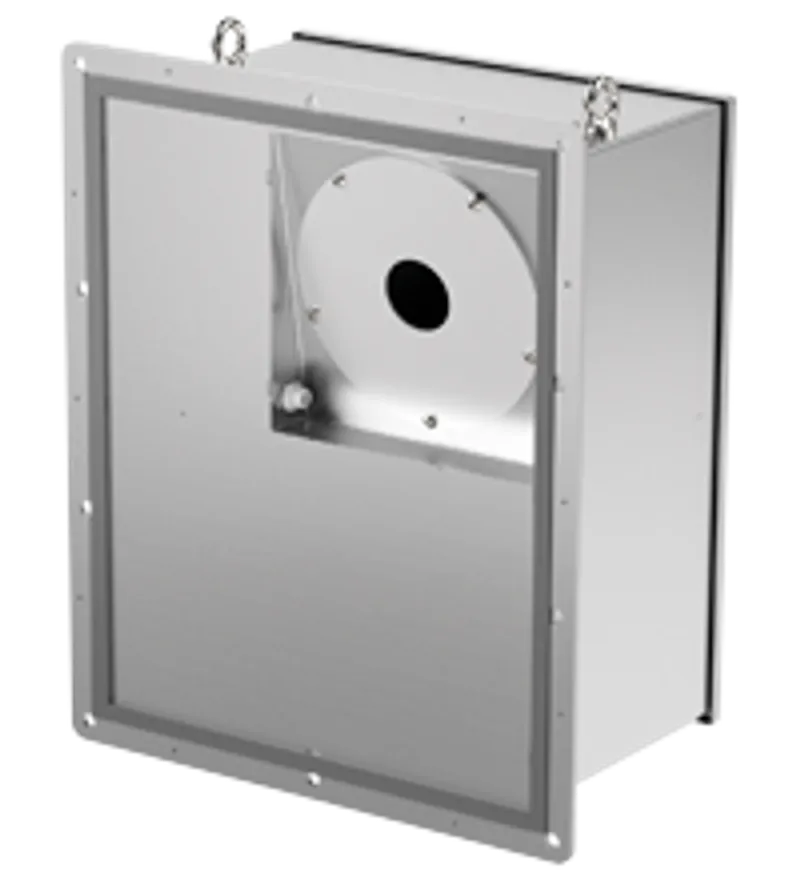

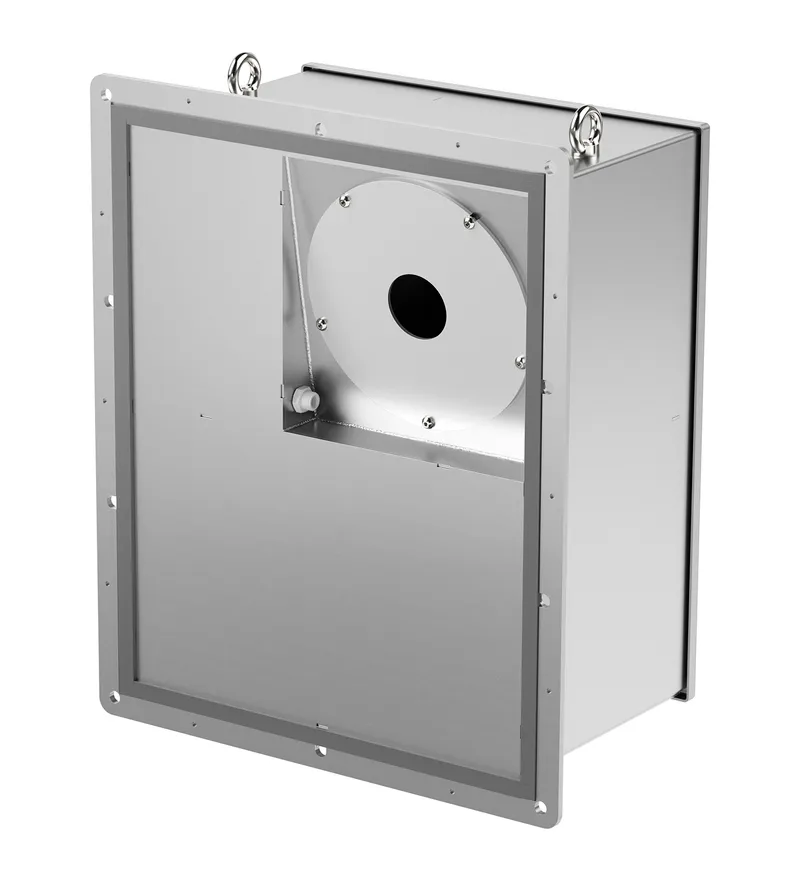

6100 series vent. 6100 series purge and pressurization enclosure protection vent. Series: 6100 Series. System: Ex pxb Purge. Hazardous environment: gas. Connection: . PowerIntrinsically safe connection to the 6100 control unitSignal2-wire intrinsically safe pressure switchConnection2-wire: . Power: Intrinsically safe connection to the 6100 control unit. Signal: 2-wire intrinsically safe pressure switch. Connection: 2-wire. Protective gas supply: Clean air or inert gas. Safe pressure: 0.625 mbar [0.25 in wc / 6.4 mm wc). Enclosure pressure: 0 ... 50 mbar (0 ... 20.1 in wc / 0 ... 510.5 mm wc). Flow rate for leakage compensation: depends on enclosure seal based on completely sealed enclosure. Breaking pressure: Approx. 10 mbar (4.0 in wc)Approx. 25 mbar (10.0 in wc)Approx. 30 mbar (12.1 in wc)Approx. 40 mbar (16.1 in wc)Approx. 50 mbar (20.1 in wc). Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012: . Directive 2011/65/EU (RoHS): EN 50581:2012. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 80 °C (-4 ... 176 °F). Relative humidity: 5 ... 95 %, noncondensing. Vibration resistance: 1 g , 3 ... 150 Hz , all axes. Impact resistance: 30g, 11 ms, all axes. Material: 316L stainless steel (housing). Installation: -gravity dependent -air outlet, screen side must be facing down. Mass: 17 kg (37 lb). Certificate: CML 19 ATEX 1425X. Marking II2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb: . Marking: II2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012. IECEx approval: IECEx CML 19.0156X Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010
Specifications
General specifications
| Series | 6100 Series |
| System | Ex pxb Purge |
| Hazardous environment | gas |
Electrical specifications
| Connection | |
| PowerIntrinsically safe connection to the 6100 control unitSignal2-wire intrinsically safe pressure switchConnection2-wire | Power |
| Power | Intrinsically safe connection to the 6100 control unit |
| Signal | 2-wire intrinsically safe pressure switch |
| Connection | 2-wire |
Pneumatic parameters
| Protective gas supply | Clean air or inert gas |
| Safe pressure | 0.625 mbar [0.25 in wc / 6.4 mm wc) |
| Enclosure pressure | 0 ... 50 mbar (0 ... 20.1 in wc / 0 ... 510.5 mm wc) |
| Flow rate for leakage compensation | depends on enclosure seal based on completely sealed enclosure |
| Breaking pressure | Approx. 10 mbar (4.0 in wc)Approx. 25 mbar (10.0 in wc)Approx. 30 mbar (12.1 in wc)Approx. 40 mbar (16.1 in wc)Approx. 50 mbar (20.1 in wc) |
Directive conformity
| Electromagnetic compatibility | |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EU |
| Directive 2014/30/EU | EN 61326-1:2013 |
| RoHS | |
| Directive 2011/65/EU (RoHS)EN 50581:2012 | Directive 2011/65/EU (RoHS) |
| Directive 2011/65/EU (RoHS) | EN 50581:2012 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -20 ... 80 °C (-4 ... 176 °F) |
| Relative humidity | 5 ... 95 %, noncondensing |
| Vibration resistance | 1 g , 3 ... 150 Hz , all axes |
| Impact resistance | 30g, 11 ms, all axes |

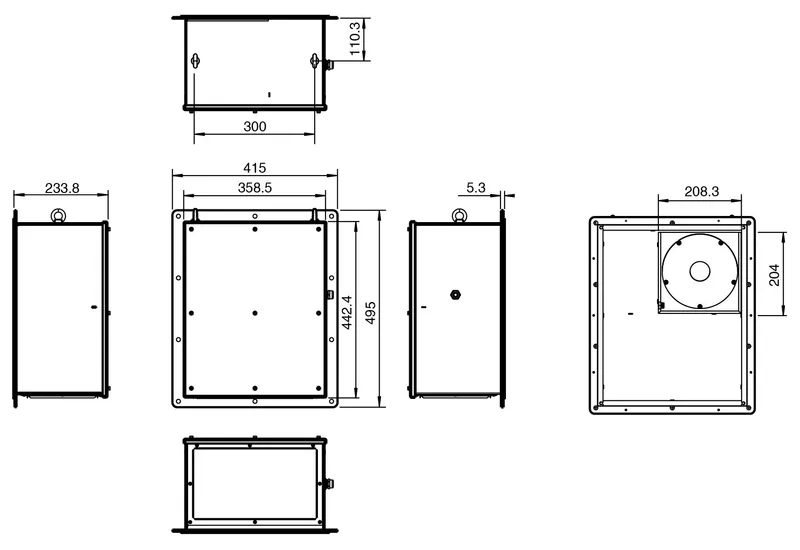

Mechanical specifications
| Material | 316L stainless steel (housing) |
| Installation | -gravity dependent -air outlet, screen side must be facing down |
| Mass | 17 kg (37 lb) |
Data for application in connection with hazardous areas
| Certificate | CML 19 ATEX 1425X |
| Marking II2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb | Marking |
| Marking | II2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb |
| Directive conformity | |
| Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012 | Directive 2014/34/EU |
| Directive 2014/34/EU | EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012 |
International approvals
| IECEx approval | IECEx CML 19.0156X Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010 |
