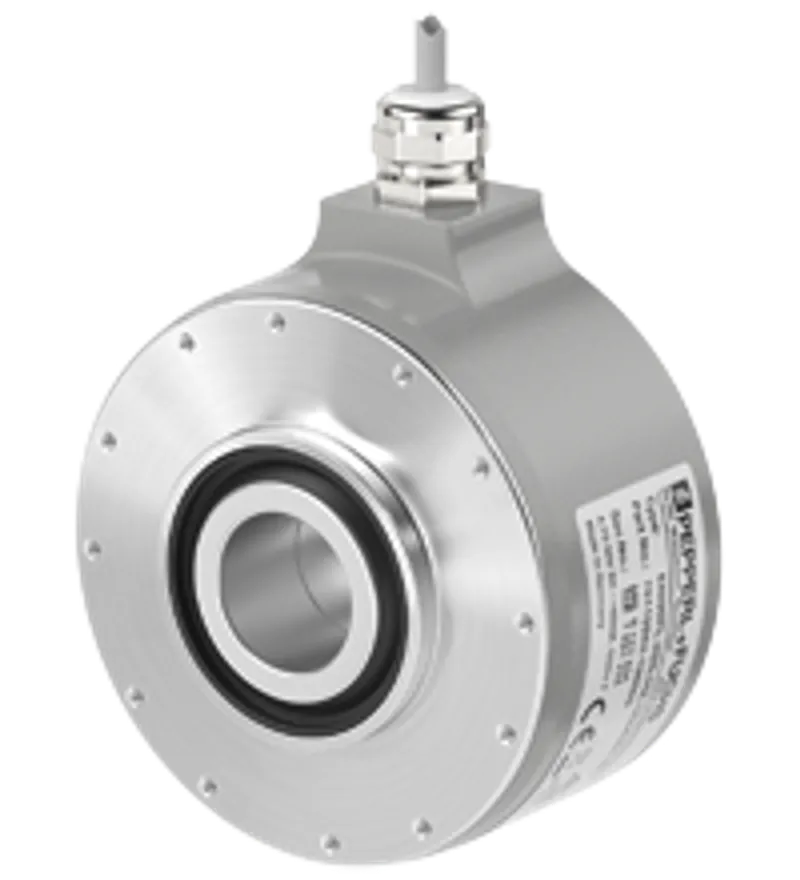

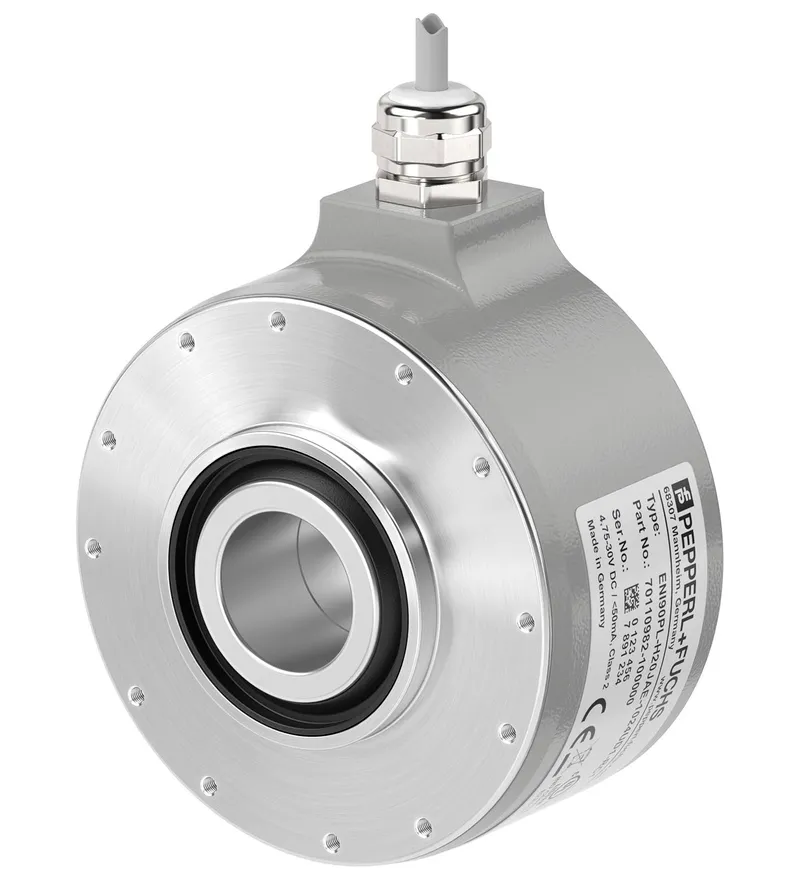

Pepperl Fuchs ENI90PL-H
Incremental rotary encoder
- MPN
- ENI90PL-H
- Category
- Incremental Rotary Encoders
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs ENI90PL-H?
Housing ∅ 93 mm
Hollow shaft
Up to 5000 pulses
Universal output driver
BlueBeam technology for ultimate precision
Housing ∅ 93 mm, Hollow shaft, Up to 5000 pulses, Universal output driver, BlueBeam technology for ultimate precision, Enclosure type: 93 mm, Type of shaft: Hollow shaft, Interface: push-pull, incremental or RS-422, incremental, Detection type: photoelectric sampling, Output type: push-pull or RS422 (universal output driver, output level depending on input voltage)
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T195387 |
| Detection type | photoelectric sampling |
| Linearity error | ± 0.025 ° |
| Pulse count | max. 5000 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Functional safety related parameters
| MTTFd | 435 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
Electrical specifications
| Operating voltage | 4.75 ... 30 V DC , Reverse polarity protection UB |
| No-load supply current | max. 50 mA I0 |
Output
| Output type | push-pull or RS422 (universal output driver, output level depending on input voltage) |
| Load current | max. per channel 40 mA , short-circuit protected |
| Output frequency | max. 400 kHz |
| Rise time | 300 ns |
| Phase position A to B: Pulse counts < 3600 | 90 ° ± 9 ° electrical |
| Phase position A to B: Pulse counts ≥ 3600 | 90 ° ± 25 ° electrical |
| Duty cycle | 1/2 ± 10 % |

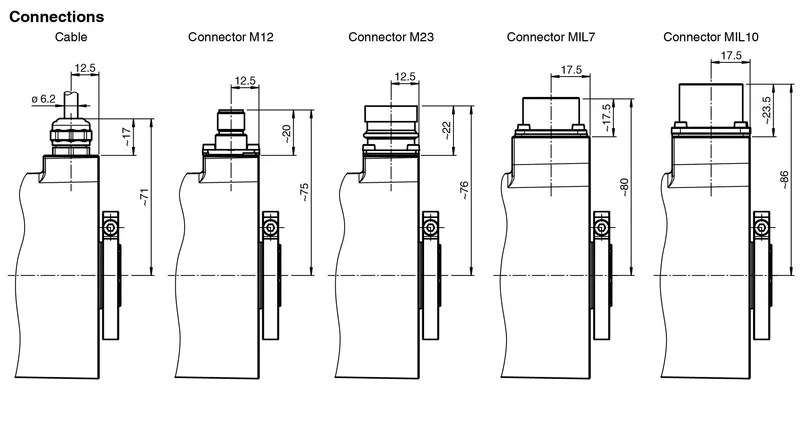

Connection
| Connector | M12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin , clockwise rotation M23 connector, 12-pin , counter clockwise rotation 10-pin MIL connector 7-pin MIL connector |
| Cable | ∅6 mm, 4 x 2 x 0.14 mm2 |
Standard conformity
| Degree of protection | DIN EN 60529, IP65, IP66, IP67 |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation |
| Emitted interference | EN IEC 61000-6-4:2019 |
| Noise immunity | EN IEC 61000-6-2:2019 |
| Shock resistance | DIN EN 60068-2-27, 300 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 30 g, 10 ... 2000 Hz |
Approvals and certificates
| UL approval | E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request |
| Maximum permissible ambient temperature | max. 80 °C (max. 176 °F) |
Ambient conditions
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) , cable, fixed installation -5 ... 85 °C (23 ... 185 °F) , movable cable |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |

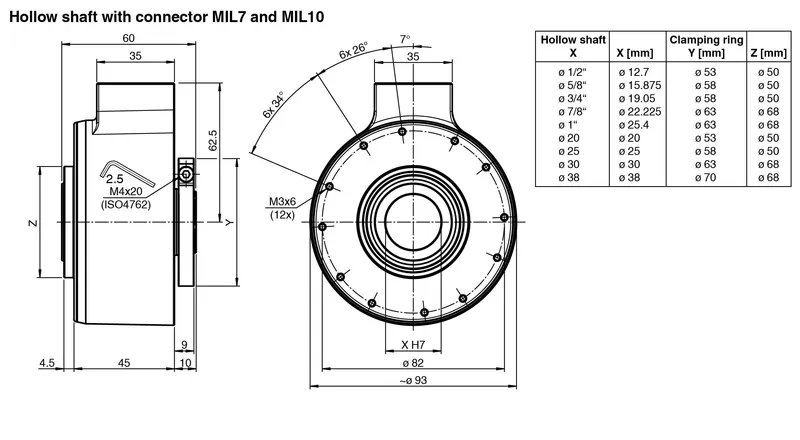

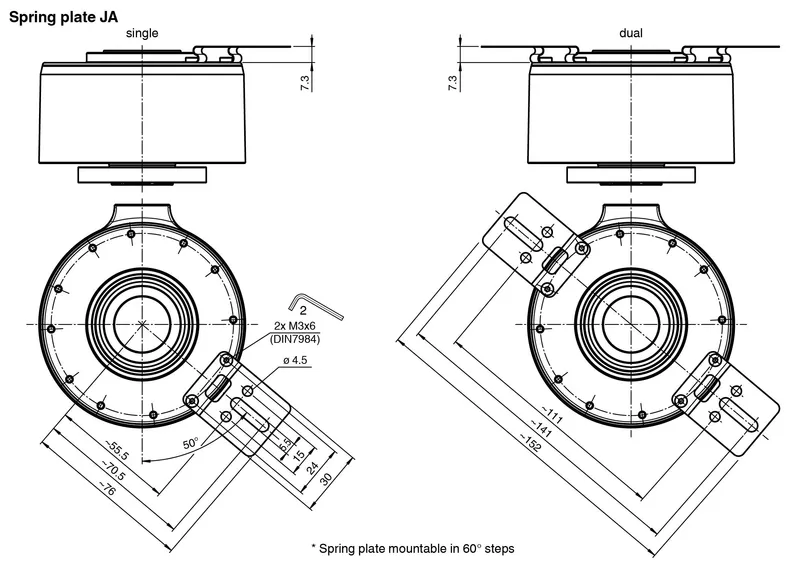

Mechanical specifications
| Material: Housing | powder coated aluminum |
| Material: Flange | aluminum, blank |
| Material: Shaft | anodized aluminum |
| Mass | < 700 g without cable |
| Rotational speed | max. 6000 min -1 for IP65 max. 3000 min -1 for IP66/IP67 |
| Starting torque | ≤ 0.1 Nm for IP65 ≤ 0.25 Nm for IP66/IP67 |
| Shaft insulation | max. 2 kV (for dielectric strength version) |
| Shaft load: Axial | ≤ 50 N |
| Shaft load: Radial | ≤ 100 N |
| Dimensions: Length | 55 mm |
| Dimensions: Diameter | 93 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
ENI90PL-H: frequently asked questions
When can ENI90PL-H be shipped?
ENI90PL-H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ENI90PL-H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ENI90PL-H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ENI90PL-H, subject to availability and destination.
