Pepperl Fuchs EPV-7500-AA-01

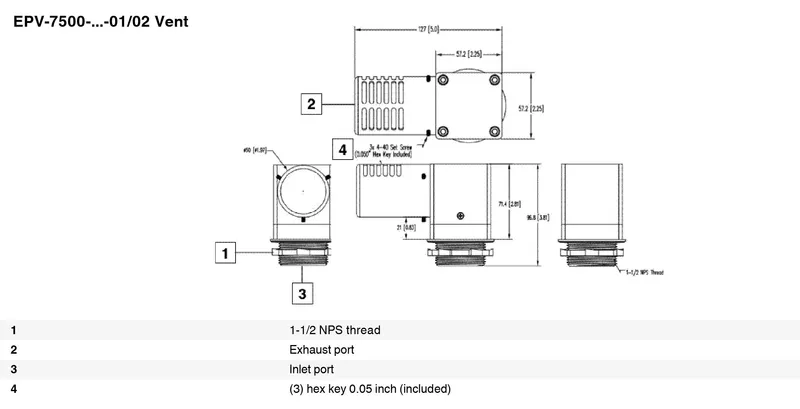

7500 series vent. 7500 series purge and pressurization system vent, aluminum body and cap. Equipment architecture: max. enclosure size 12.7 m3 (450 ft3). Series: 7500. System: Type Z Purge ; Ex pzc Purge. Hazardous environment: gas or dust. Protective gas supply: compressed air or inert gas, 40 µm filter, free from oil. Maximum pressure: See tables. Purge flow rate: See tables. Flow rate for leakage compensation: EPV-7500....-01: Less than 11.8 l/min (0.42 scfm) @ 0.63 mbar (0.25 in. w.c.) Less than 30.6 l/min (1.08 scfm) @ 1.9 mbar (0.75 in. w.c.) EPV-7500....-02: Less than 9.4 l/min (0.33 scfm) @ 0.63 mbar (0.25 in. w.c.) Less than 22.6 l/min (0.8 scfm) @ 1.9 mbar (0.75 in. w.c.) EPV-7500....-03 and EPV-7500-AA-04: Less than 1 l/min (0.035 scfm) @ 0.63 mbar (0.25 in w.c.)Less than 1 l/min (0.035 scfm) @ 1.9 mbar (0.75 in w.c.). Breaking pressure: EPV-7500....-01: 2.0 mbar (0.8 in. w.c.) EPV-7500-...-02: 3.5 mbar (1.4 in. w.c.) EPV-7500-...-03: 3.8 mbar (1.5 in. w.c.) EPV-7500-AA-04: 3.5 mbar (1.4 in. w.c.). Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 , FCC CFR 47, part 15, subpart B: 2017, Class A ICES-003, Issue 6:2016, Class A ITE: . Directive 2014/30/EU: EN 61326-1:2013 , FCC CFR 47, part 15, subpart B: 2017, Class A ICES-003, Issue 6:2016, Class A ITE. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012: . Directive 2011/65/EU (RoHS): EN 50581:2012. Degree of protection: Directive conformity: see Declaration of Conformity. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Relative humidity: 5 ... 90 %, non-condensing. Vibration resistance: 5 ... 100 Hz , 1 g, 12 m/s2, all axes. Impact resistance: 30 g, 11 ms, all axes. Degree of protection: EPV-7500....-01/02/04: mounting only Type 4X / IP66 EPV-7500....-03: Mounting and unit Type 4X / IP66. Material: . HousingEPV-7500-AA... body and cap: 6061-T6 aluminum EPV-7500-SS... body: 6061-T6 aluminumcap: AISI 316L (1.4404) stainless steelSpark arrestor304 Stainless steel: . Housing: EPV-7500-AA... body and cap: 6061-T6 aluminum EPV-7500-SS... body: 6061-T6 aluminumcap: AISI 316L (1.4404) stainless steel. Spark arrestor: 304 Stainless steel. Installation: - any orientation to enclosure- not gravity dependent- internal and external mounting possible. Mass: approx. 1005 g (2.2 lb). Dimensions: See "Dimensions" section.. Mounting: EPV-7500-...-01/02/03: mounting hole 1.5 in NPT knockout (50.8 mm) hole sealing nut (provided) EPV-7500-AA-04: mounting hole 37 mm with sealing nut (provided). Certificate: . Marking II 3GD (part of DEMKO 18 ATEX 2025 X): . Marking: II 3GD (part of DEMKO 18 ATEX 2025 X). Directive conformity: . Directive 2014/34/EUIEC/EN 60079-0 , IEC/EN 60079-2 , IEC/EN 60079-7 , IEC/EN 60079-15 , IEC/EN 60079-31 Supplements: EN 61010-1:2010, EN 61326-3-2:2008, EN 61000-6-2:2005: . Directive 2014/34/EU: IEC/EN 60079-0 , IEC/EN 60079-2 , IEC/EN 60079-7 , IEC/EN 60079-15 , IEC/EN 60079-31 Supplements: EN 61010-1:2010, EN 61326-3-2:2008, EN 61000-6-2:2005. UL approval: . cULusClass I, Division 2, Groups A, B, C, D T4 (-40 °C ≤ Ta ≤ 70 °C)Class I, Division 2, Groups A, B, C, D, T6 (-40 °C ≤ Ta ≤ 50 °C)Class II, Division 2, Groups F, G T4 (-40 °C ≤ Ta ≤ 70 °C)Class II, Division 2, Groups F, G T6 (-40 °C ≤ Ta ≤ 50 °C): . cULus: Class I, Division 2, Groups A, B, C, D T4 (-40 °C ≤ Ta ≤ 70 °C)Class I, Division 2, Groups A, B, C, D, T6 (-40 °C ≤ Ta ≤ 50 °C)Class II, Division 2, Groups F, G T4 (-40 °C ≤ Ta ≤ 70 °C)Class II, Division 2, Groups F, G T6 (-40 °C ≤ Ta ≤ 50 °C). IECEx approval: part of IECEx UL 18.0022X

Specifications
