Purge and Pressurization System (Ex pxb) Parts
Compare Purge and Pressurization System (Ex pxb)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Hazardous environment | Vibration resistance | Impact resistance | Degree of protection |
|---|---|---|---|---|---|
| EPV-6100-MPM-* | T221366 | gas | EN 60068-2-6 | EN 60068-2-27 | — |

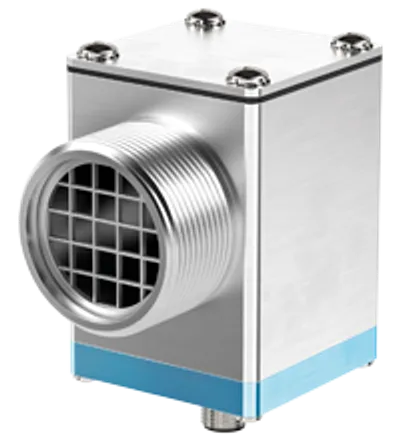

| 6100-MP-LPP-* | T192018 | gas | 10 ... 100 Hz , 1 g, all axes | 30 g, 11 ms, all axes | — |
| EPV-6100-MP-* | T192017 | gas | 1 g , 3 ... 150 Hz , all axes | 30g, 11 ms, all axes | — |

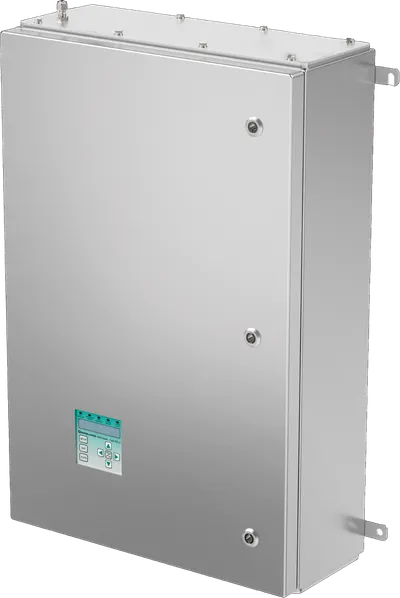

| 6100-MP-EX-* | T192010 | gas | 1 g , 10 ... 150 Hz , all axes | 15 g, 11 ms, all axes | IP66 |

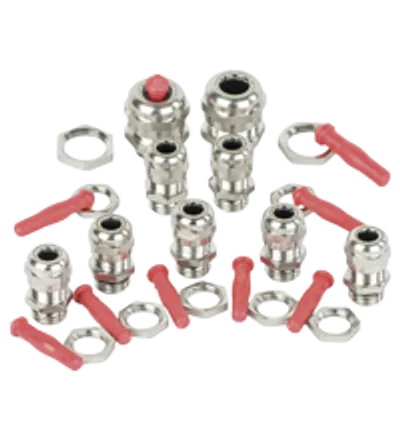

| 6500-CBLG-01-* | T180372 | — | — | — | IP68 |

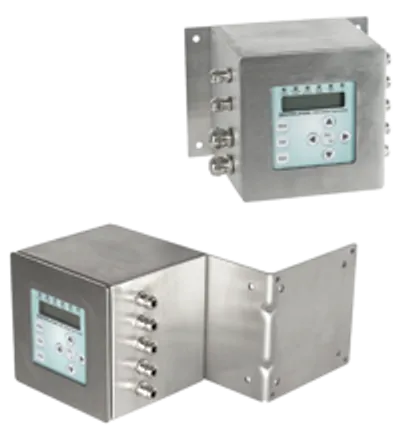

| 6500-01-*-BKT01 | T180358 | — | — | — | — |

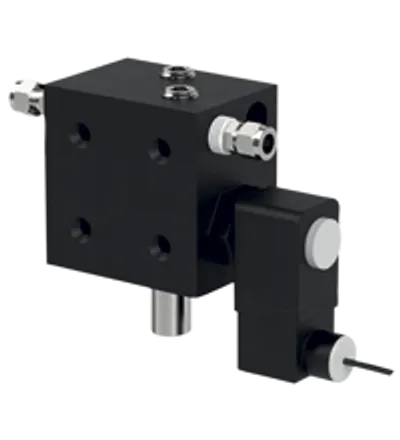

| 6500-MAN-DV | T179868 | gas or dust | — | — | IP65 (DIN connector) |

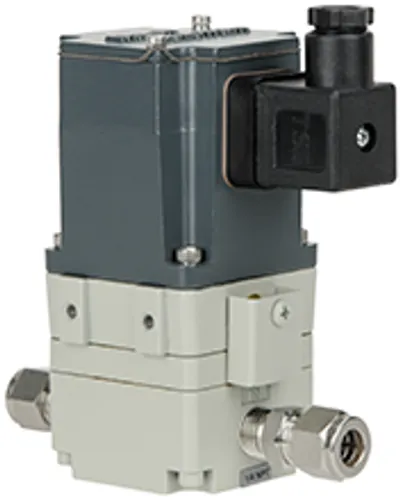

| 6500-MAN-PV-01 | T179867 | — | — | — | IP65 (DIN connector) |

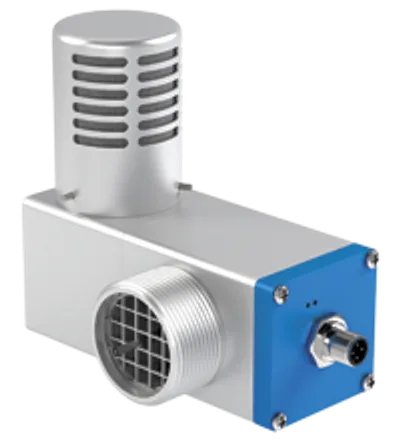

| EPV-6500-*-* | T179721 | gas, dust, gas and dust | 5 ... 100 Hz , 1 g, 12 m/s2, all axes | 30 g, 11 ms, all axes | EN 60529 |

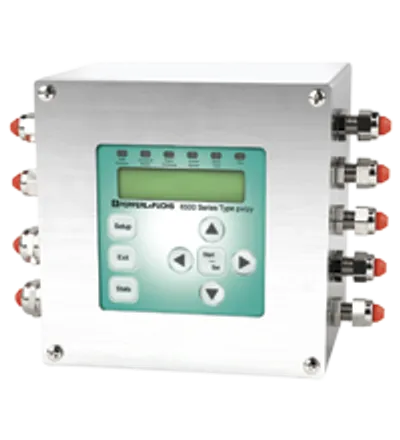

| 6500-01-*-PNO-LNO | T179869 | gas, dust, gas and dust | 5 ... 100 Hz , 1 g, 12 m/s2, all axes | 30 g, 11 ms, all axes | IP66 |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
