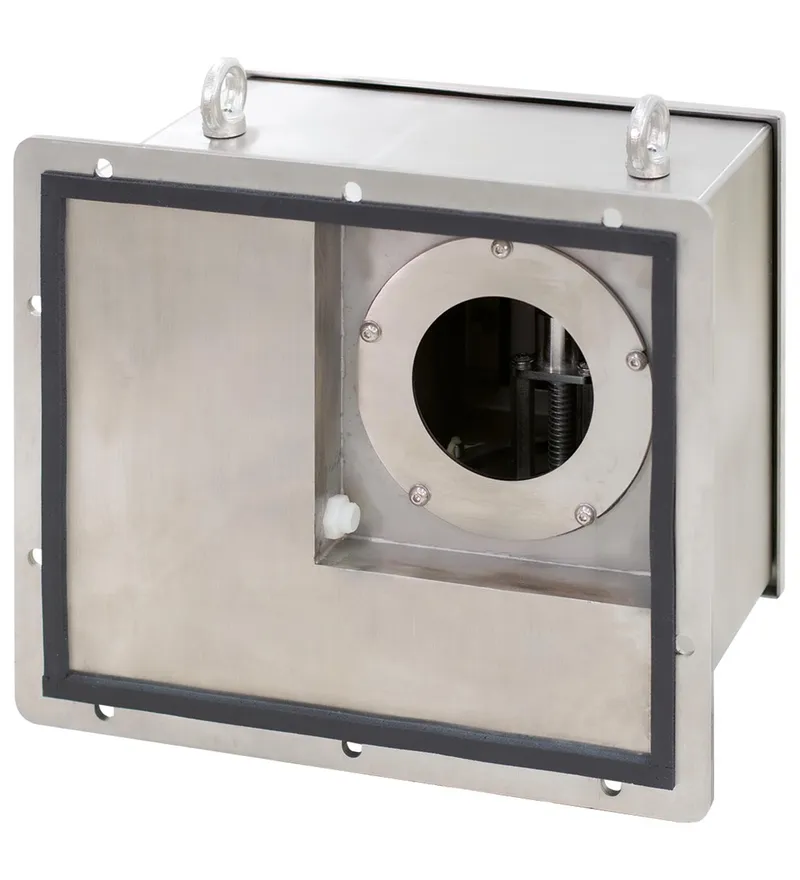

Pepperl Fuchs EPV-6100-MPM-*
6100 Series Mini Vent
- MPN
- EPV-6100-MPM-*
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs EPV-6100-MPM-*?
Flow rate: 2,000 ... 6,000 l/min
Intrinsically safe when connected to 6100 control unit
Compact footprint
6100 series purge and pressurization enclosure protection mini vent
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T221366 |
| Series | 6100 Series |
| System | Ex pxb Purge |
| Hazardous environment | gas |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Connection: Power | Intrinsically safe connection to the 6100 control unit |
| Connection: Signal | 2-wire intrinsically safe pressure switch |
| Connection: Connection | 2-wire |
Pneumatic parameters
| Protective gas supply | Clean air or inert gas |
| Safe pressure | 0.625 mbar [0.25 in wc / 6.4 mm wc) |
| Enclosure pressure | 0 ... 50 mbar (0 ... 20.1 in wc / 0 ... 510.5 mm wc) |
| Flow rate for leakage compensation | depends on enclosure seal based on completely sealed enclosure |
| Breaking pressure | Approx. 10 mbar (4.0 in wc)Approx. 15 mbar (6.0 in wc)Approx. 20 mbar (8.0 in wc)Approx. 30 mbar (12.1 in wc)Approx. 40 mbar (16.1 in wc) |
Directive conformity
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
| RoHS: Directive 2011/65/EU (RoHS) | EN 50581:2012 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -20 ... 80 °C (-4 ... 176 °F) |
| Relative humidity | 5 ... 95 %, non-condensing |
| Vibration resistance | EN 60068-2-6 |
| Impact resistance | EN 60068-2-27 |
Mechanical specifications
| Material | 316L stainless steel (housing) |
| Installation | -gravity dependent -air outlet, screen side must be facing down |
| Mass | 9 kg (20 lb) |
Data for application in connection with hazardous areas
| Certificate | CML 19 ATEX 1425X |
| Marking | II2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb |
| Directive conformity: Directive 2014/34/EU | EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012 |
International approvals
| IECEx approval | IECEx CML 19.0156X Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals

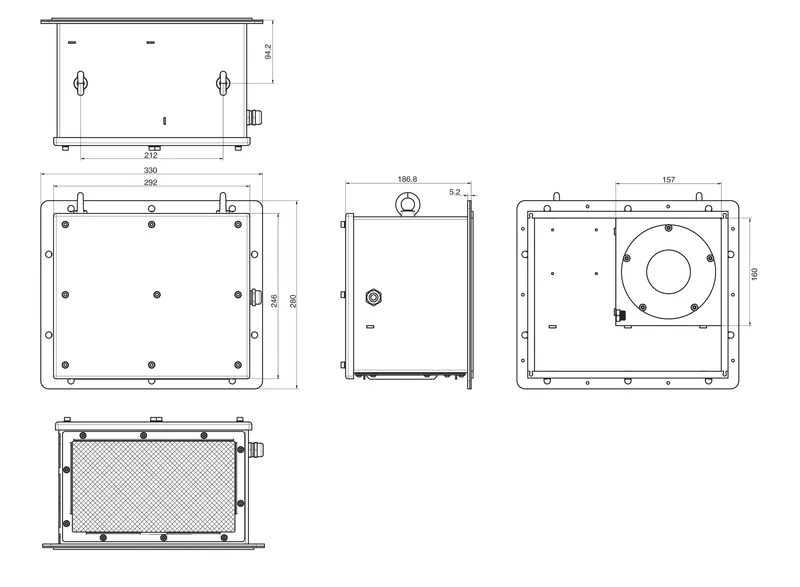

CAD & dimension drawings
