Incremental rotary encoder

MPN: ENI90PL-H*HCS*
Category: Incremental Rotary Encoders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

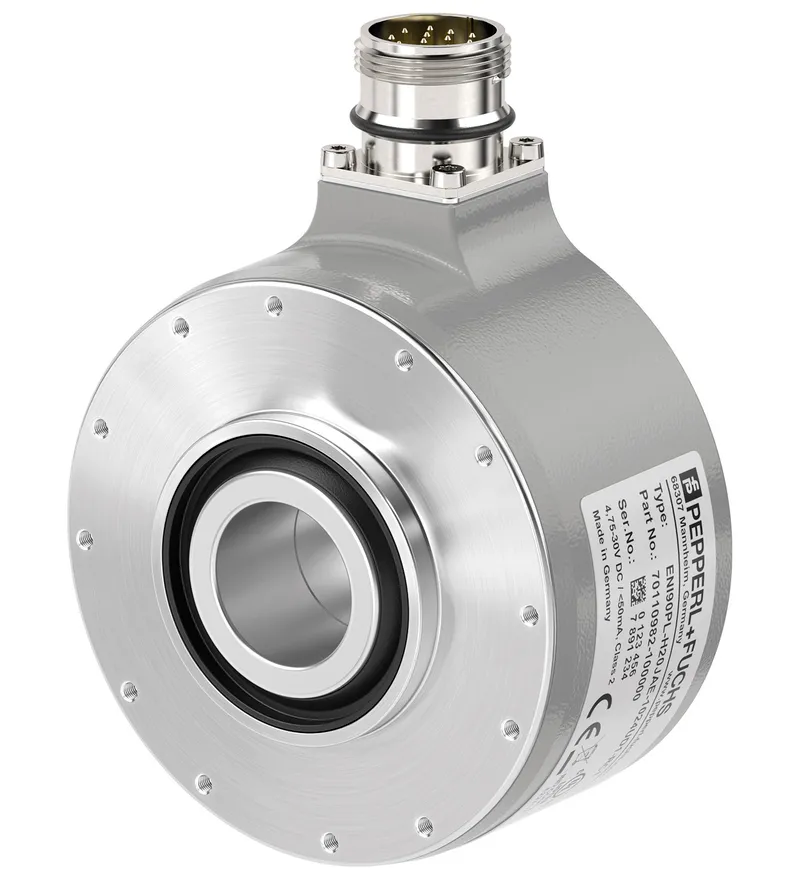

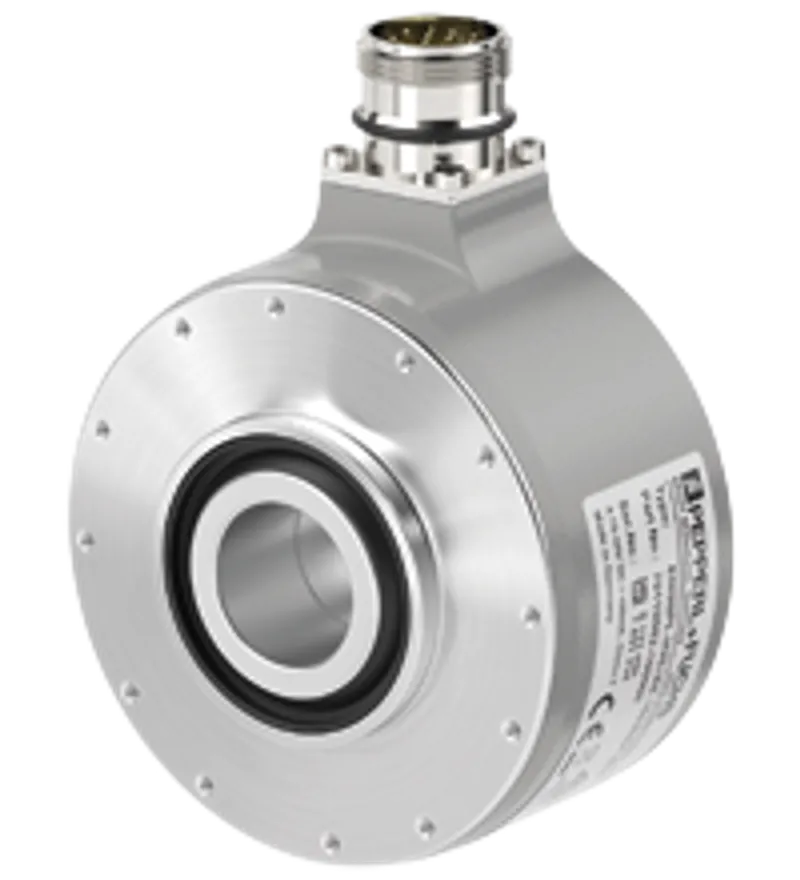

What is the Pepperl Fuchs ENI90PL-HHCS?

Housing ∅ 93 mm

Up to 5000 pulses

High current output driver HCTL

Short-circuit proof output

BlueBeam technology for ultimate precision

Hollow shaft

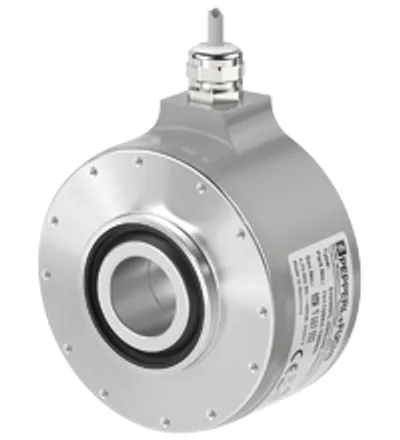

Housing ∅ 93 mm, Up to 5000 pulses, High current output driver HCTL , Short-circuit proof output, BlueBeam technology for ultimate precision, Enclosure type: 93 mm, Type of shaft: Hollow shaft, Interface: push-pull, incremental, Detection type: photoelectric sampling, Output type: HCHTL

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T223047
Detection type	photoelectric sampling
Pulse count	max. 5000
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Operating voltage	9 ... 30 V DC , Reverse polarity protection UB
No-load supply current	max. 100 mA I0

Output

Output type	HCHTL
Permissible cable length	max. 300 m with a wire cross section ≥0.34 mm2
Load resistor	≥ 1 kΩ
Voltage drop	high level max. UB -6 V low level max. 5 V Ud
Load current	max. per channel +/- 200 mA , short-circuit protected
Output frequency	max. 200 kHz
Rise time	≤ 2 µs
Phase position A to B: Pulse counts < 3600	90 ° ± 9 ° electrical
Phase position A to B: Pulse counts ≥ 3600	90 ° ± 25 ° electrical
Duty cycle	1/2 ± 10 %

Connection

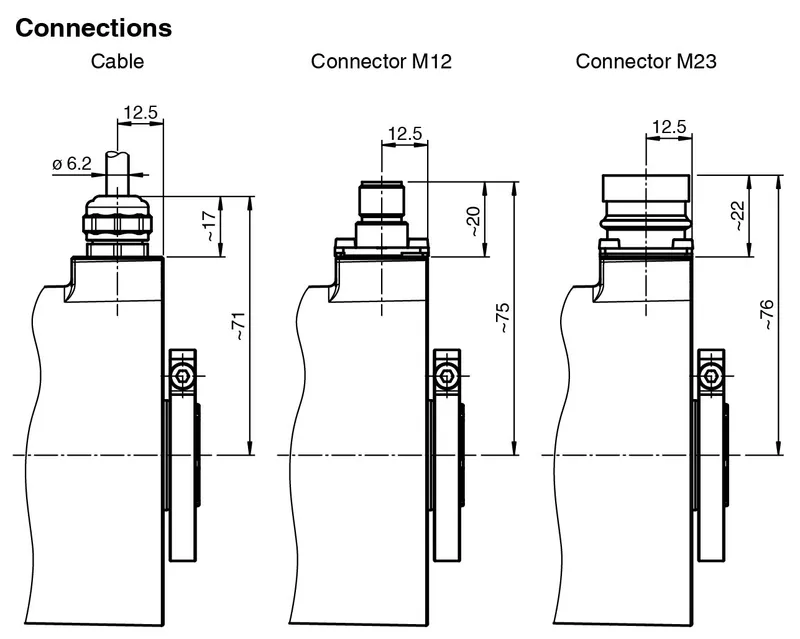

Connector	M12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin , clockwise rotation M23 connector, 12-pin , counter clockwise rotation
Cable	∅6 mm, 4 x 2 x 0.14 mm2

Standard conformity

Degree of protection	DIN EN 60529, IP65
Climatic testing	DIN EN 60068-2-78 , no moisture condensation
Emitted interference	EN IEC 61000-6-4:2019
Noise immunity	EN IEC 61000-6-2:2019
Shock resistance	DIN EN 60068-2-27, 300 g, 6 ms
Vibration resistance	DIN EN 60068-2-6, 30 g, 10 ... 2000 Hz

Approvals and certificates

UL approval

E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request

Ambient conditions

Operating temperature	-40 ... 70 °C (-40 ... 158 °F) , cable, fixed installation -10 ... 70 °C (14 ... 158 °F) , movable cable
Storage temperature	-40 ... 80 °C (-40 ... 176 °F)

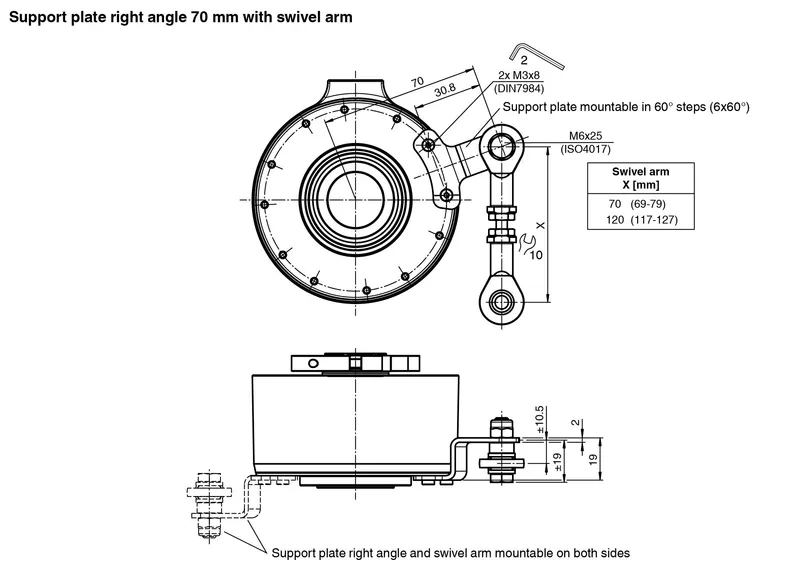

Mechanical specifications

Material: Housing	powder coated aluminum
Material: Flange	aluminum, blank
Material: Shaft	anodized aluminum
Mass	< 700 g without cable
Rotational speed	max. 6000 min -1
Starting torque	≤ 0.1 Nm
Shaft insulation	max. 2 kV (for dielectric strength version)
Shaft load: Axial	≤ 50 N
Shaft load: Radial	≤ 100 N

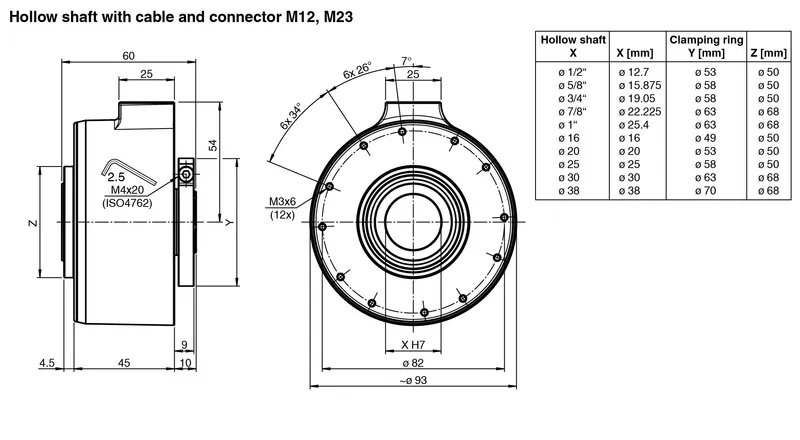

Dimensions: Length	55 mm
Dimensions: Diameter	93 mm

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Certificates (2)
