Pepperl Fuchs 6100-MP-LPP-*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Purge and Pressurization System (Ex pxb) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 6100-MP-LPP-* be shipped?
6100-MP-LPP-* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6100-MP-LPP-* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6100-MP-LPP-* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6100-MP-LPP-*, subject to availability and destination.

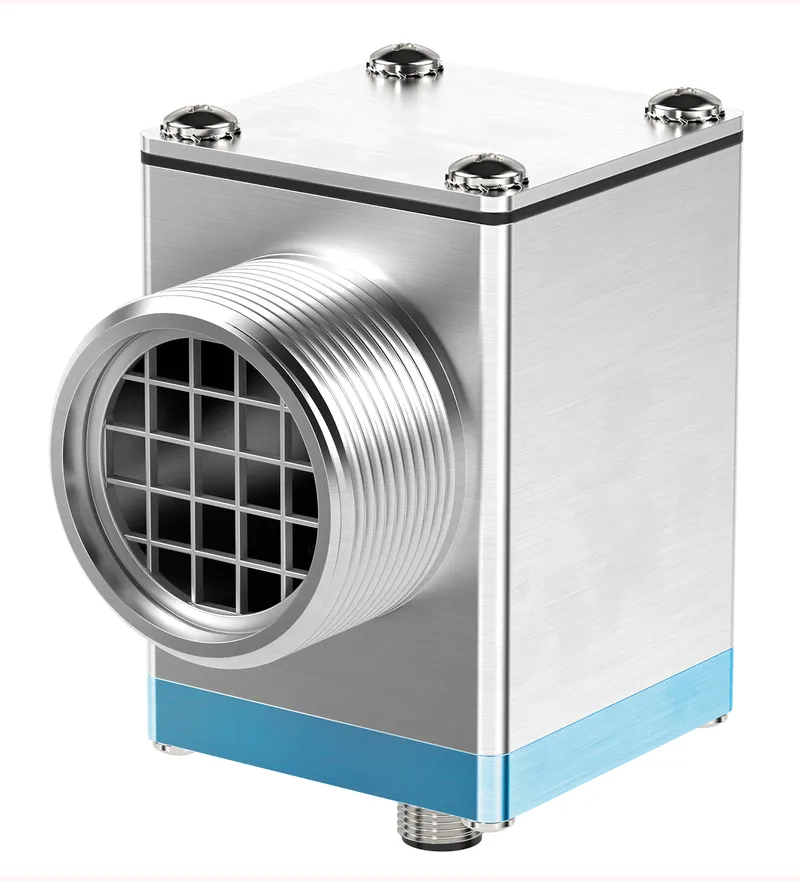

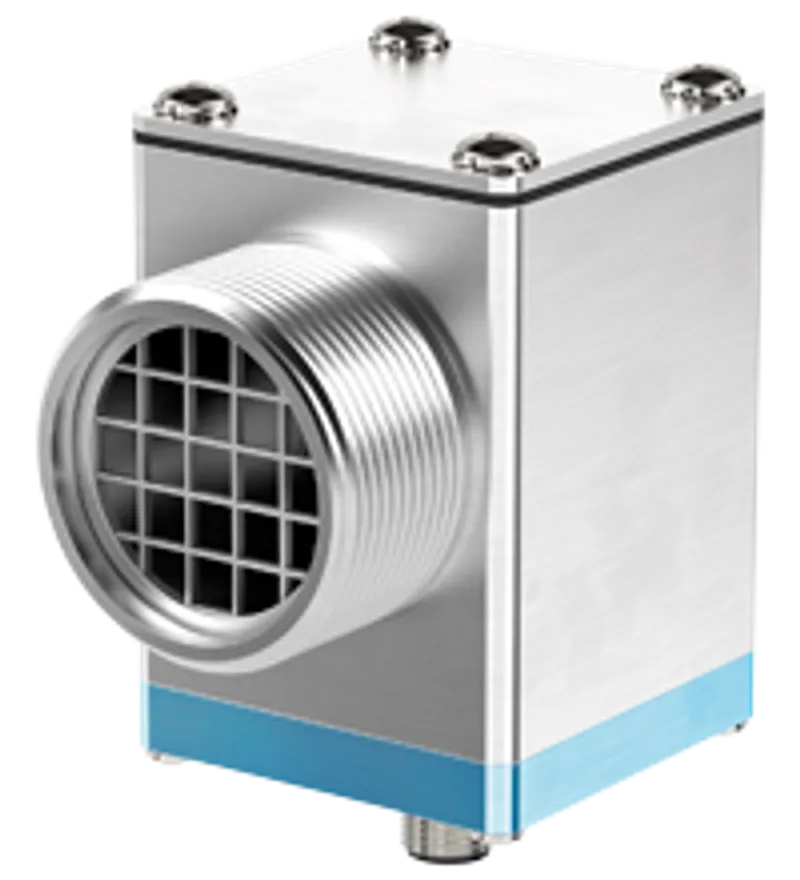

6100 series pressure sensor. 6100 series purge and pressurization system pressure sensor. Series: 6100 Series. System: Ex pxb Purge. Hazardous environment: gas. Connection: . PowerIntrinsically safe connection to the 6100 control unitSignalBus connection to 6100 control unitConnectionM12 connector, 4-pin, max length 30 m: . Power: Intrinsically safe connection to the 6100 control unit. Signal: Bus connection to 6100 control unit. Connection: M12 connector, 4-pin, max length 30 m. LED indication: power: green. Maximum pressure: 0 ... 25 mbar (0 ... 10 in wc) pressure range. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -30 ... 80 °C (-22 ... 176 °F). Relative humidity: 5 ... 95 %, noncondensing. Vibration resistance: 10 ... 100 Hz , 1 g, all axes. Impact resistance: 30 g, 11 ms, all axes. Material: 5052 anodized aluminum, 6061T6 anodized aluminum. Installation: - any orientation to enclosure- not gravity dependent. Mass: approx. 0.5 kg (1.1 lb). Dimensions: 57.2 mm x 81.1 mm x 82.6 mm (2.3" x 3.2" x 3.3"). Height146 mmWidth127.5 mmDepth82.5 mm: . Height: 146 mm. Width: 127.5 mm. Depth: 82.5 mm. Mounting: 1 1/2" NPT knockout (50.8 mm (2") hole) with sealing washer and nut. Certificate: CML 19 ATEX 1425X. Marking II 2 G Ex ib [pxb Gb] IIC T4 Gb: . Marking: II 2 G Ex ib [pxb Gb] IIC T4 Gb. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018EN 60079-2:2014EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018EN 60079-2:2014EN 60079-11:2012. IECEx approval: IECEx CML 19.0156X Ex ib [pxb Gb] IIC T4 Gb. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010
Specifications
General specifications
| Series | 6100 Series |
| System | Ex pxb Purge |
| Hazardous environment | gas |
Electrical specifications
| Connection | |
| PowerIntrinsically safe connection to the 6100 control unitSignalBus connection to 6100 control unitConnectionM12 connector, 4-pin, max length 30 m | Power |
| Power | Intrinsically safe connection to the 6100 control unit |
| Signal | Bus connection to 6100 control unit |
| Connection | M12 connector, 4-pin, max length 30 m |
Indicators/settings
| LED indication | power: green |
Pneumatic parameters
| Maximum pressure | 0 ... 25 mbar (0 ... 10 in wc) pressure range |
Directive conformity
| Electromagnetic compatibility | |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EU |
| Directive 2014/30/EU | EN 61326-1:2013 |
| RoHS | |
| Directive 2011/65/EU (RoHS)EN IEC 63000:2018 | Directive 2011/65/EU (RoHS) |
| Directive 2011/65/EU (RoHS) | EN IEC 63000:2018 |
Ambient conditions
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -30 ... 80 °C (-22 ... 176 °F) |
| Relative humidity | 5 ... 95 %, noncondensing |
| Vibration resistance | 10 ... 100 Hz , 1 g, all axes |
| Impact resistance | 30 g, 11 ms, all axes |
Mechanical specifications
| Material | 5052 anodized aluminum, 6061T6 anodized aluminum |
| Installation | - any orientation to enclosure- not gravity dependent |
| Mass | approx. 0.5 kg (1.1 lb) |

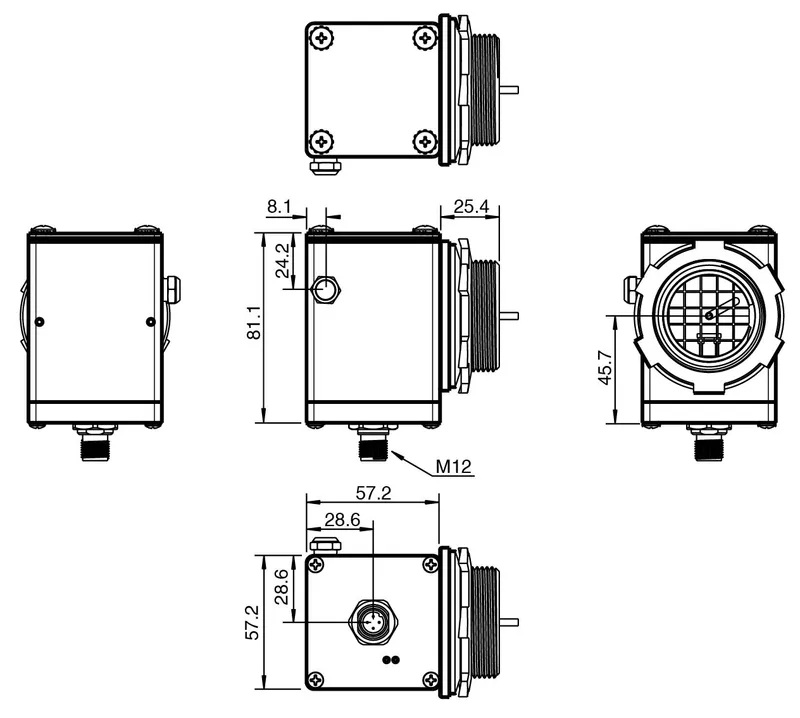

| Dimensions | 57.2 mm x 81.1 mm x 82.6 mm (2.3" x 3.2" x 3.3") |
| Height146 mmWidth127.5 mmDepth82.5 mm | Height |
| Height | 146 mm |
| Width | 127.5 mm |
| Depth | 82.5 mm |
| Mounting | 1 1/2" NPT knockout (50.8 mm (2") hole) with sealing washer and nut |
Data for application in connection with hazardous areas
| Certificate | CML 19 ATEX 1425X |
| Marking II 2 G Ex ib [pxb Gb] IIC T4 Gb | Marking |
| Marking | II 2 G Ex ib [pxb Gb] IIC T4 Gb |
| Directive conformity | |
| Directive 2014/34/EUEN IEC 60079-0:2018EN 60079-2:2014EN 60079-11:2012 | Directive 2014/34/EU |
| Directive 2014/34/EU | EN IEC 60079-0:2018EN 60079-2:2014EN 60079-11:2012 |
International approvals
| IECEx approval | IECEx CML 19.0156X Ex ib [pxb Gb] IIC T4 Gb |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010 |
