Pepperl Fuchs 6000-TSEN-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Purge and Pressurization System (Type X) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 6000-TSEN-01 be shipped?
6000-TSEN-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6000-TSEN-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6000-TSEN-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6000-TSEN-01, subject to availability and destination.

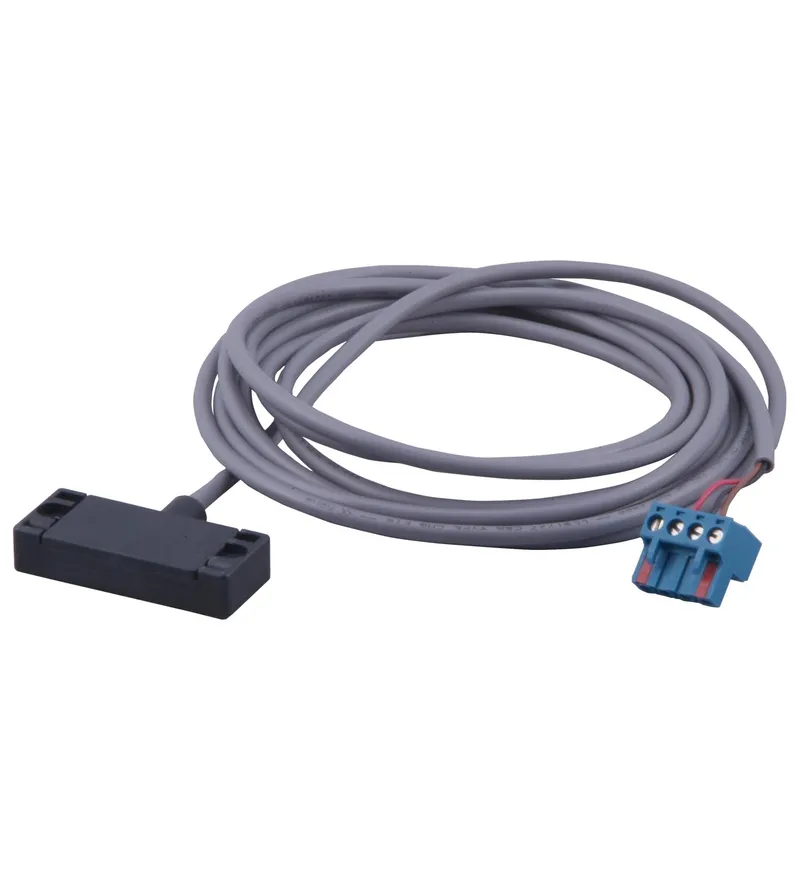

6000 Series temperature sensor. Temperature Sensor for 6000 Series Purge system. Series: 6000 Series. System: Type X Purge ; Ex pxb Purge. Connection: . Power+ , - , sensors: . Power: + , - , sensors. Rated voltage: 5.5 V DC. Rated current: max. 10 mA. Open loop voltage: 9.6 V. Distance: 3 m from 6000 control unit 3 m from 6000-TEMP-01. Ambient temperature: -20 ... 100 °C (-4 ... 212 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Relative humidity: < 95 % non-condensing. Vibration resistance: 1 g , 10 ... 100 Hz , all axes. Impact resistance: 30 g, 11 ms, all axes. Housing material: Ryton BR III BL. Degree of protection: IP65. Cable: Gray PVC. Diameter5.03 mm2Wire gauge22 AWG: . Diameter: 5.03 mm2. Wire gauge: 22 AWG. Mass: approx. 110 g. Dimensions: 50 mm x 25 mm x 5 mm. Mounting: panel or DIN rail mounting. EU-type examination certificate: UL/Demko 07 ATEX 0705753X. UL approval: File no: E184741. cULusFile no: E184741: . cULus: File no: E184741. IECEx approval: IECEx UL 08.0003X
Specifications
General specifications
| Series | 6000 Series |
| System | Type X Purge ; Ex pxb Purge |
Electrical specifications
| Connection | |
| Power+ , - , sensors | Power |
| Power | + , - , sensors |
| Rated voltage | 5.5 V DC Ur |
| Rated current | max. 10 mA Ir |
| Open loop voltage | 9.6 V |
| Distance | 3 m from 6000 control unit 3 m from 6000-TEMP-01 |
Ambient conditions
| Ambient temperature | -20 ... 100 °C (-4 ... 212 °F) |
| Storage temperature | -40 ... 100 °C (-40 ... 212 °F) |
| Relative humidity | < 95 % non-condensing |
| Vibration resistance | 1 g , 10 ... 100 Hz , all axes |
| Impact resistance | 30 g, 11 ms, all axes |
Mechanical specifications
| Housing material | Ryton BR III BL |
| Degree of protection | IP65 |
| Cable | Gray PVC |
| Diameter5.03 mm2Wire gauge22 AWG | Diameter |
| Diameter | 5.03 mm2 |
| Wire gauge | 22 AWG |
| Mass | approx. 110 g |

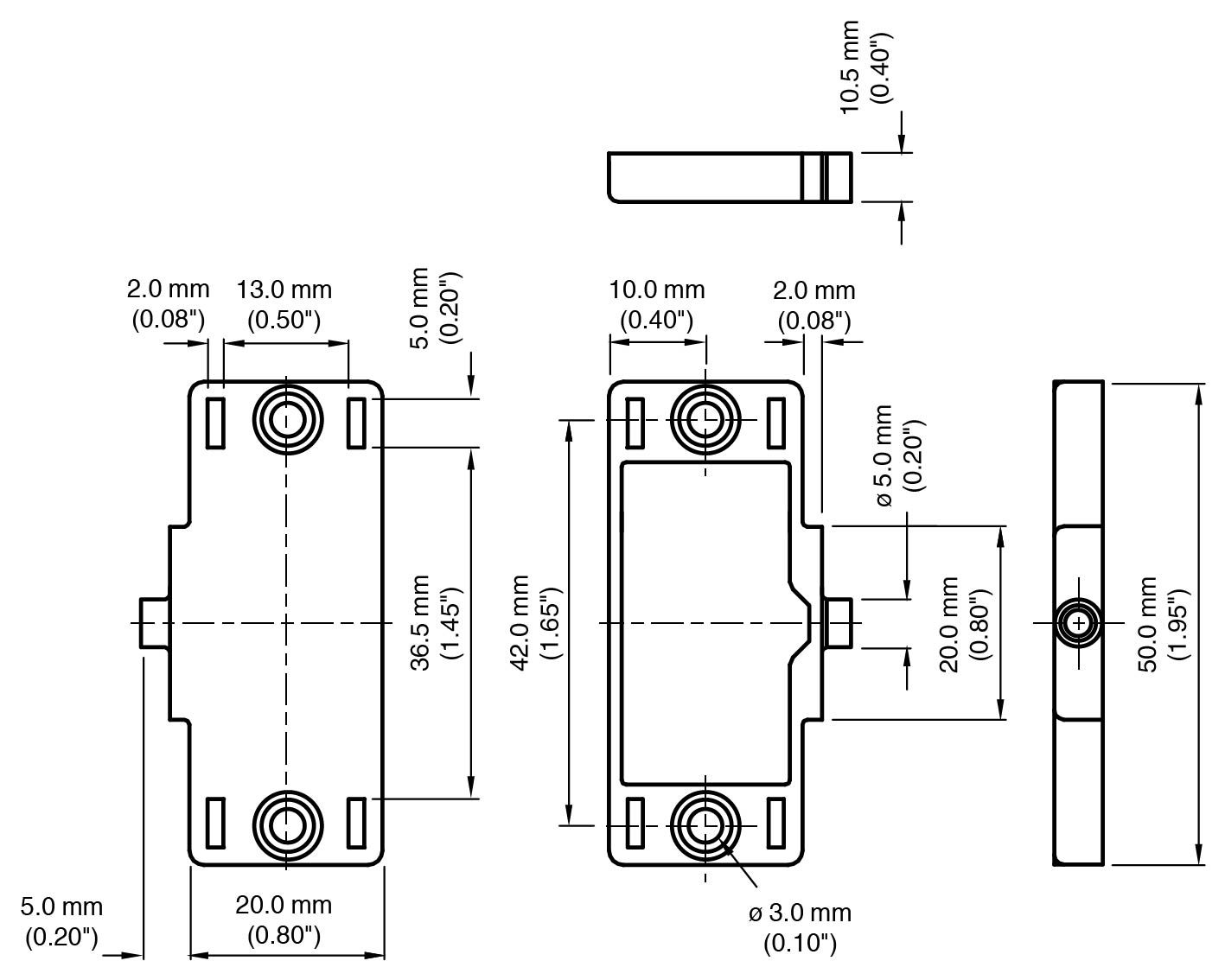

| Dimensions | 50 mm x 25 mm x 5 mm |
| Mounting | panel or DIN rail mounting |
Data for application in connection with hazardous areas
| EU-type examination certificate | UL/Demko 07 ATEX 0705753X |
International approvals
| UL approval | File no: E184741 |
| cULusFile no: E184741 | cULus |
| cULus | File no: E184741 |
| IECEx approval | IECEx UL 08.0003X |
