Pepperl Fuchs 6100-MP-EX-*

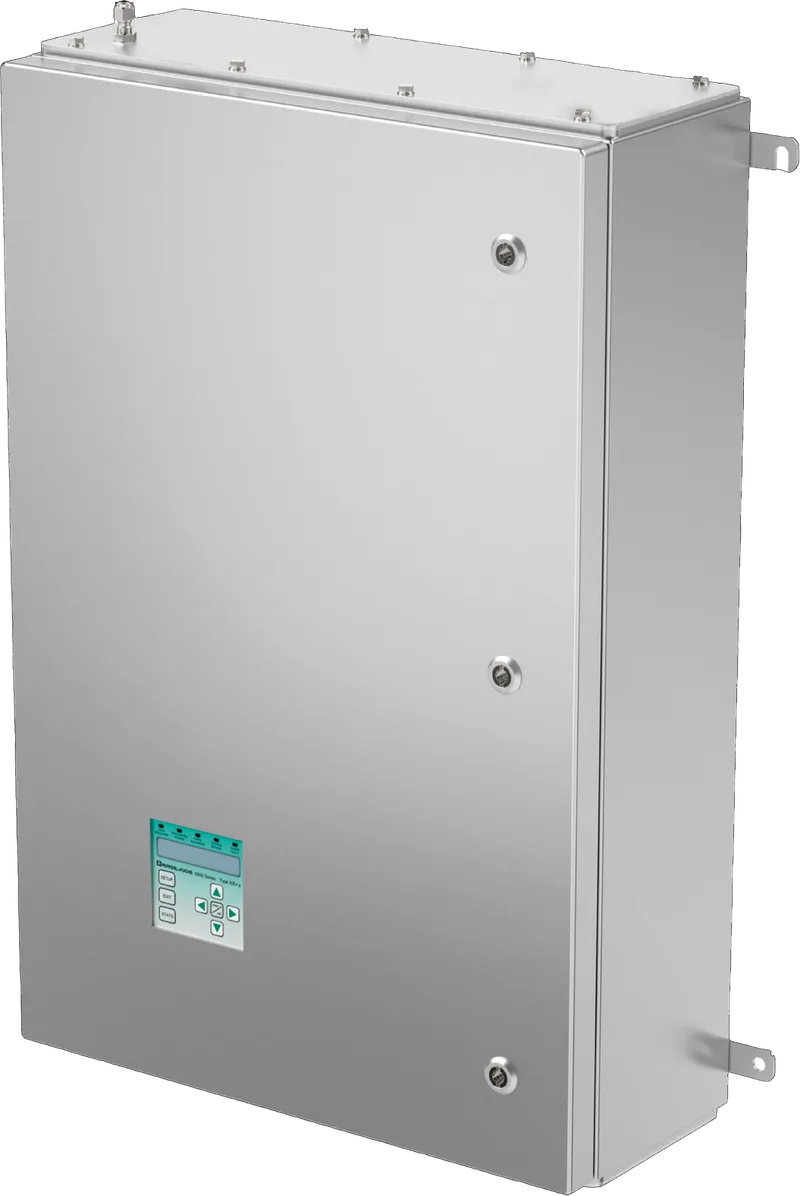

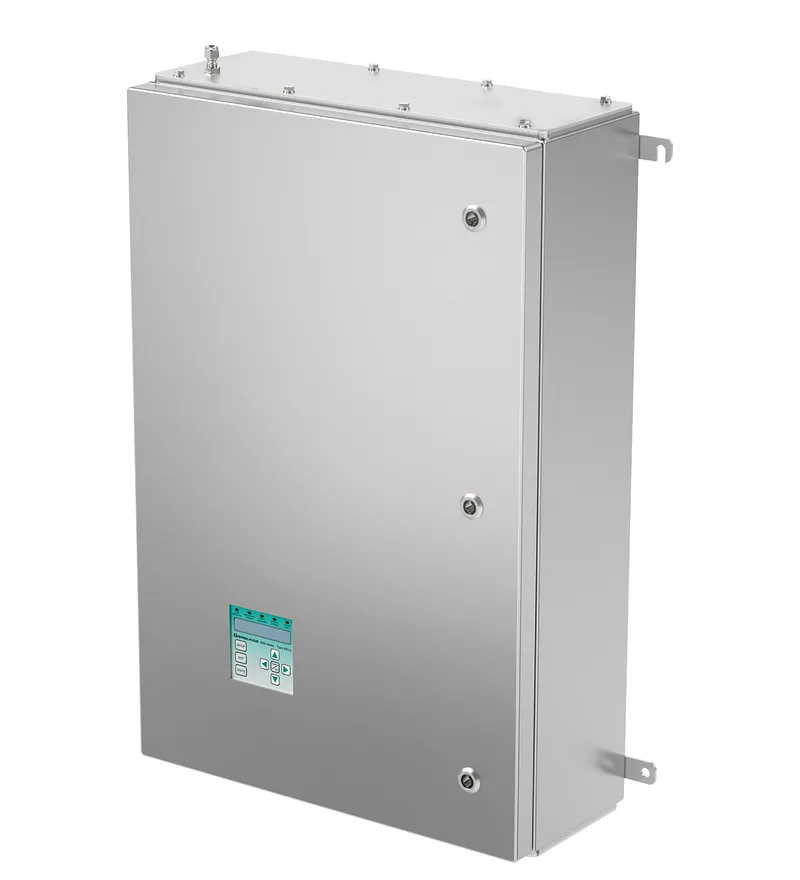

Ex pxb motor purge and pressurization control unit

MPN: 6100-MP-EX-*
Category: Purge and Pressurization System (Ex pxb)

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Pepperl Fuchs 6100-MP-EX-*?

Certified for ATEX and IECEx Zone 1

Maximum flow rate of 14,000 l/min

Intrinsically safe user interface for programming and monitoring the system

Control Unit monitors system operation and controls enclosure power

Auxiliary contact outputs for alarm or control

Multiple temperature inputs for monitoring and control

Automatic pressure compensation for excess leakage from motor

6100 series Ex pxb motor purge and pressurization system control unit

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T192010
Operating mode	manual, semi-automatic, or fully automatic - programmable
Series	6100 Series
System	Ex pxb Purge
Number of volume exchanges	4 to 19
Hazardous environment	gas
Lifecycle	Active (current Pepperl+Fuchs product)

Supply

Rated voltage

100 ... 250 V AC, 50 ... 60 Hz / 0.2 A 20 ... 30 V DC / 0.6 A Ur

Electrical specifications

Connection: Power	Ex e terminal blocks
Connection: Connection	6000-ISB DIN mounted terminal

Input

Input type

IS 1: Dedicated for 6000-TEMP-01 (optional)IS 2: Dedicated for 6100-MP-LPPInput 1: SRM, discrete input, Intrinsically SafeInput 2: SRM, discrete input, Intrinsically SafeInput 3: Dedicated for EPV-6100-MP, Flow SignalInput 4: Dedicated high pressure switch, Max Pressure Signal (optional)

Output

Output I	AUX 1
Output type	Dry contacts, SPDT
Inrush current	5 A
Contact loading	2 A at 240 V AC resistive load 2 A at 24 V DC
Output II	AUX 2
Output type	Dry contacts, SPDT
Inrush current	5 A
Contact loading	2 A at 240 V AC resistive load 2 A at 24 V DC
Output III	enclosure 1 and 2
Output type	Dry contacts (2) SPST, NO
Inrush current	72 A
Contact loading	8 A at 240 V AC / 120 V AC resistive load 8 A at 24 V DC

Indicators/settings

LED indication

Safe pressure: Blue - safe pressure is achieved Enclosure power: Green - power on; Red - power off Rapid exchange: Blue - purging is running System bypass: Yellow - bypass is activated Alarm fault: Red (blinking) - any alarm input detected; Red (solid) - fault

Pneumatic parameters

Protective gas supply	regulated and filtered air or inert gas
Pressure requirement	regulated side: 1.4 ... 8.3 bar [20 ... 120 psig) unregulated side: 4.1 ... 8.3 bar [65 ... 120 psig)
Safe pressure	0.62 mbar [0.25 in wc / 6.4 mm wc] minimum for 6100-MP-LPP-*
Purge flow and enclosure pressure rate	2000 l/m ... 14000 l/m see EPV-6100 datasheet for flow rate steps
Valve flows	pressurization valve: manual gate valvepurging valve: pilot drive angle seat valvepilot valve: intrinsically safe solenoid valve

Directive conformity

Electromagnetic compatibility: Directive 2014/30/EU	EN 61326-1:2013
RoHS: Directive 2011/65/EU (RoHS)	EN 50581:2012

Ambient conditions

Ambient temperature	0 ... 60 °C (32 ... 140 °F) Standard version-20 ... 60 °C (-4 ... 140 °F) Low temp version, no regulator version
Storage temperature	0 ... 80 °C (32 ... 176 °F) Standard version -20 ... 80 °C (-4 ... 176 °F) Low temp version, no regulator version
Relative humidity	5 ... 95 %, non-condensing
Vibration resistance	1 g , 10 ... 150 Hz , all axes
Impact resistance	15 g, 11 ms, all axes

Mechanical specifications

Connection type	Terminals
Core cross section	see manual
Degree of protection	IP66
Cable entry	3 x M16 holes, plugs that are included are not hazardous-location rated 4 x M20 holes, plugs that are included are not hazardous-location rated
Material	inlet and outlet: 1¼ inch NPTF, 316 stainless steelinternal piping: copper bulkhead fittings: 316 stainless steel (no regulator model) gate valve: bronze, Grafoil seals purging valve: 316 stainless steel, PTFE sealssolenoid valve: brasshousing: 316L stainless steelregulator: zinc (standard temp); aluminum (low temp); N/A (no regulator)filter (pneumatic): aluminumtubing (pneumatic): nylonfittings (pneumatic): nickel-plated brass
Mass	47.2 kg (104 lb)

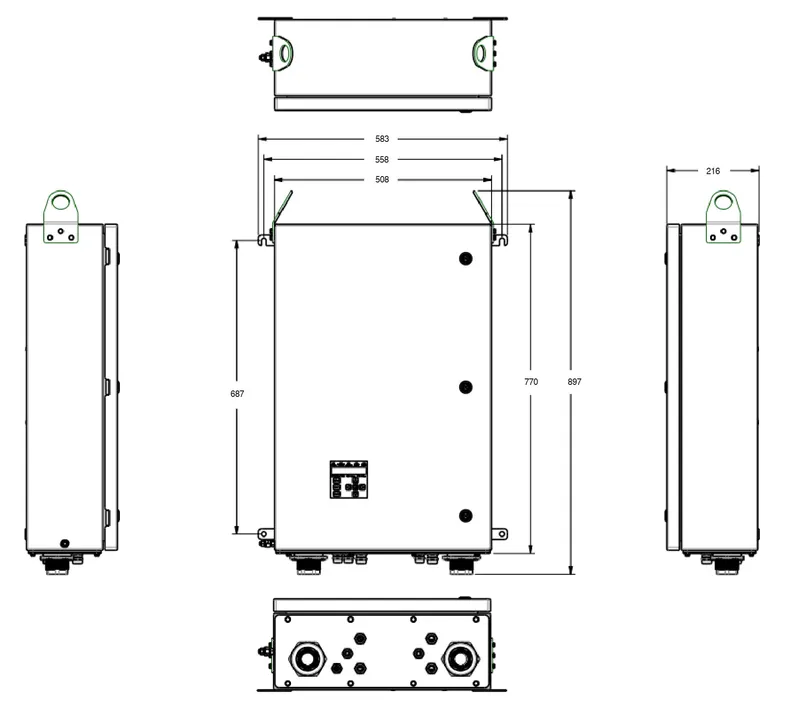

Dimensions	897 mm x 583 mm x 216 mm (35.3 in x 23.0 in x 8.5 in)
Height	897 mm (including lifting tabs at the top and the connection ports at the bottom)
Width	583 mm (including the mounting brackets)
Depth	216 mm

Data for application in connection with hazardous areas

Certificate	CML 19 ATEX 1425X
Marking	II 2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb
Directive conformity: Directive 2014/34/EU	EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012

International approvals

IECEx approval

IECEx CML 19.0156X Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb

General information

Supplementary information

EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010
