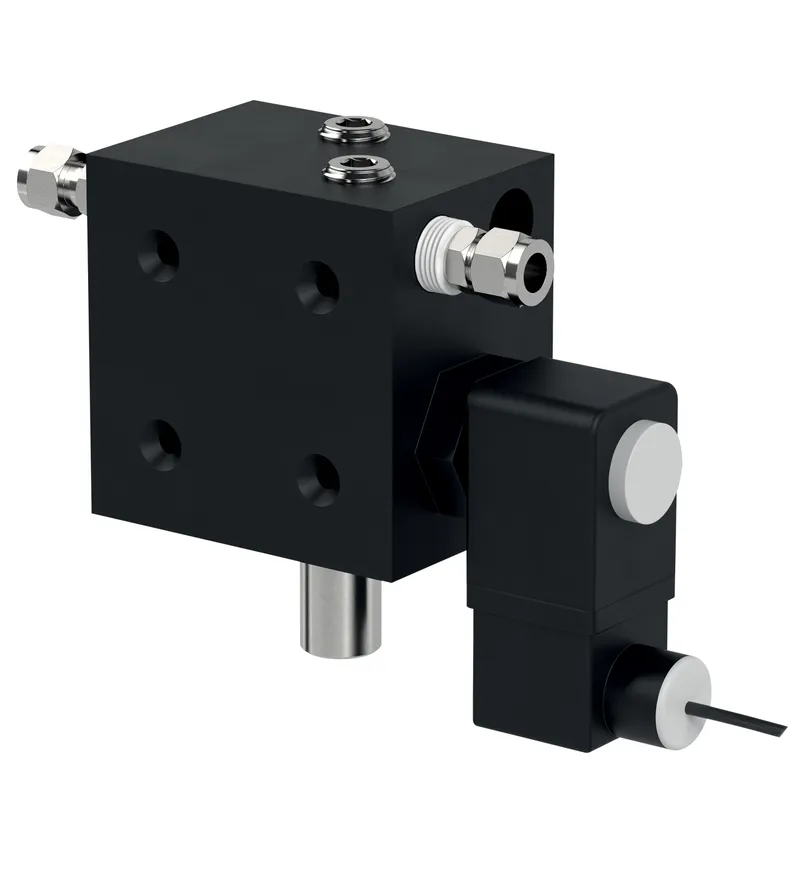

Pepperl Fuchs 6500-MAN-DV
6500 Series digital valve
- MPN
- 6500-MAN-DV
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs 6500-MAN-DV?
Suitable for Zone 1 & 21 operation, ATEX/IECEx certification
Intrinsically safe when connected to the 6500 control unitl
Manifold combines the digital valve for purging and the needle valve for pressurization in one housing
Suitable for steel or plastic tubing
Mounting hardware, pneumatic fittings and tubing included
Type Ex px purge and pressurization system
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | T179868 |
| Operating mode | automatic purging + pressurization |
| Series | 6500 |
| System | Ex pxb Purge , Ex pyb Purge |
| Hazardous environment | gas or dust |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Supply
| Rated power | Intrinsically safe supply from the 6500 control unit |
Pneumatic parameters
| Protective gas supply | instrument grade air or inert gas |
| Pressure requirement | 1.4 (20 psig) to 8.3 bar (120 psig) |
| Safe pressure | Gas: 0.87 mbar (0.35'' wc) Dust: 0.87 mbar (0.35'' wc) Gas+Dust: 0.87 mbar (0.35'' wc) |
| Purge flow rate | Digital valve : Cv (flow coefficient) = 1.4 |
| Connections | Inlet and outlet of valves 3/8"NPT, double ferrule 10mm compression fittings (included) |
Ambient conditions
| Ambient temperature | -28 ... 50 °C (-18.4 ... 122 °F) |
| Storage temperature | -28 ... 50 °C (-18.4 ... 122 °F) |
Mechanical specifications
| Connection type | 10 mm stainless steel ferrule tube fittings |
| Cable gland | I.S. connection type: PG9, DIN 43650-A connector |
| Degree of protection | IP65 (DIN connector) |
| Material | Housing: marine-grade aluminum (6082-T6 or 6061-T6)3/8" compression fittings: 316L stainless steelPressure ports: 3/8" NPT to 10mmBulkhead fitting: 10 mm fitting, 316L stainless steelMounting bolts: 1/4 - 20 (-20 =Threads per Inch), 316 stainless steelSealing washers: silicone rubberInput/Output ports: 10 mm tube compression fittings |
| Mass | 907 g (2.0 lbs) |

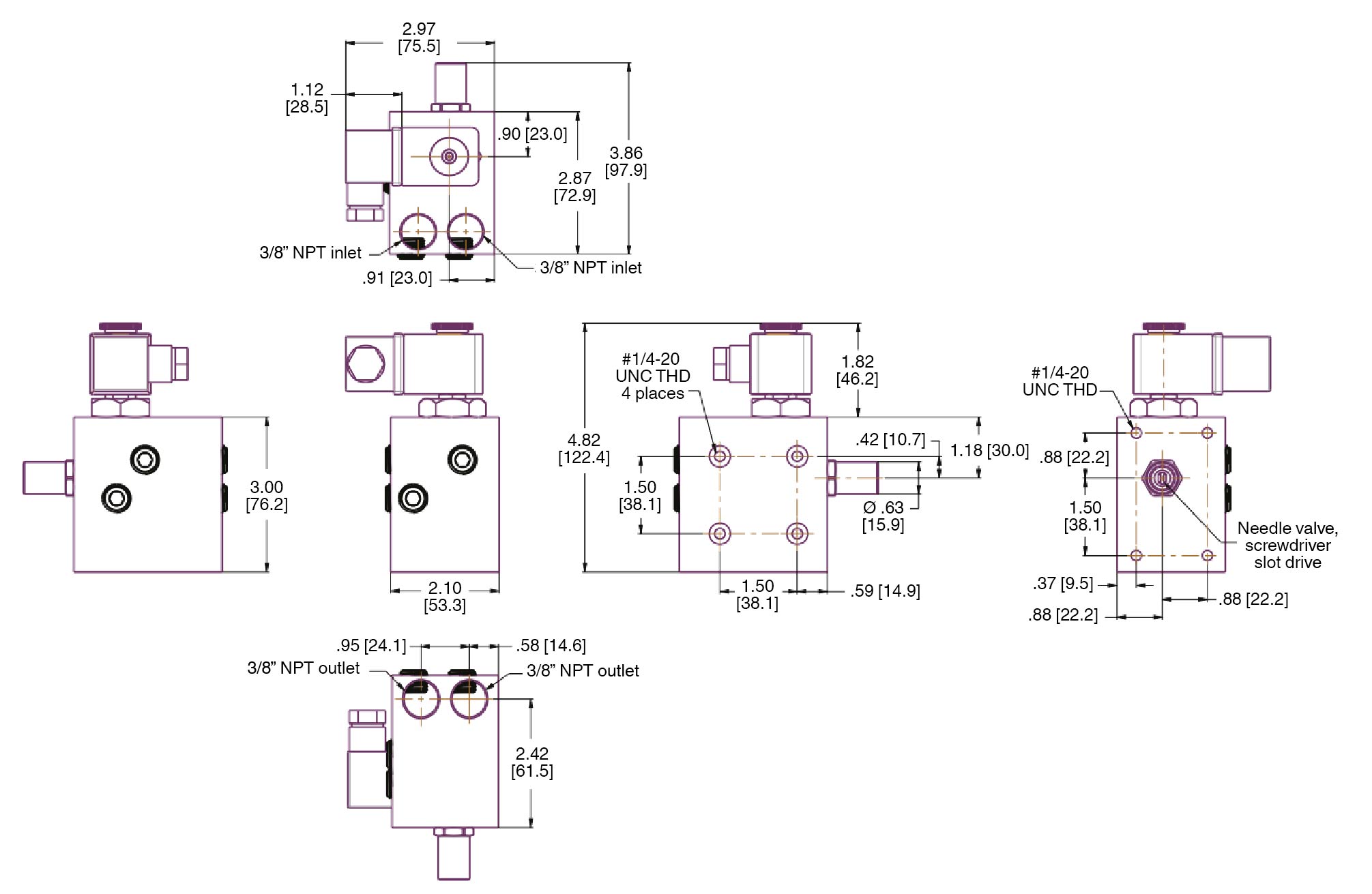

| Dimensions | 75.5 x 97.9 x 122.4 mm (2.97'' x 3.86'' x 4.82'') |
