Pepperl Fuchs 6000-TEMP-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Purge and Pressurization System (Type X) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 6000-TEMP-01 be shipped?
6000-TEMP-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6000-TEMP-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6000-TEMP-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6000-TEMP-01, subject to availability and destination.

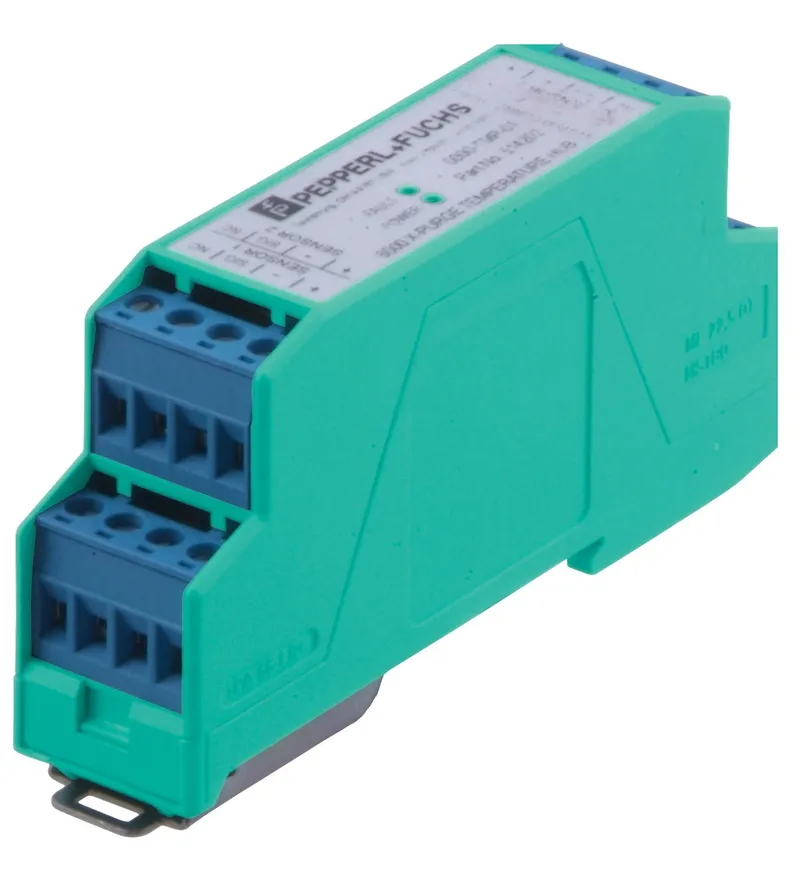

6000 Series temperature hub. Temperature Hub for 6000 Series Purge system. Series: 6000 Series. System: Type X Purge ; Ex pxb Purge. Connection: . PowerIntrinsically Safe back to 6000 control unitSignalBUS back to 6000 control unitConnectionIntrinsically Safe cabeling: . Power: Intrinsically Safe back to 6000 control unit. Signal: BUS back to 6000 control unit. Connection: Intrinsically Safe cabeling. Rated voltage: 13 V DC. Rated current: max. 10 mA. Distance: 20 m to 6000 Control Unit. Ambient temperature: -20 ... 85 °C (-4 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: < 95 % non-condensing. Vibration resistance: 1 g , 10 ... 100 Hz , all axes. Impact resistance: 30 g, 11 ms, all axes. Connection type: screw terminals. Core cross section: 12 ... 30 AWG. Housing material: Akulon S225-KS. Degree of protection: IP20. Mass: approx. 110 g. Dimensions: 99 mm x 52 mm x 23 mm. Mounting: panel or DIN rail mounting. EU-type examination certificate: UL/Demko 07 ATEX 0705753X. UL approval: File no: E184741. cULusFile no: E184741: . cULus: File no: E184741. IECEx approval: IECEx UL 08.0003X
Specifications
General specifications
| Series | 6000 Series |
| System | Type X Purge ; Ex pxb Purge |
Electrical specifications
| Connection | |
| PowerIntrinsically Safe back to 6000 control unitSignalBUS back to 6000 control unitConnectionIntrinsically Safe cabeling | Power |
| Power | Intrinsically Safe back to 6000 control unit |
| Signal | BUS back to 6000 control unit |
| Connection | Intrinsically Safe cabeling |
| Rated voltage | 13 V DC Ur |
| Rated current | max. 10 mA Ir |
| Distance | 20 m to 6000 Control Unit |
Ambient conditions
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 95 % non-condensing |
| Vibration resistance | 1 g , 10 ... 100 Hz , all axes |
| Impact resistance | 30 g, 11 ms, all axes |
Mechanical specifications
| Connection type | screw terminals |
| Core cross section | 12 ... 30 AWG |
| Housing material | Akulon S225-KS |
| Degree of protection | IP20 |
| Mass | approx. 110 g |

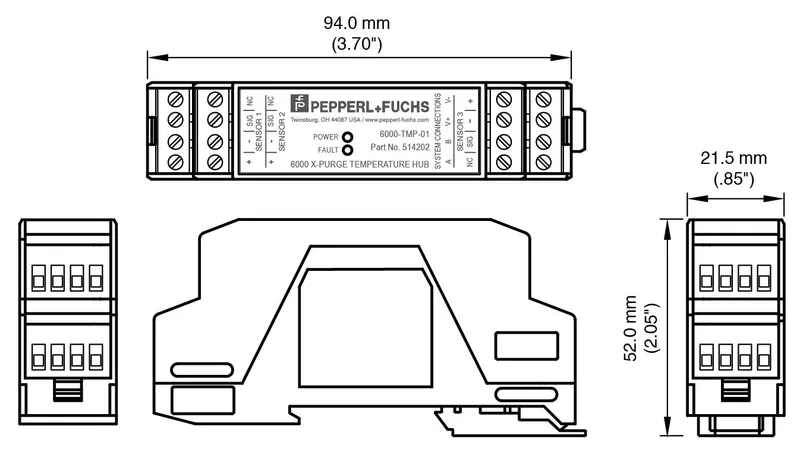

| Dimensions | 99 mm x 52 mm x 23 mm |
| Mounting | panel or DIN rail mounting |
Data for application in connection with hazardous areas
| EU-type examination certificate | UL/Demko 07 ATEX 0705753X |
International approvals
| UL approval | File no: E184741 |
| cULusFile no: E184741 | cULus |
| cULus | File no: E184741 |
| IECEx approval | IECEx UL 08.0003X |
