Control Units (Ex e) Parts
Compare Control Units (Ex e)
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Function | Operator action | Mass | Dimensions: External dimension with operating element (C1) |
|---|---|---|---|---|---|

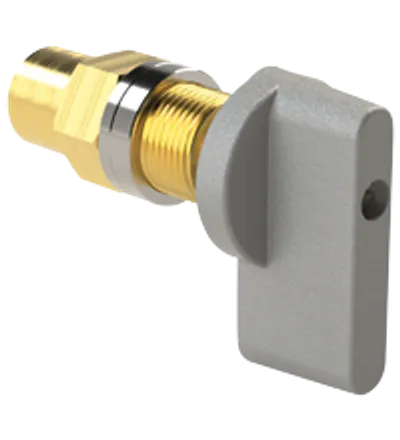

| CFM.C.R20B.K01.SP | 70182757 | Rotary actuator for 6 mm square shaft | According to internal component | 58 g | — |

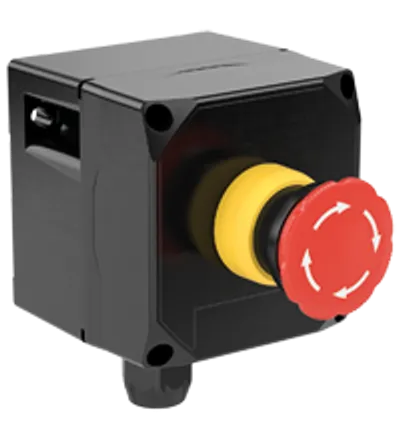

| LRP1.D.E4CX.B.1 | 70143997 | mushroom button | latching , twist to release | approx. 0.46 kg | 125.35 mm |

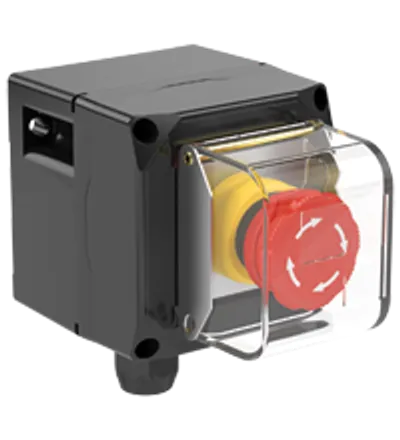

| LRP1.D.E4CZAR.K.1 | 70163599 | mushroom button | latching , twist to release | approx. 0.53 kg | 134.5 mm |

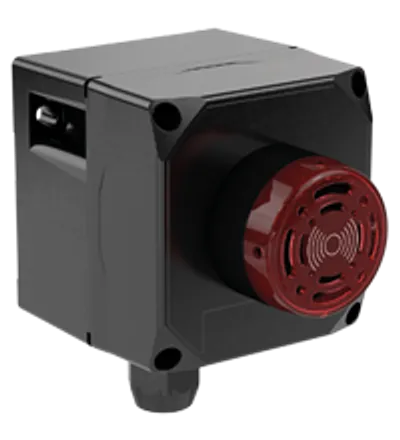

| LRP1.D.BUZRF1.B.1 | 70161746 | flashing buzzer | Sound level 60 dB at 30 cm | approx. 0.45 kg | 116 mm |

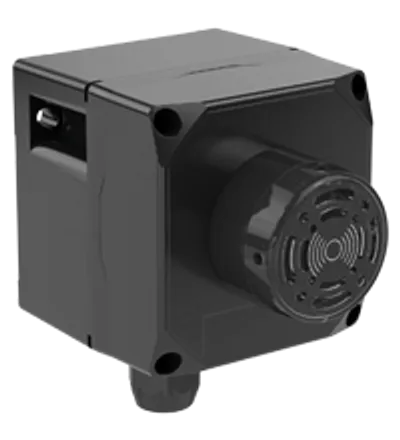

| LRP1.D.BUZKS1.B.1 | 70161745 | buzzer | Sound level 60 dB at 30 cm | approx. 0.45 kg | 116 mm |

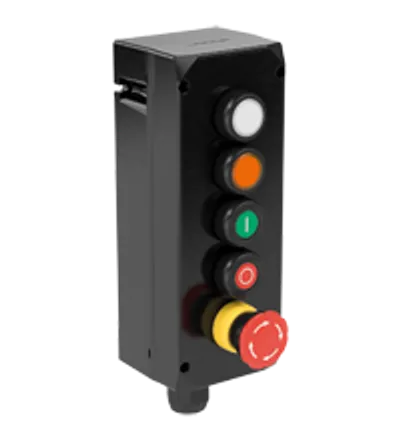

| LRP*.* | T211400 | see data table | — | see data table | — |

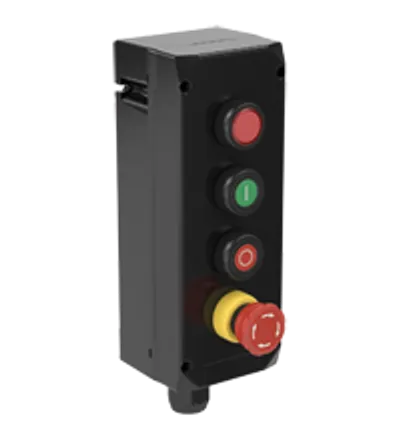

| LRP5L.D.LRLX.PGMX.PRMX.E4MX.F1 | 70160124 | LED | spring return | approx. 1.2 kg | 125.4 mm |

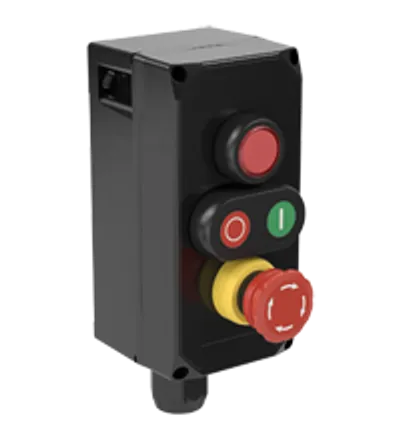

| LRP3.D.LRLX.DMMX.E4MX.F.1 | 70160123 | LED | spring return | approx. 0.9 kg | 125.4 mm |

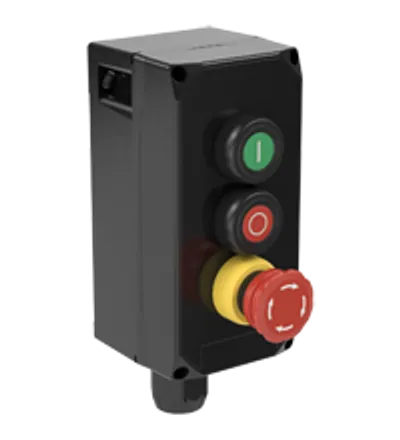

| LRP3.D.PGMX.PRMX.E4MX.F.1 | 70160122 | push button | spring return | approx. 0.89 kg | 125.4 mm |
| LRP2.D.DMMX.E4MX.E.1 | 70160121 | double pushbutton | spring return | approx. 0.69 kg | 125.4 mm |

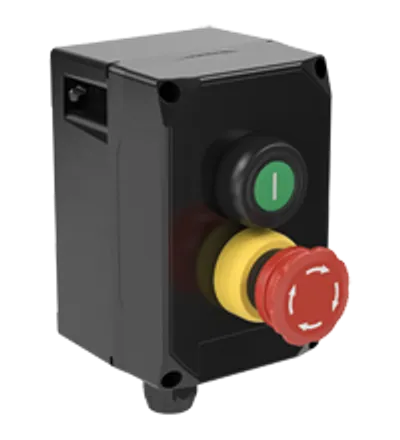

| LRP2.D.PGMX.E4MX.E.1 | 70160120 | push button | spring return | approx. 0.68 kg | 125.4 mm |

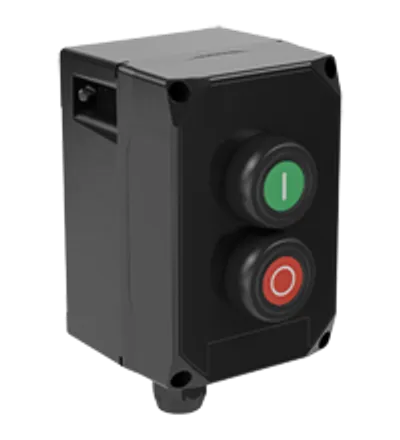

| LRP2.D.PGMX.PRMX.E.1 | 70160119 | push button | spring return | approx. 0.65 kg | 100.5 mm |

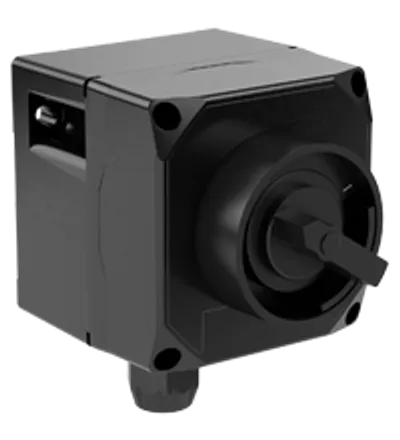

| LRP1.D.S1OX.E.1 | 70160118 | control switch, large | engage - engage | approx. 0.54 kg | 114.3 mm |

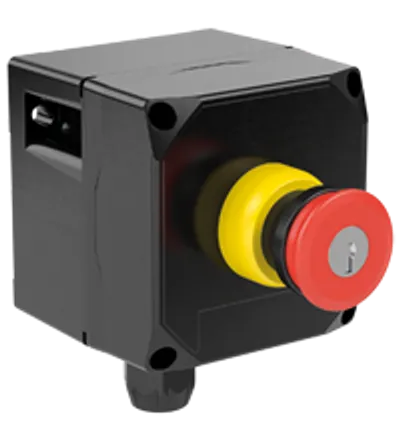

| LRP1.D.JRMX.E.1 | 70160117 | mushroom button | latching , key release | approx. 0.49 kg | 125.35 mm |
| LRP1.D.E4MZAR.E.1 | 70160116 | mushroom button | latching , twist to release | approx. 0.54 kg | 134.5 mm |

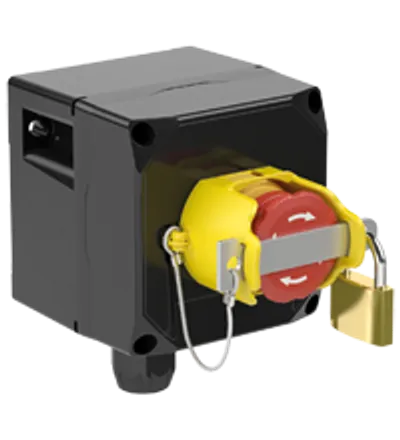

| LRP1.D.E4MZPR.E.1 | 70160115 | mushroom button | latching , twist to release | approx. 0.68 kg | 129.5 mm |
| LRP1.D.E4CX.E.1 | 70160114 | mushroom button | latching , twist to release | approx. 0.47 kg | 125.35 mm |
| LRP1.D.E4MX.E.1 | 70160113 | mushroom button | latching , twist to release | approx. 0.47 kg | 125.35 mm |

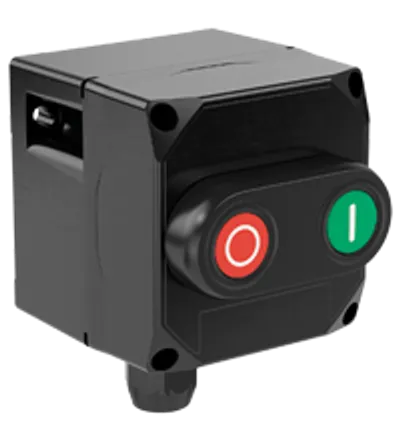

| LRP1.D.DMMX.E.1 | 70160112 | double pushbutton | spring return | approx. 0.45 kg | 100.5 mm |

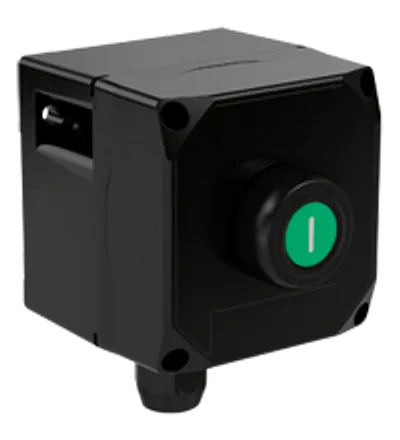

| LRP1.D.PGMX.E.1 | 70160111 | push button | spring return | approx. 0.44 kg | 100.5 mm |

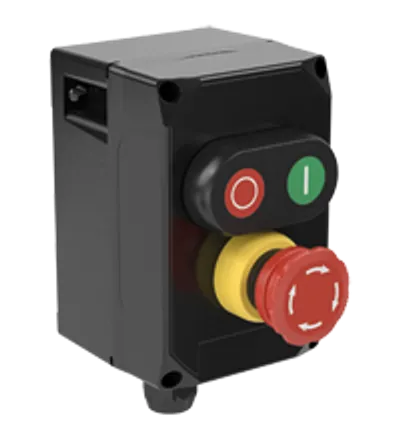

| LRP2.D.DMMX.E4MX.C.1 | 70155296 | double pushbutton | spring return | approx. 0.68 kg | 125.4 mm |
| LRP2.D.PGMX.E4MX.C.1 | 70155295 | push button | spring return | approx. 0.67 kg | 125.4 mm |
| LRP2.D.PGMX.PRMX.C.1 | 70155294 | push button | spring return | approx. 0.64 kg | 100.5 mm |
| LRP1.D.S1OX.C.1 | 70155293 | control switch, large | engage - engage | approx. 0.53 kg | 114.3 mm |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Degree of protection | IP66 |
